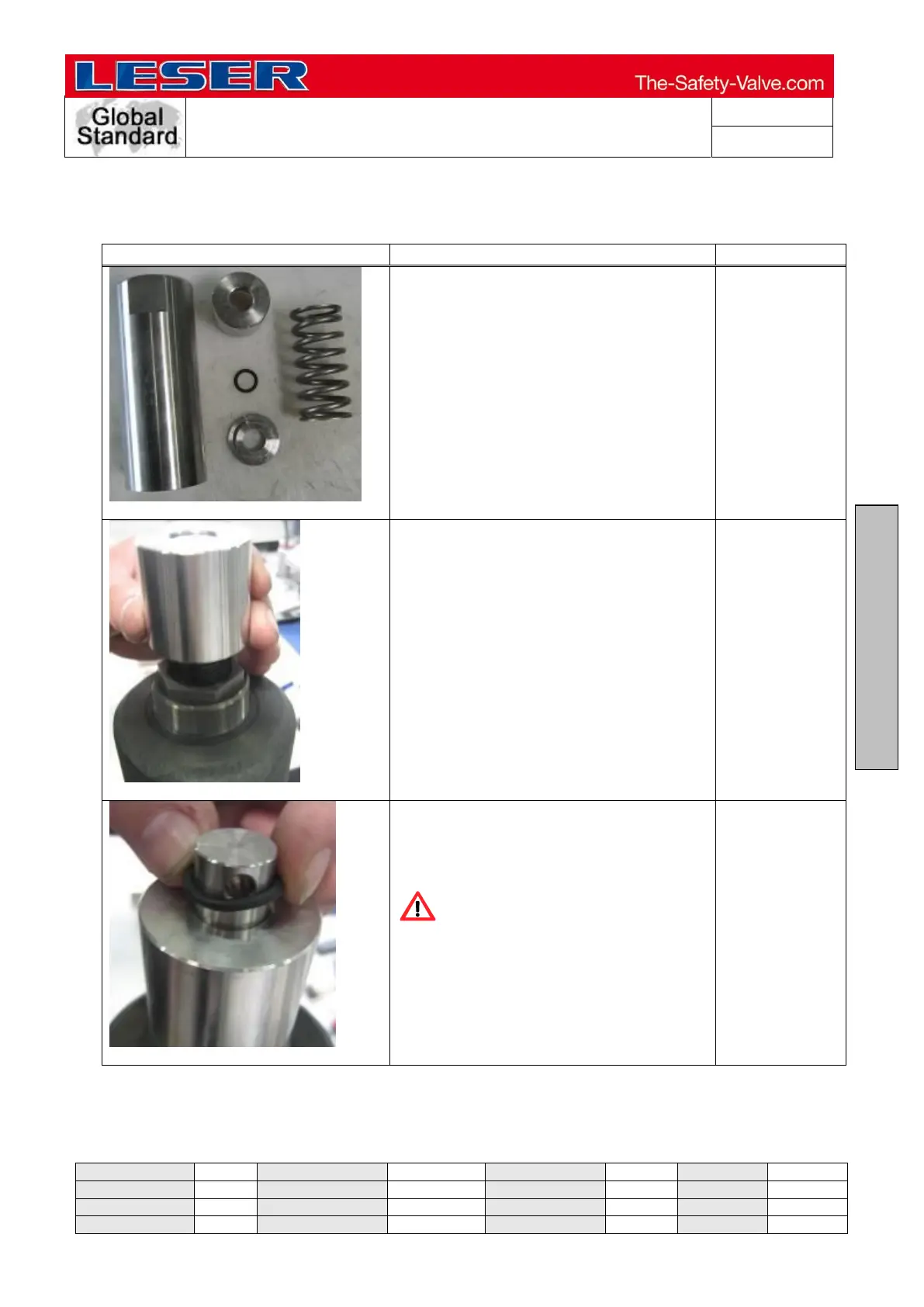

9.14 Installation of the different O-ring dampers
9.14.1 O-ring damper H2
Illustration
Description
Aids / Tools
Figure 9.14.1-1
Individual parts of the O-ring damper H2
Figure 9.14.1-2
Put the support sleeve onto the
adjusting screw.
Figure 9.14.1-3
Put O-ring onto the spindle over the
support sleeve.
The O-ring must not sit on the cross hole
or a thread, if one is present.
