Leser 526 API - Page 42

LESER Global Standard
Assembly instructions for type 526 API
LGS 4104
Page 42/45
disclosure cat.:
II
proofread:
SSt
published date:
06/14/18
effect. date:
05/18
author:
Nieh
released by:
KUW
replaces:
initial
status:
Published
resp. depart.:
IE
date of release:
06/14/18
revision No.:
2
doc. type:
LGS
change rep. No.:
NA
retention period:
10
protected
Illustration
Description
Aids / Tools

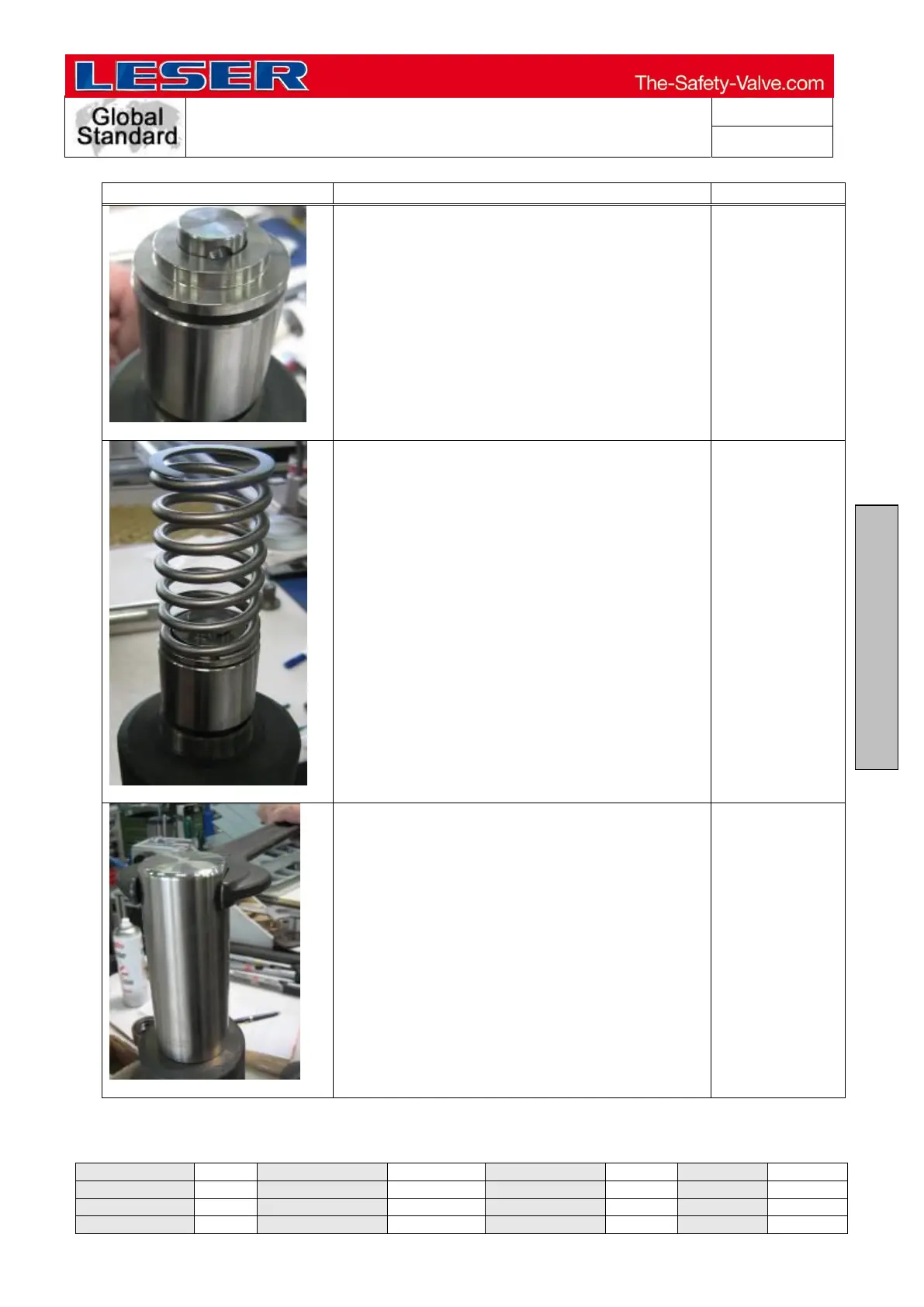

Figure 9.14.1-4
Put the counter ring onto the O-ring or support
sleeve.
Figure 9.14.1-5
Put retaining spring onto the counter ring.
Figure 9.14.1-6
Grease the cap on the thread. Screw it onto the
bonnet and tighten (torque as per LGS 3323).
Open-end
spanner
