Illustration
Description
Aids / Tools

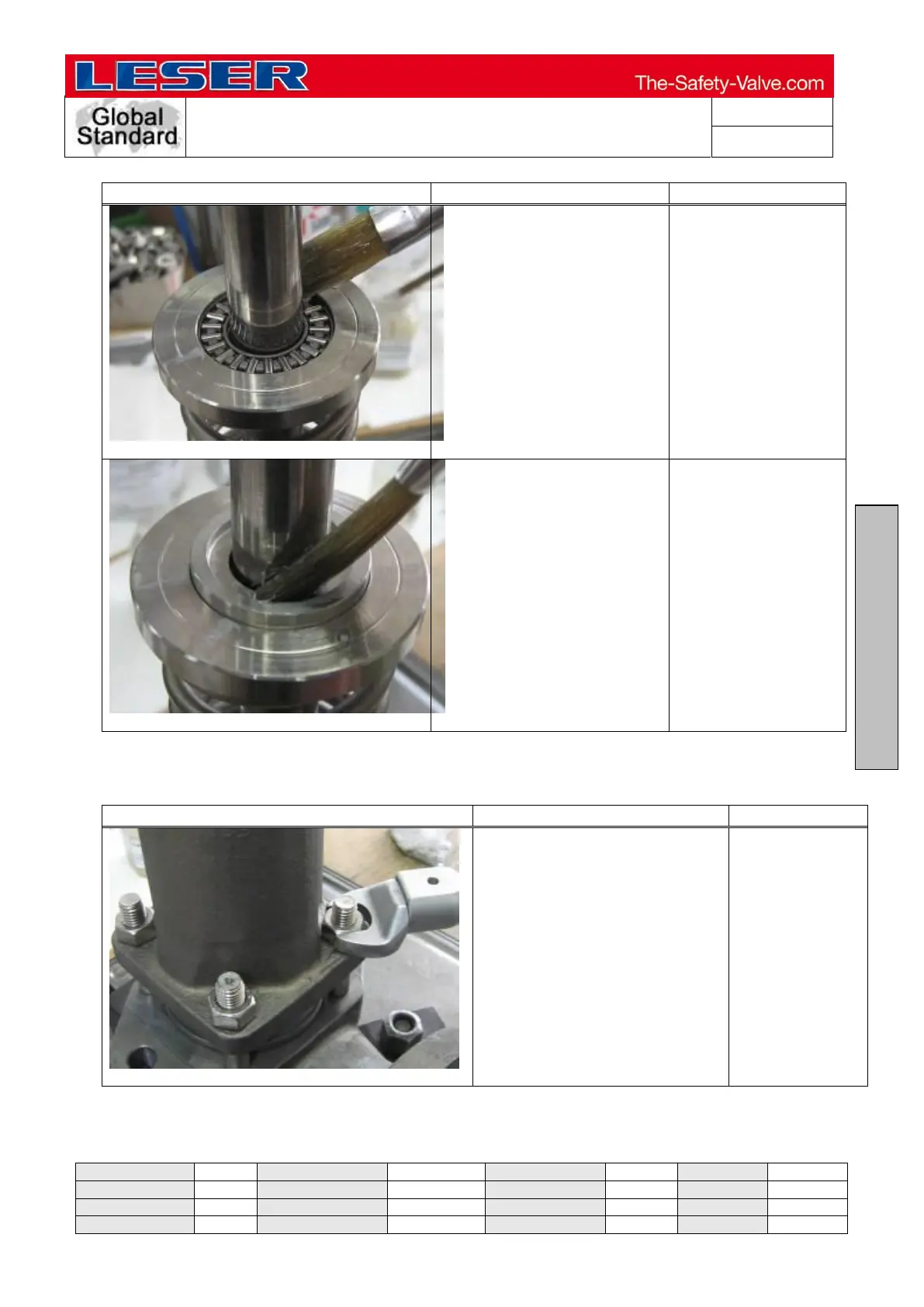

Figure 9.5.3-3
If applicable, grease the
axial needle roller on the top
spring plate.
Brush
Halocarbon
(OI-56 S / 60H)
Figure 9.5.3-4
Put the bearing washer on
the axial needle roller and
grease.
Brush
Halocarbon
(OI-56 S / 60H)
9.6 Assembly of the bonnet
Illustration
Description
Aids / Tools
Figure 9.6-1
Put the bonnet on the studs.
Screw nuts onto the studs and
tighten.
(Set torque as per LGS 3323).
Torque wrench
