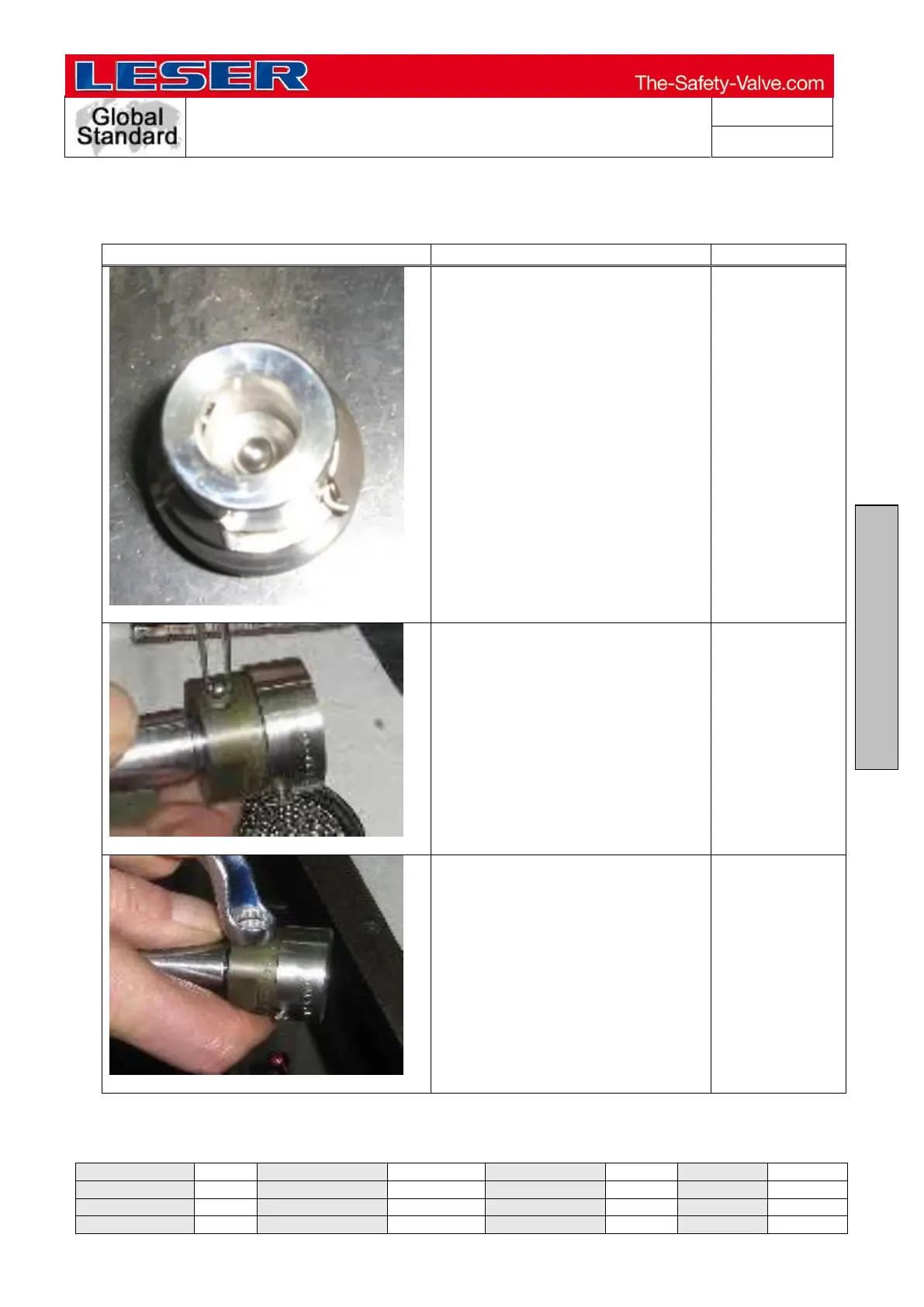

9.5 Assembly of spindle/disc assembly
9.5.1 Assembly of spindle/disc assembly (without bellows)
Illustration
Description
Aids / Tools
Figure 9.5.1-1
Insert the ball into the disc.
Figure 9.5.1-2
Push on spindle and insert small
balls into the screw opening of the
disc.
Possibly
tweezers
Figure 9.5.1-3
Screw in and tighten the clamping
screw.
Ring spanner
