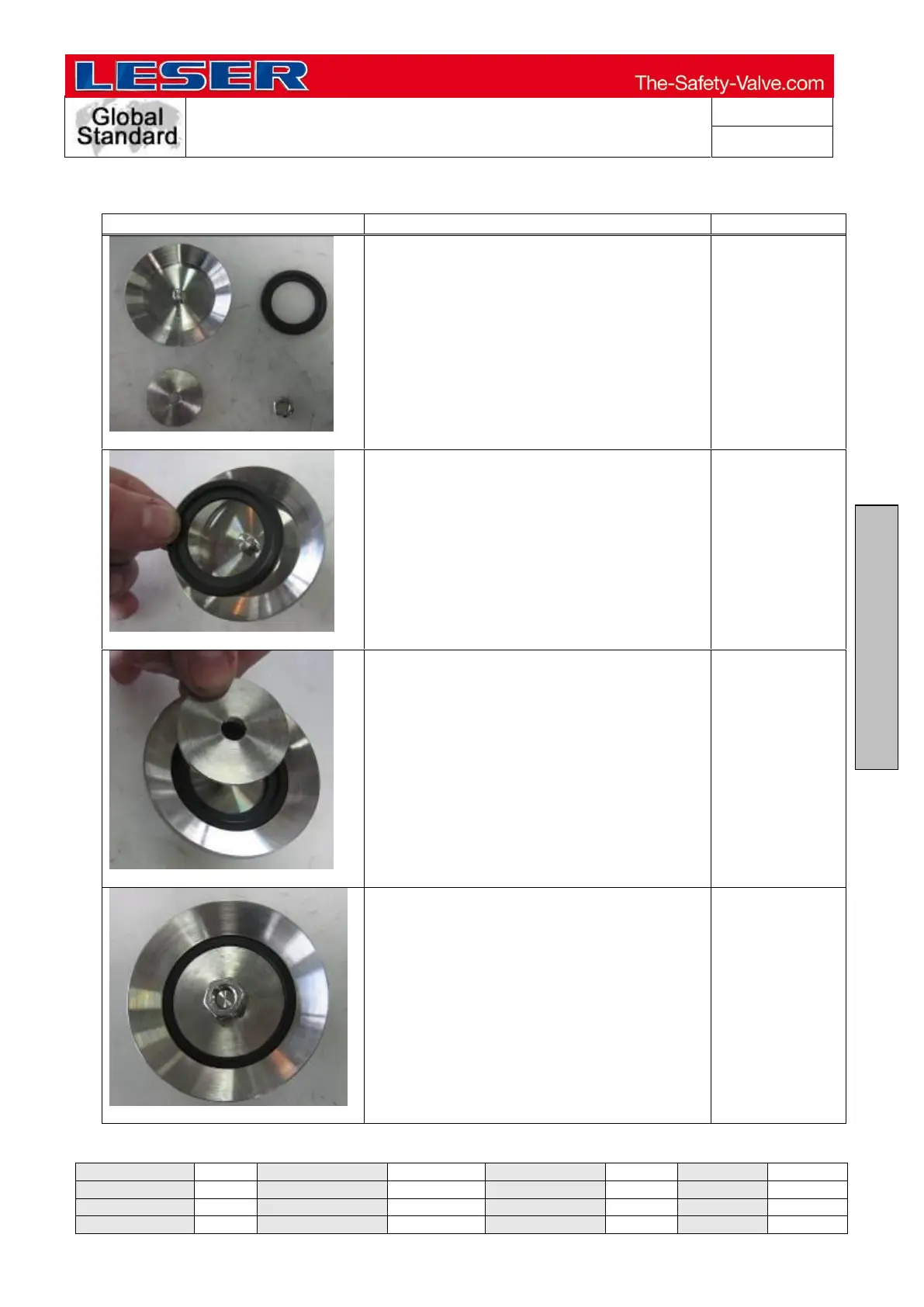

9.4.3 Disc with sealing plate
Illustration
Description
Aids / Tools
Figure 9.4.3-1
Individual parts of the disc assembly with
sealing plate
Figure 9.4.3-2
Put the sealing plate in the disc.
Figure 9.4.3-3
Put the retainer on the sealing plate.
Figure 9.4.3-4
Screw nuts onto studs and tighten (torque
as per LGS 3325 ).
Secure the nut by hitting it with a centre
punch
Emboss the marking for the sealing plate
material according to WI 3308-08 .
Torque wrench
with socket
attachment
Centre punch
Hammer
Punch
