Leser 526 API - Page 14

LESER Global Standard
Assembly instructions for type 526 API
LGS 4104
Page 14/45
disclosure cat.:
II
proofread:
SSt
published date:
06/14/18
effect. date:
05/18
author:
Nieh
released by:
KUW
replaces:
initial
status:
Published
resp. depart.:
IE
date of release:
06/14/18
revision No.:
2
doc. type:
LGS
change rep. No.:
NA
retention period:
10
protected
Illustration
Description
Aids / Tools

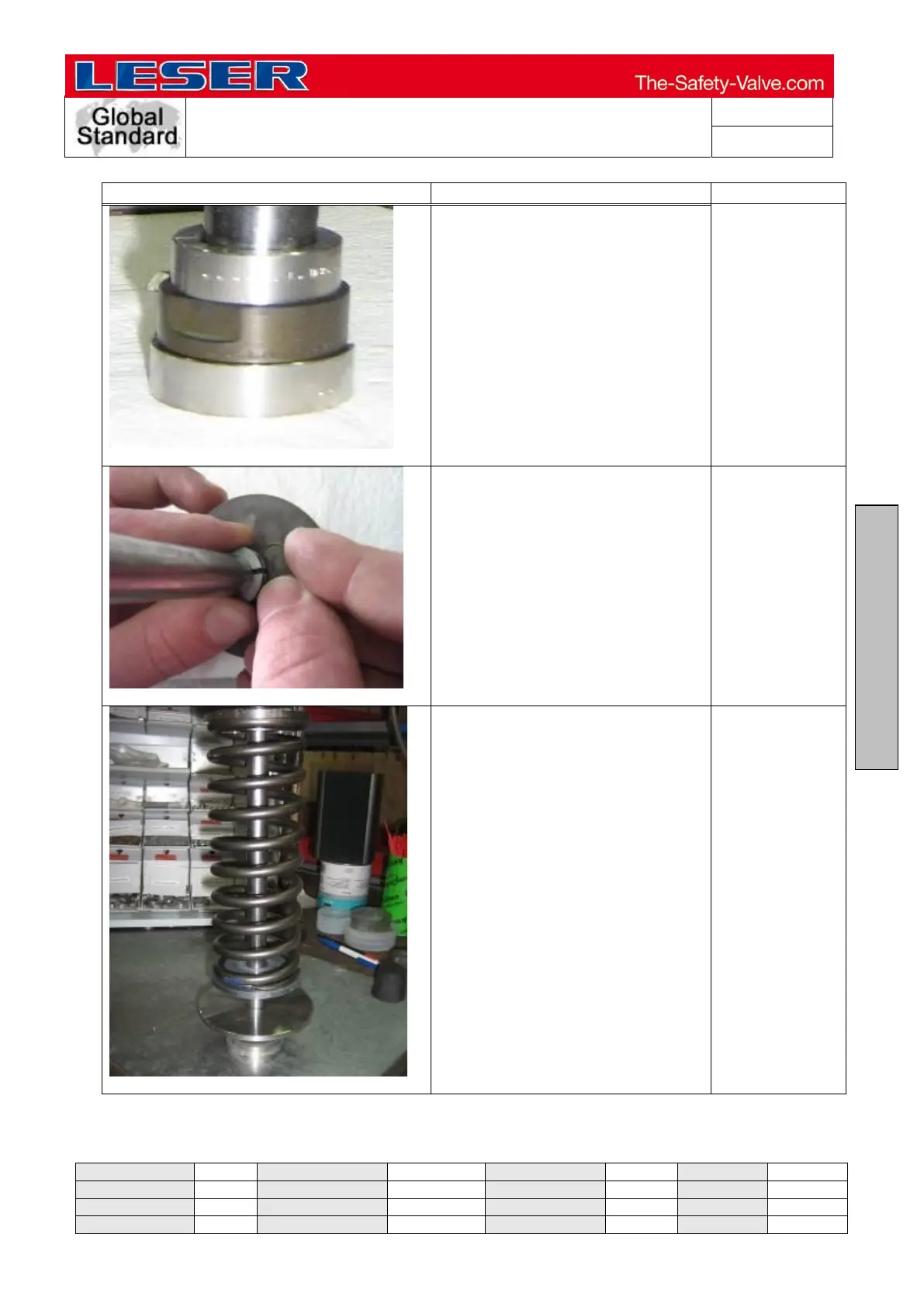

Figure 9.5.1-4
Put on lift stopper, if requested.
(variable lift stopper; possibly
determine in advance; see Chap.
10)
Figure 9.5.1-5
Push on guide washer. Put half-
washers in the recess of the
spindle and secure with a
retaining clip.
Figure 9.5.1-6
Push the lower spring plate, the
spring and the upper spring plate
onto the spindle.
