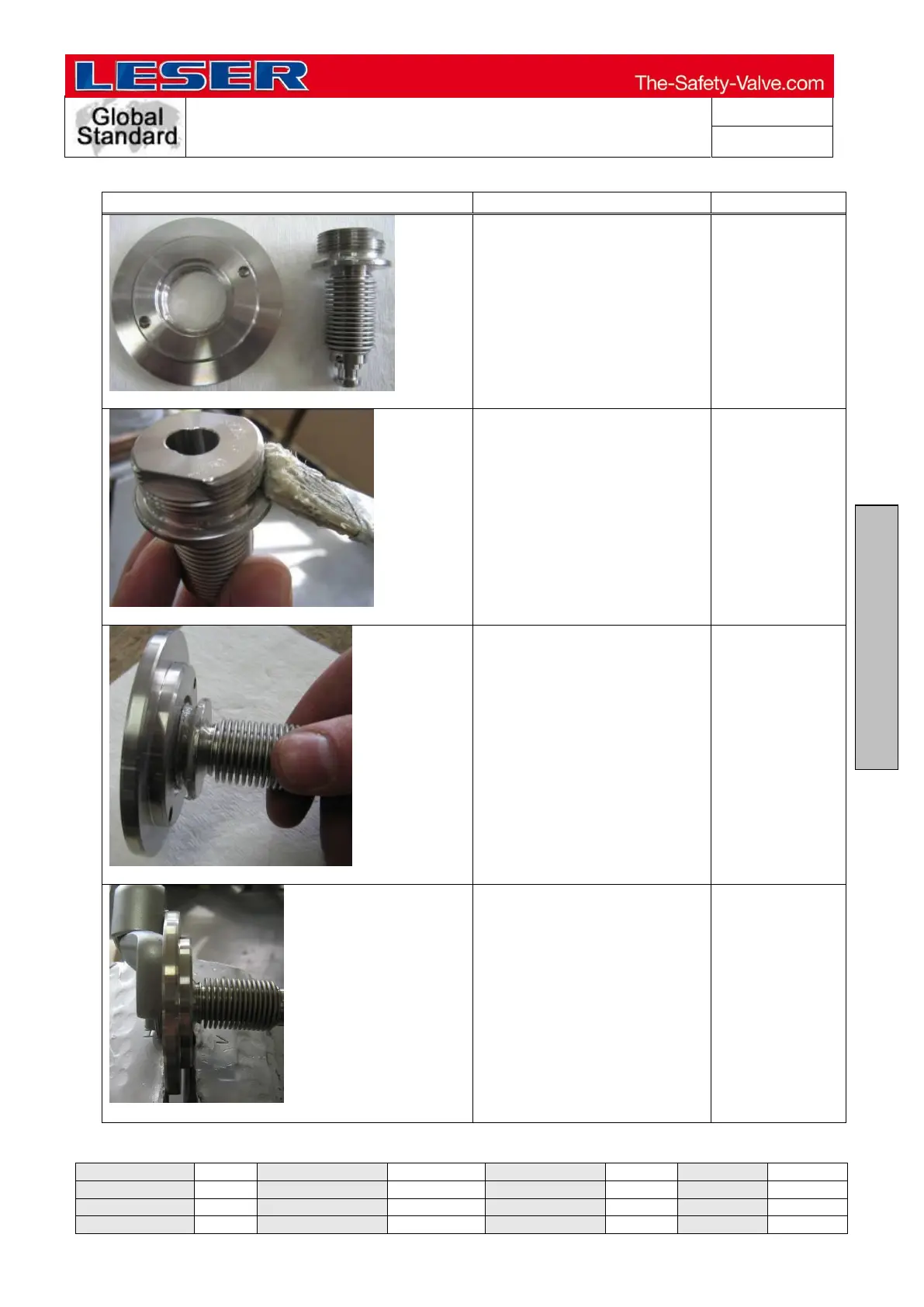

9.5.2 Assembly of spindle/disc assembly (with stainless steel bellows)
Illustration
Description
Aids / Tools
Figure 9.5.2-1
Stainless steel bellows and
guide washer
Figure 9.5.2-2
Grease the sealing surface
and thread of the bellows.
Brush
Assembly
grease
(Molykote
Paste)
Figure 9.5.2-3
Twist the guide washer onto
the bellows.
In some cases, larger
bellows have an inside
thread and are screwed on
the corresponding outside
thread of the guide washer.
Fix the guide washer in the
vice and tighten it.
(Torque as per LGS_3323)
