Leser 526 API - Section 9.1: Assembly of the Nozzle and Blow Down Ring

LESER Global Standard
Assembly instructions for type 526 API
LGS 4104
Page 6/45
disclosure cat.:
II
proofread:
SSt
published date:
06/14/18
effect. date:
05/18
author:
Nieh
released by:
KUW
replaces:
initial
status:
Published
resp. depart.:
IE
date of release:
06/14/18
revision No.:
2
doc. type:
LGS
change rep. No.:
NA
retention period:
10
protected

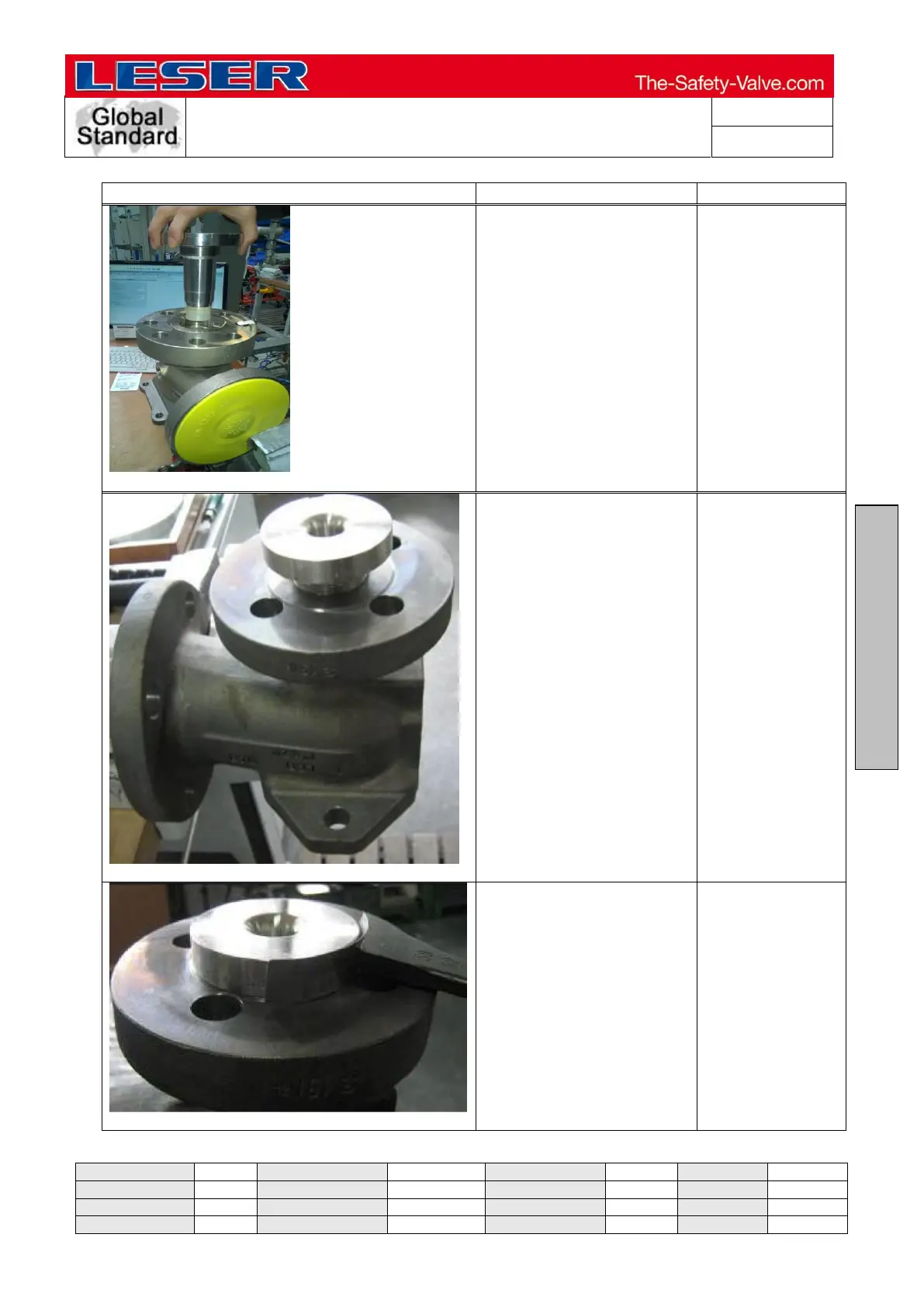

Illustration
Description
Aids / Tools
While screwing the nozzle
into the body, the
protection of the nozzle
should stay in place to
secure the sealing surface
against damage.
Figure 9.1-2
Screw nozzle into the
body.
Figure 9.1-3
Tighten nozzle with C-
spanner (put a small
protective slab between
the nozzle and C-
spanner).
C-spanner with a
nose
