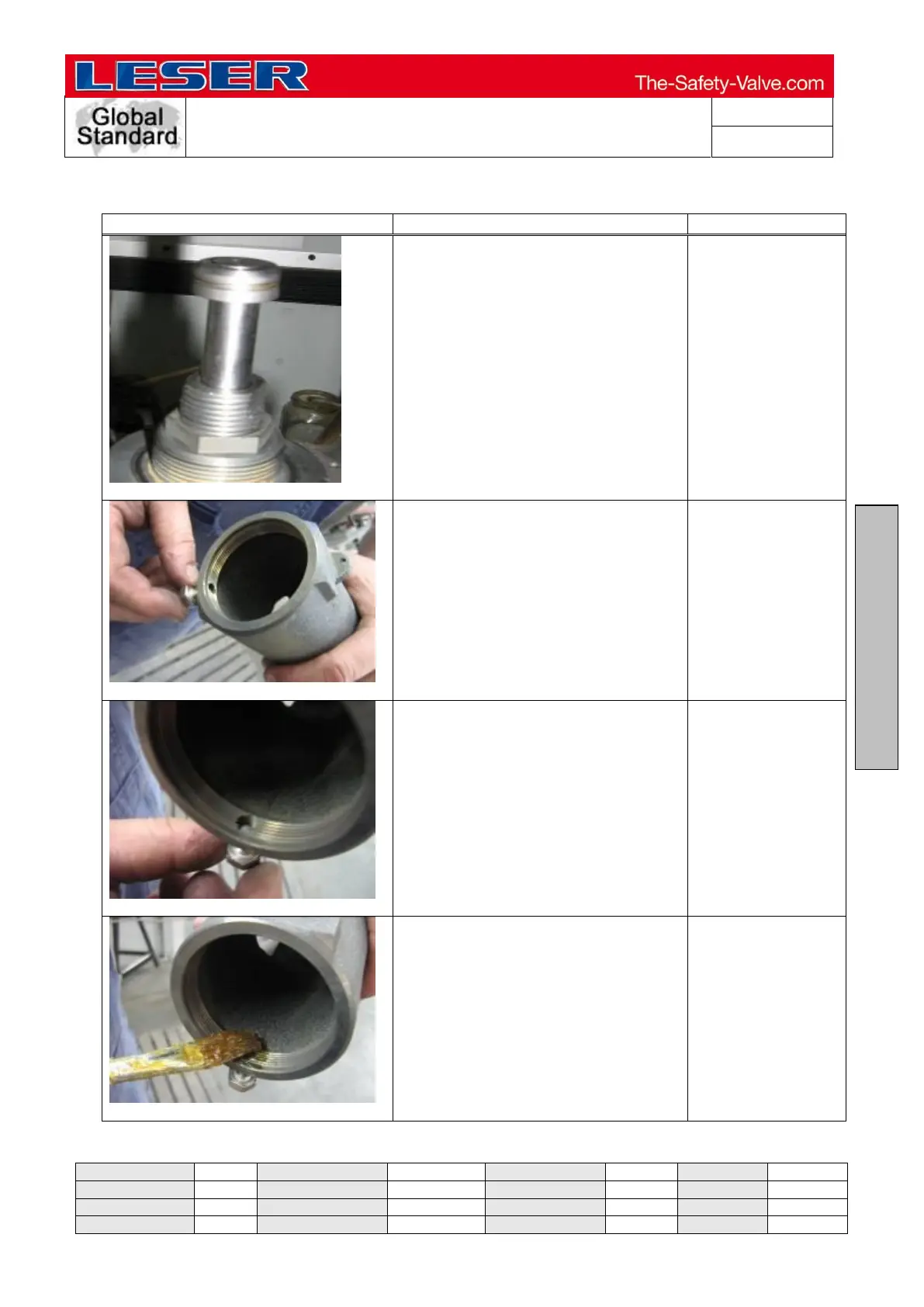

9.11.2 Assembly of lever H3
Illustration
Description
Aids / Tools
Figure 9.11.2-1
Put the spindle cap onto the spindle
and secure with a pin and retaining
clip.
Figure 9.11.2-2
Put clamping screw into H3 cap at
designated place.
Ring spanner
Figure 9.11.2-3
Put the small plastic balls in the hole
of the adjusting screw.
Figure 9.11.2-4
Grease the thread of the lever and
screw it onto the bonnet (lever must
be opposite from outlet).
Brush
Halocarbon
(OI-56 S / 60H)
