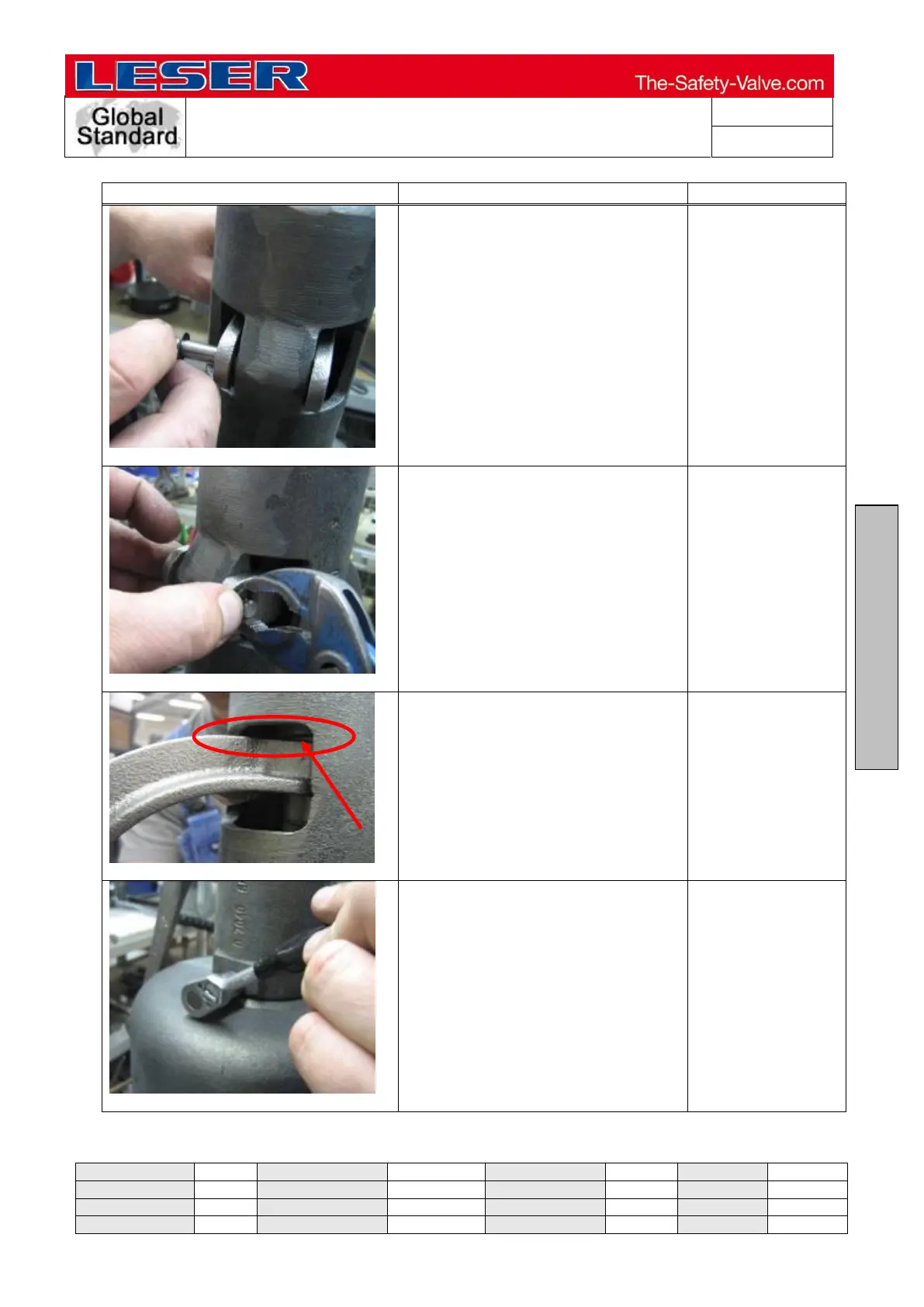

Figure 9.11.2-5
Insert the venting lever into the
spindle cap.
Figure 9.11.2-6
Use a pin and retaining washers to
secure the venting lever.
Figure 9.11.2-7
Make sure that the lever has
enough play to vent.
Figure 9.11.2-8
Tighten the clamping screw on the
lever.
Ring spanner
