Mounting
Leuze electronic MLC 510 28
6.2.2
Definition of directions of movement
The following terms for alignment movements of the safety sensor around one of its axes are used:
a Sliding: movement along the longitudinal axis
b Turning: movement around the longitudinal axis
c Tilting: lateral turning movement diagonal to the front screen
d Pitching: lateral turning movement in the direction of the front screen

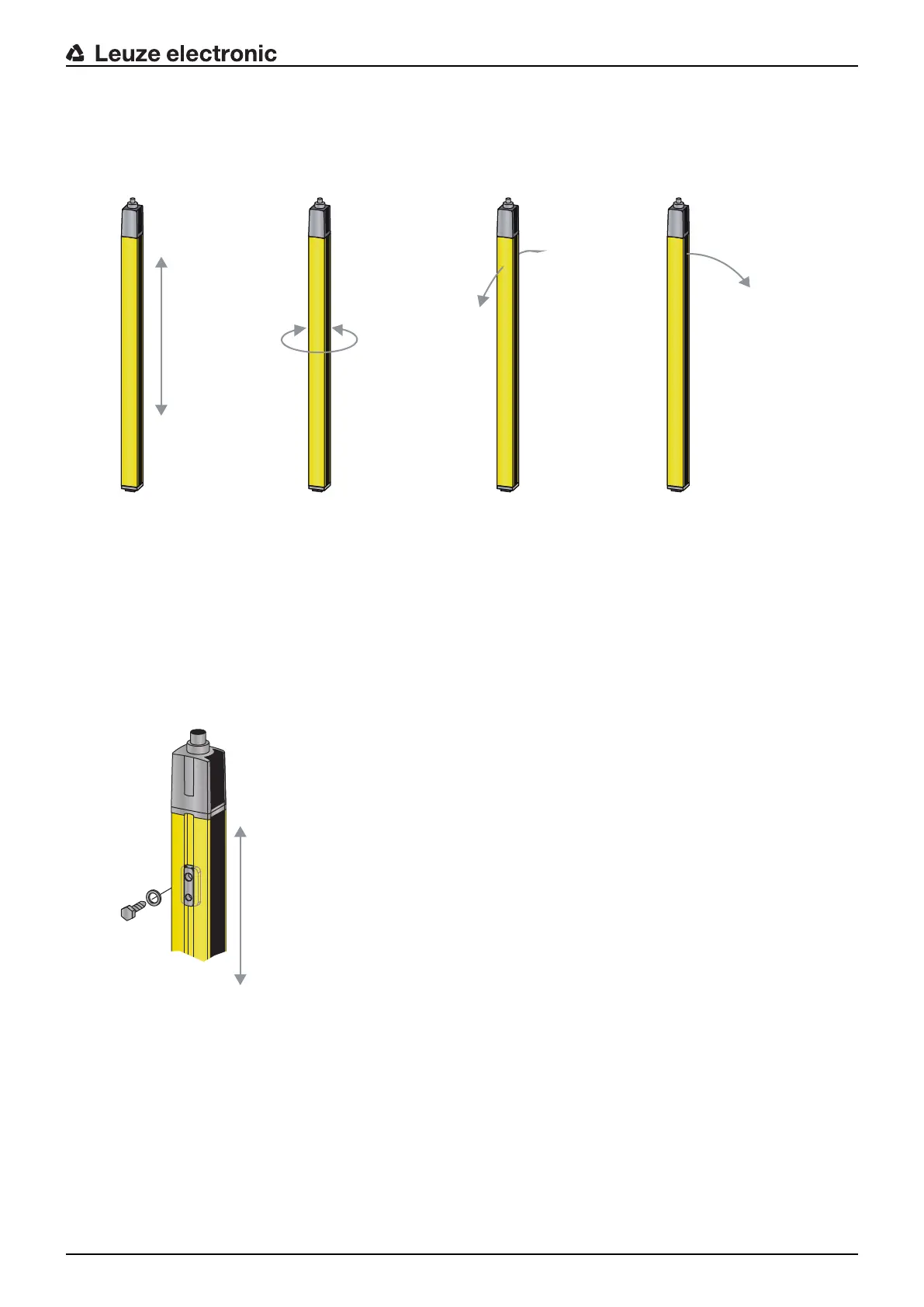

Fig.6.6: Directions of movement during alignment of the safety sensor
6.2.3
Fastening via BT-NC60 sliding blocks
By default, transmitter and receiver are delivered with 2BT-NC60 sliding blocks each in the side slot. This
makes fastening the safety sensor to the machine or system to be safeguarded easy via four M6 screws.
Sliding in the direction of slot to set the height is possible, but turning, tilting and pitching is not.
Fig.6.7: Mounting via sliding blocks BT-NC60
