Mounting
Leuze electronic MLC 510 29
6.2.4 Fastening via BT-2HF swivel mount
With the swivel mount (see chapter 15 "Order guide and accessories"), sold separately, the safety sensor
can be aligned as follows:
• Sliding through the vertical threaded holes in the wall plate of the swivel mount
• Turning by 360° around the longitudinal axis by fixing on the screw-on cone
• Pitching in the direction of the protective field with horizontal threaded holes in the wall mounting
• Tilting around main axis
The wall mounting through threaded holes makes it possible to lift the mounting bracket after the screws
have been loosened over the connection cap. Therefore, the mounting brackets do not need to be removed
from the wall when exchanging the device. Loosening the screws is sufficient.
For increased mechanical loads, mounting brackets are also available in a vibration-damped version
(BT-2HF-S) (see chapter 15 "Order guide and accessories").

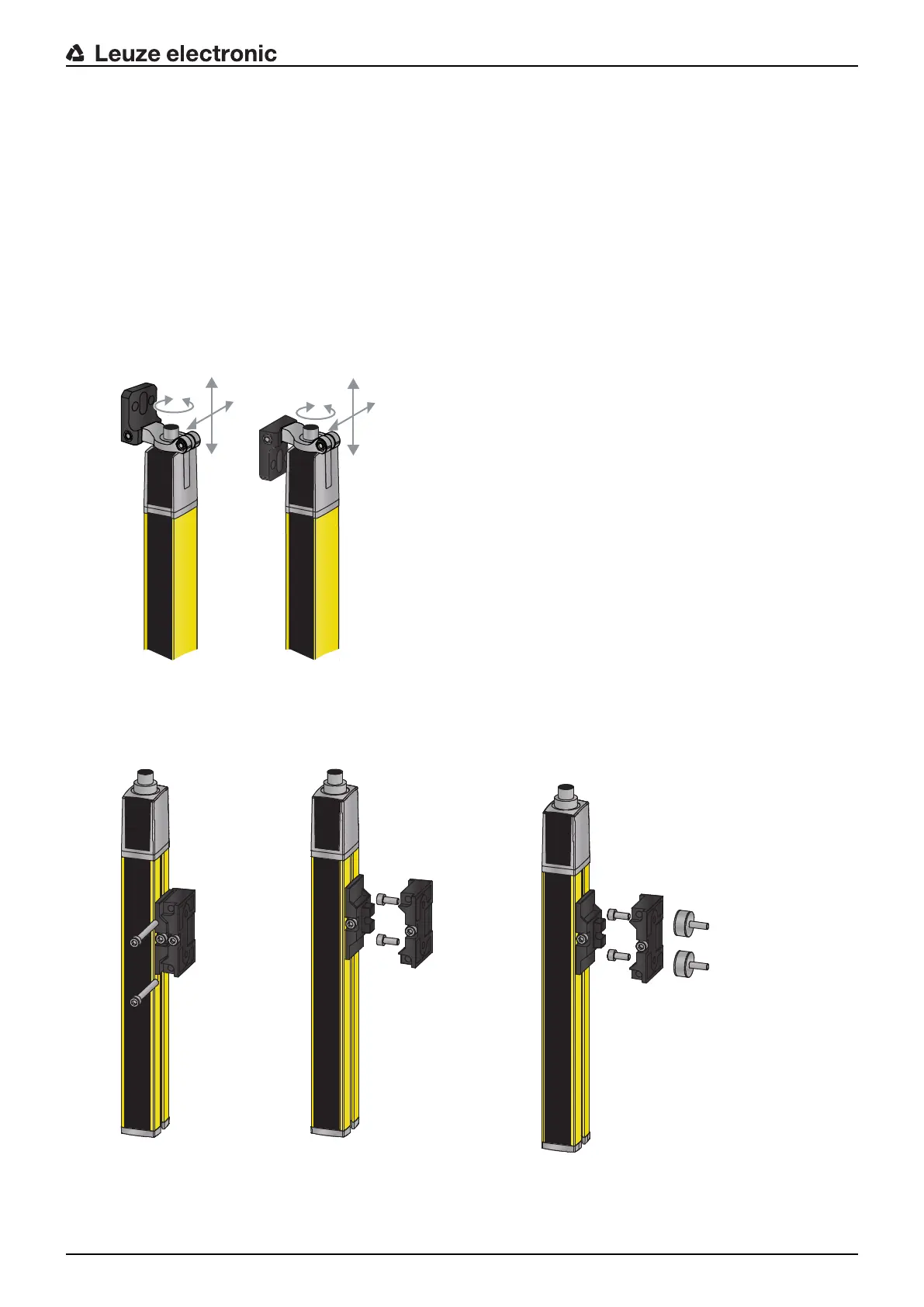

Fig.6.8: Mounting via swivel mount BT-2HF
6.2.5 Fastening via BT-2SB10 swiveling mounting brackets
Fig.6.9: Mounting via swiveling mounting brackets BT-2SB10
