Mounting
Leuze electronic MLC 510 31
6.3 Mounting accessories
6.3.1 Deflecting mirror for multiple-side guarding
For multiple-side guarding, redirecting the protective field with one or two deflecting mirrors is economical.
To do this, Leuze electronic supplies:
• The UM60 deflecting mirror for mounting on the machine in various lengths (see chapter 15 "Order
guide and accessories")
• suitable BT-2UM60 swivel mounts
• UMC-1000-S2…UMC-1900-S2 deflecting mirror columns with spring-damped base for free-standing
floor mounting
The range is reduced by approx.10% per deflection. A laser alignment aid with red light laser is recom-
mended for the alignment of transmitter and receiver (see chapter 8.3 "Aligning of deflecting mirrors with
the laser alignment aid").
Ä Note that the distance between the transmitter and the first deflecting mirror cannot be larger than 3m.
2
1
3
1 Transmitter
2 Receiver
3 UM60 deflecting mirrors

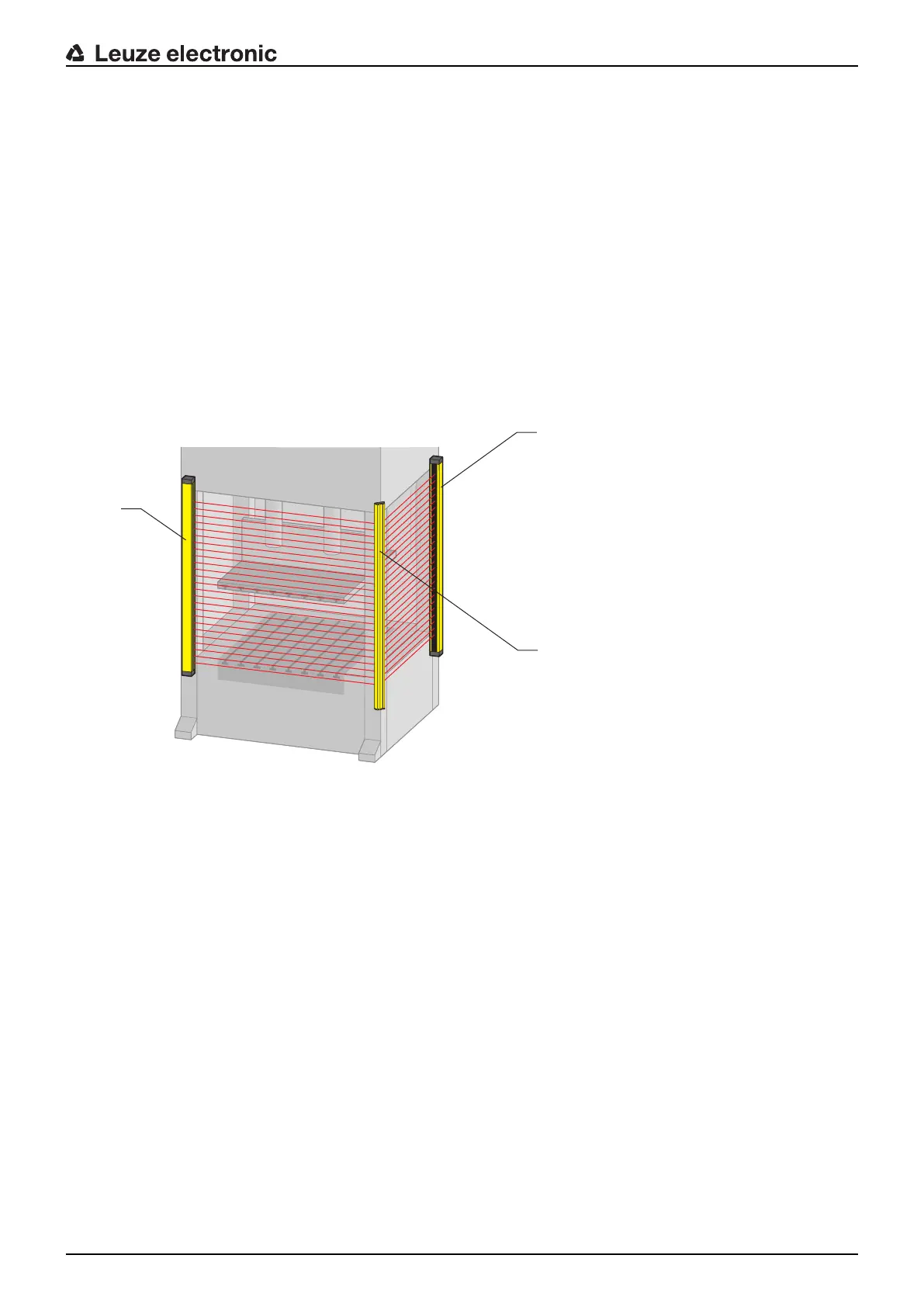

Fig.6.11: Arrangement with deflecting mirror for 2-side guarding of a point of operation
