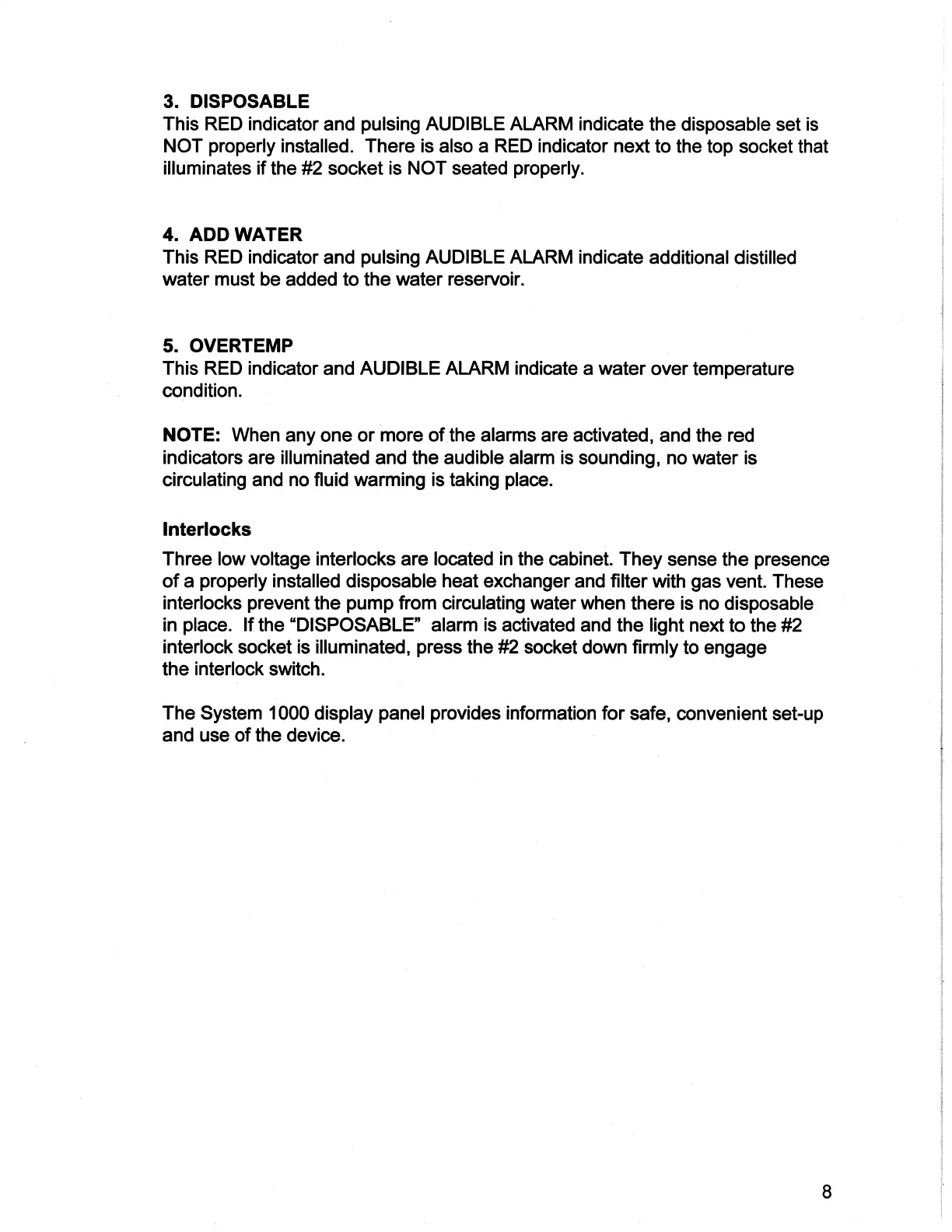

3. DISPOSABLE
This RED indicator and pulsing AUDIBLE ALARM indicate the disposable set is
NOT properly installed. There is also a RED indicator next to the top socket that
illuminates if the #2 socket is NOT seated properly.
4. ADD WATER
This RED indicator and pulsing AUDIBLE ALARM indicate additional distilled
water must be added to the water reservoir.
5. OVERTEMP |
This RED indicator and AUDIBLE ALARM indicate a water over temperature
condition.
NOTE: When any one or more of the alarms are activated, and the red
indicators are illuminated and the audible alarm is sounding, no water is
circulating and no fluid warming is taking place.
interlocks
Three low voltage interlocks are located in the cabinet. They sense the presence
of a properly installed disposable heat exchanger and filter with gas vent. These
interlocks prevent the pump from circulating water when there is no disposable
in place. If the “DISPOSABLE” alarm is activated and the light next to the #2
interlock socket is illuminated, press the #2 socket down firmly to engage
the interlock switch.
The System 1000 display panel provides information for safe, convenient set-up
and use of the device.
