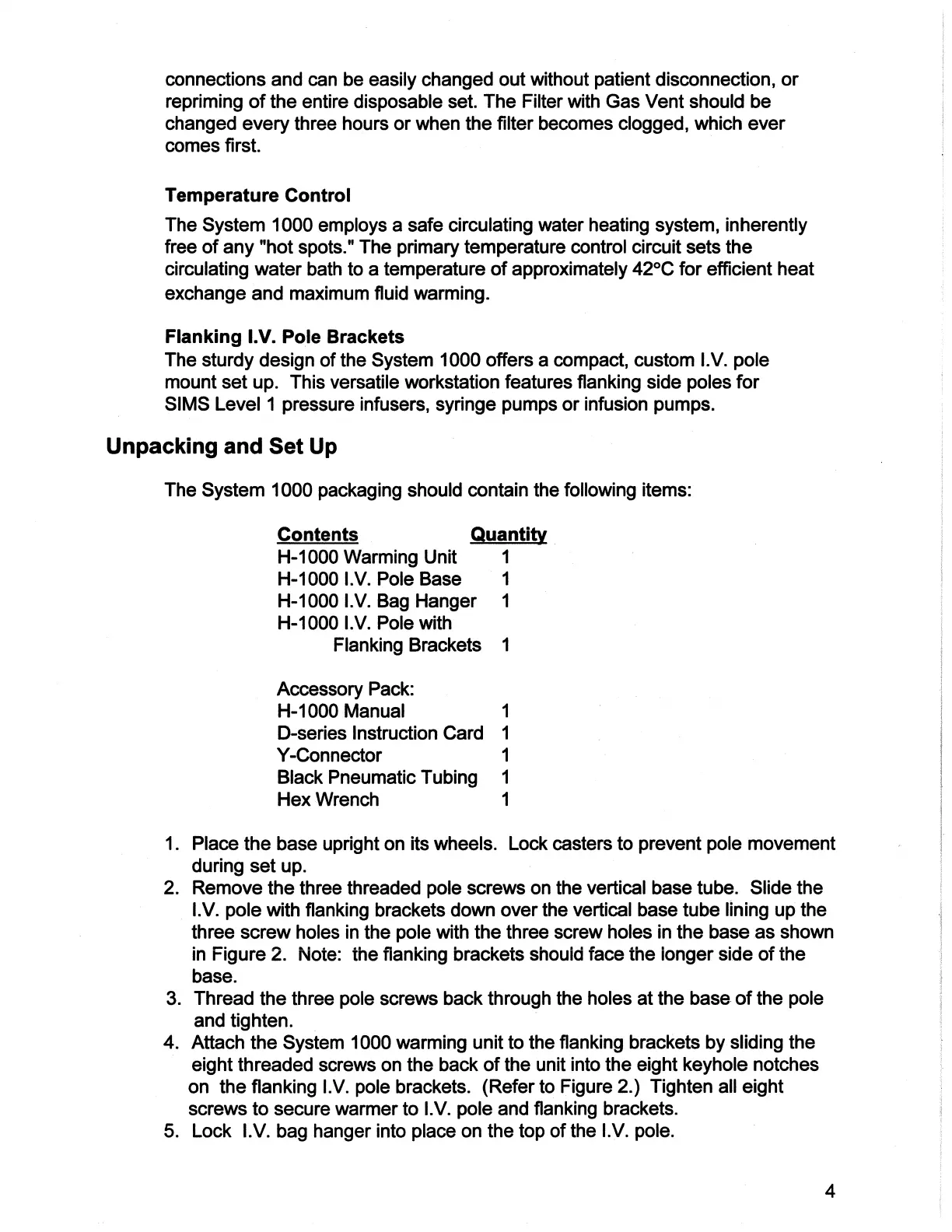

connections
and
can
be
easily
changed
out
without
patient
disconnection,
or
repriming
of
the
entire
disposable
set.
The
Filter
with
Gas
Vent
should
be
changed
every
three
hours
or
when
the
filter
becomes
clogged,
which
ever
comes
first.
|
|
|
Temperature
Control
The
System
1000
employs
a
safe
circulating
water
heating
system,
inherently
free
of
any
"hot
spots."
The
primary
temperature
control
circuit
sets
the
circulating
water
bath
to
a
temperature
of
approximately
42°C
for
efficient
heat
exchange
and
maximum
fluid
warming.
Flanking
I.V.
Pole
Brackets
The
sturdy
design
of
the
System
1000
offers
a
compact,
custom
I.V.
pole
mount
set
up.
This
versatile
workstation
features
flanking
side
poles
for
SIMS
Level
1
pressure
infusers,
syringe
pumps
or
infusion
pumps.
Unpacking
and
Set
Up
The
System
1000
packaging
should
contain
the
following
items:
Contents
Quantity
H-1000
Warming
Unit
1
H-1000
1.V.
Pole
Base
1
H-1000
1.V.
Bag
Hanger
1
H-1000
1.V.
Pole
with
Flanking
Brackets
—h
Accessory
Pack:
H-1000
Manual
D-series
Instruction
Card
Y-Connector
Black
Pneumatic
Tubing
Hex
Wrench
=>
=>
--
1.
Place
the
base
upright
on
its
wheels.
Lock
casters
to
prevent
pole
movement
during
set
up.
2.
Remove
the
three
threaded
pole
screws
on
the
vertical
base
tube.
Slide
the
UV.
pole
with
flanking
brackets
down
over
the
vertical
base
tube
lining
up
the
three
screw
holes
in
the
pole
with
the
three
screw
holes
in
the
base
as
shown
in
Figure
2.
Noite:
the
flanking
brackets
shouid
face
the
longer
side
of
the
base.
3.
Thread
the
three
pole
screws
back
through
the
holes
at
the
base
of
the
pole
and
tighten.
.
|
|
4.
Attach
the
System
1000
warming
unit
to
the
flanking
brackets
by
sliding
the
eight
threaded
screws
on
the
back
of
the
unit
into
the
eight
keyhole
notches
on
the
flanking
I.V.
pole
brackets.
(Refer
to
Figure
2.)
Tighten
all
eight
screws
to
secure
warmer
to
|.V.
pole
and
flanking
brackets.
o.
Lock
I.V.
bag
hanger
into
place
on
the
top
of
the
I.V.
pole.
