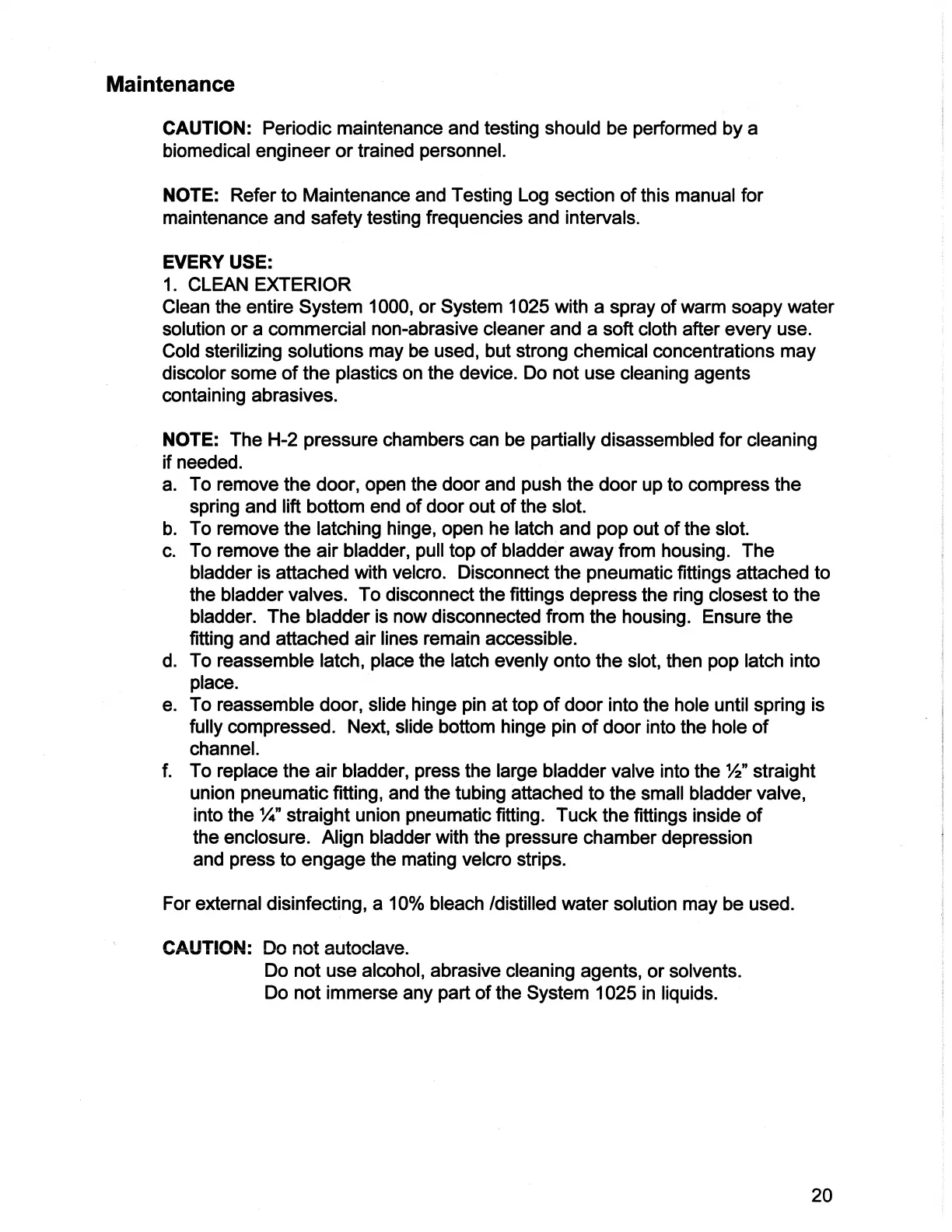

Maintenance
CAUTION:
Periodic
maintenance
and
testing
should
be
performed
by
a
biomedical
engineer
or
trained
personnel.
NOTE:
Refer
to
Maintenance
and
Testing
Log
section
of
this
manual
for
maintenance
and
safety
testing
frequencies
and
intervals.
EVERY
USE:
1.
CLEAN
EXTERIOR
Clean
the
entire
System
1000,
or
System
1025
with
a
spray
of
warm
soapy
water
solution
or
a
commercial
non-abrasive
cleaner
and
a
soft
cloth
after
every
use.
Cold
sterilizing
solutions
may
be
used,
but
strong
chemical
concentrations
may
discolor
some
of
the
plastics
on
the
device.
Do
not
use
cleaning
agents
containing
abrasives.
NOTE:
The
H-2
pressure
chambers
can
be
partially
disassembled
for
cleaning
if
needed.
a.
To
remove
the
door,
open
the
door
and
push
the
door
up
to
compress
the
spring
and
lift
bottom
end
of
door
out
of
the
slot.
b.
To
remove
the
latching
hinge,
open
he
latch
and
pop
out
of
the
slot.
c.
To
remove
the
air
bladder,
pull
top
of
bladder
away
from
housing.
The
bladder
is
attached
with
velcro.
Disconnect
the
pneumatic
fittings
attached
to
the
bladder
valves.
To
disconnect
the
fittings
depress
the
ring
closest
to
the
bladder.
The
bladder
is
now
disconnected
from
the
housing.
Ensure
the
fitting
and
attached
air
lines
remain
accessible.
|
d.
To
reassemble
latch,
place
the
latch
evenly
onto
the
slot,
then
pop
latch
into
place.
e.
To
reassemble
door,
slide
hinge
pin
at
top
of
door
into
the
hole
until
spring
is
fully
compressed.
Next,
slide
bottom
hinge
pin
of
door
into
the
hole
of
channel.
f.
To
replace
the
air
bladder,
press
the
large
bladder
valve
into
the
72”
straight
union
pneumatic
fitting,
and
the
tubing
attached
to
the
small
bladder
valve,
into
the
Y”
straight
union
pneumatic
fitting.
Tuck
the
fittings
inside
of
the
enclosure.
Align
bladder
with
the
pressure
chamber
depression
and
press
to
engage
the
mating
velcro
strips.
For
external
disinfecting,
a
10%
bleach
/distilled
water
solution
may
be
used.
CAUTION:
Do
not
autoclave.
Do
not
use
alcohol,
abrasive
cleaning
agents,
or
solvents.
Do
not
immerse
any
part
of
the
System
1025
in
liquids.
