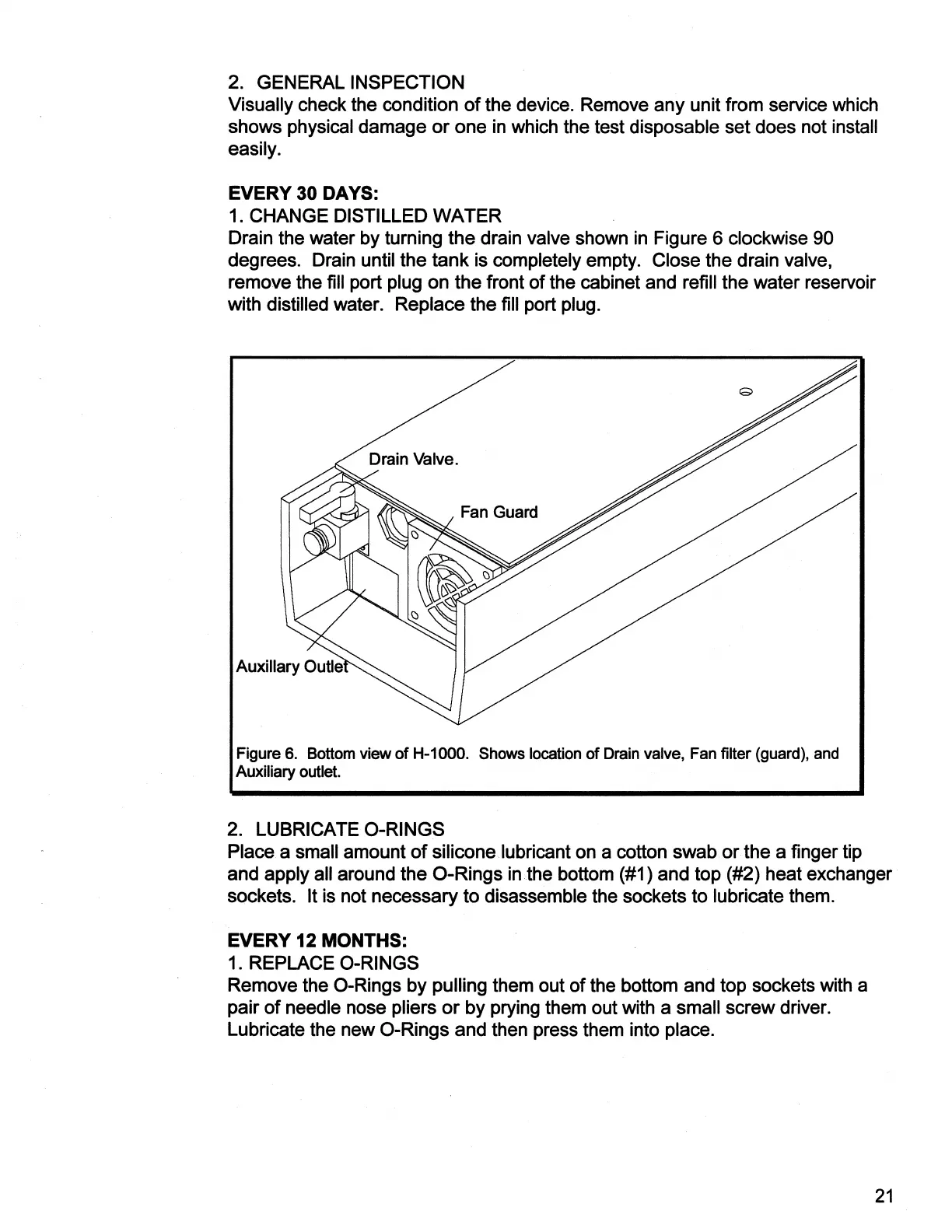

2.
GENERAL
INSPECTION
Visually
check
the
condition
of
the
device.
Remove
any
unit
from
service
which
shows
physical
damage
or
one
in
which
the
test
disposable
set
does
not
install
easily.
EVERY
30
DAYS:
1.
CHANGE
DISTILLED
WATER
|
Drain
the
water
by
turning
the
drain
valve
shown
in
Figure
6
clockwise
90
degrees.
Drain
until
the
tank
is
completely
empty.
Close
the
drain
valve,
remove
the
fill
port
plug
on
the
front
of
the
cabinet
and
refill
the
water
reservoir
With
distilled
water.
Replace
the
fill
port
plug.
Drain
Valve.
Auxillary
Outle
Figure
6.
Bottom
view
of
H-1000.
Shows
location
of
Drain
valve,
Fan
filter
(guard),
and
Auxiliary
outlet.
2.
LUBRICATE
O-RINGS
Place
a
small
amount
of
silicone
lubricant
on
a
cotton
swab
or
the
a
finger
tip
and
apply
all
around
the
O-Rings
in
the
bottom
(#1)
and
top
(#2)
heat
exchanger
sockets.
It
is
not
necessary
to
disassemble
the
sockets
to
lubricate
them.
EVERY
12
MONTHS:
1.
REPLACE
O-RINGS
Remove
the
O-Rings
by
pulling
them
out
of
the
bottom
and
top
sockets
with
a
pair
of
needle
nose
pliers
or
by
prying
them
out
with
a
small
screw
driver.
Lubricate
the
new
O-Rings
and
then
press
them
into
place.
21
