level 1 System 1000 - Electrical Parts List

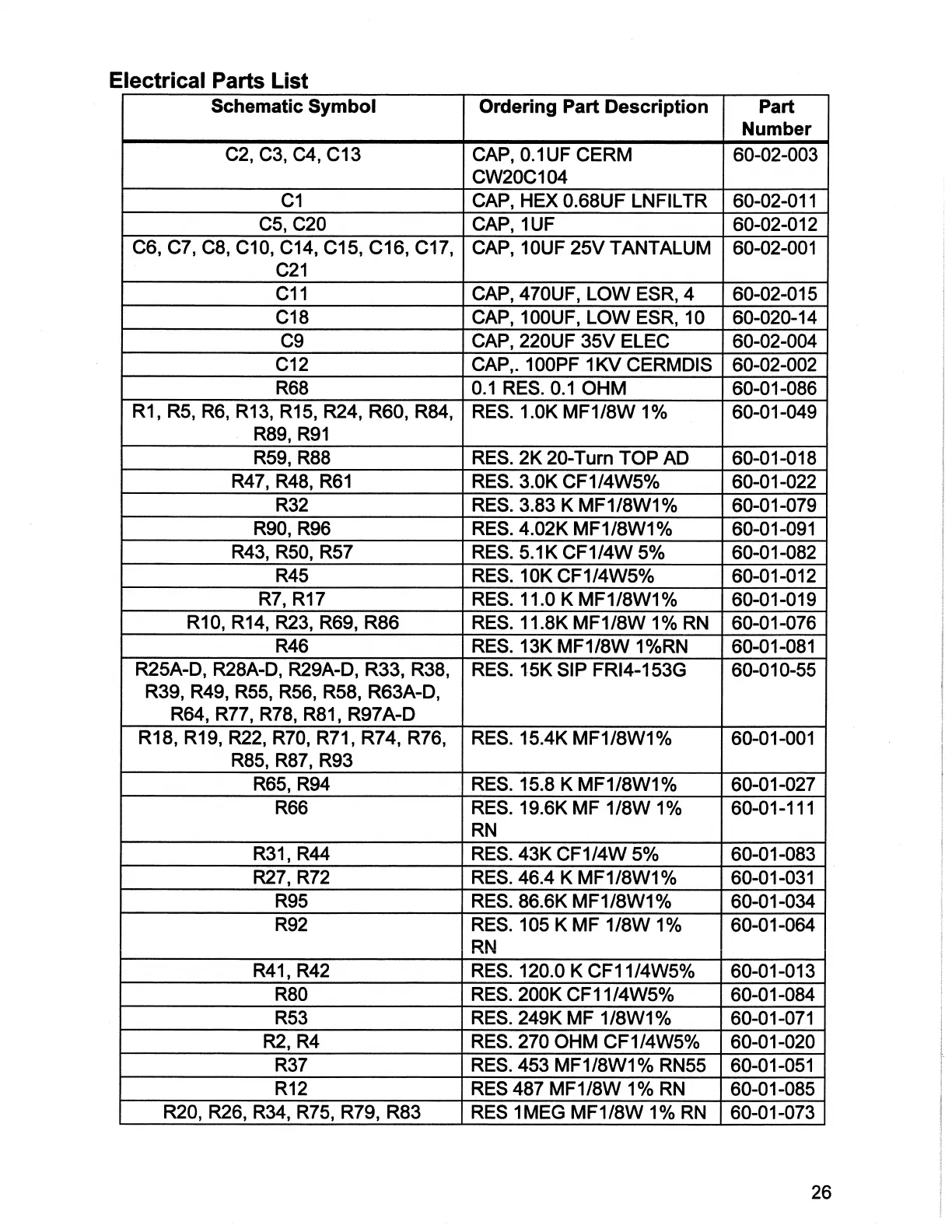

Electrical Parts List
Schematic Symbol Ordering Part Description Part
Number
C2, C3, C4, C13 CAP, 0.1UF CERM 60-02-003
CW20C104
C1 CAP, HEX 0.68UF LNFILTR | 60-02-011
C5, C20 CAP, 1UF 60-02-012
C6, C7, C8, C10, C14, C15, C16, C17, | CAP, 10UF 25V TANTALUM | 60-02-001
| C21
C11 CAP, 470UF, LOW ESR, 4 60-02-015
C18 CAP, 100UF, LOW ESR, 10 | 60-020-14
C9 CAP, 220UF 35V ELEC 60-02-004
C12 CAP,. 100PF 1KV CERMDIS | 60-02-002
R68 0.1 RES. 0.1 OHM | 60-01-086
R1, RS, RE, R13, R15, R24, R60, R84, | RES. 1.0K MF1/8W 1% 60-01-049
. R89, R91
R59, R88 RES. 2K 20-Turn TOP AD 60-01-018
R47, R48, R61 RES. 3.0K CF1/4W5% 60-01-022
R32 RES. 3.83 K MF1/8W1% 60-01-079
R90, R96 RES. 4.02K MF 1/8W1% 60-01-091
R43, R50, R57 RES. 5.1K CF1/4W 5% 60-01-082
R45 RES. 10K CF1/4W5% 60-01-012
R7, R17 RES. 11.0 K MF1/8W1% 60-01-019
R10, R14, R23, R69, R86 RES. 11.8K MF1/8W 1% RN | 60-01-076
R46 RES. 13K MF1/8W 1%RN 60-01-0871
R25A-D, R28A-D, R29A-D, R33, R38, | RES. 15K SIP FRI4-153G 60-010-55
R39, R49, R55, R56, R58, R63A-D,
R64, R77, R78, R81, R97A-D
R18, R19, R22, R70, R71, R74, R76, | RES. 15.4K MF1/8W1% 60-01-001
R85, R87, R93
R65, R94 | RES. 15.8 K MF1/8W1% 60-01-027
R66 RES. 19.6K MF 1/8W 1% 60-01-111
RN
R31, R44 RES. 43K CF1/4W 5% 60-01-083
R27, R72 RES. 46.4 K MF1/8W1% 60-01-0371
R95 RES. 86.6K MF1/8W1% 60-01-034
R92 RES. 105 K MF 1/8W 1% 60-01-064
RN
R41, R42 RES. 120.0 K CF11/4W5% | 60-01-013
R80 RES. 200K CF11/4W5% 60-01-084
R53 RES. 249K MF 1/8W1% 60-01-071
R2, R4 RES. 270 OHM CF1/4W5% | 60-01-020
R37 RES. 453 MF1/8W1% RN55 | 60-01-051
R12 RES 487 MF1/8W 1% RN 60-01-085 |
R20, R26, R34, R75, R79, R83 RES 1MEG MF1/8W 1% RN | 60-01-073
26
