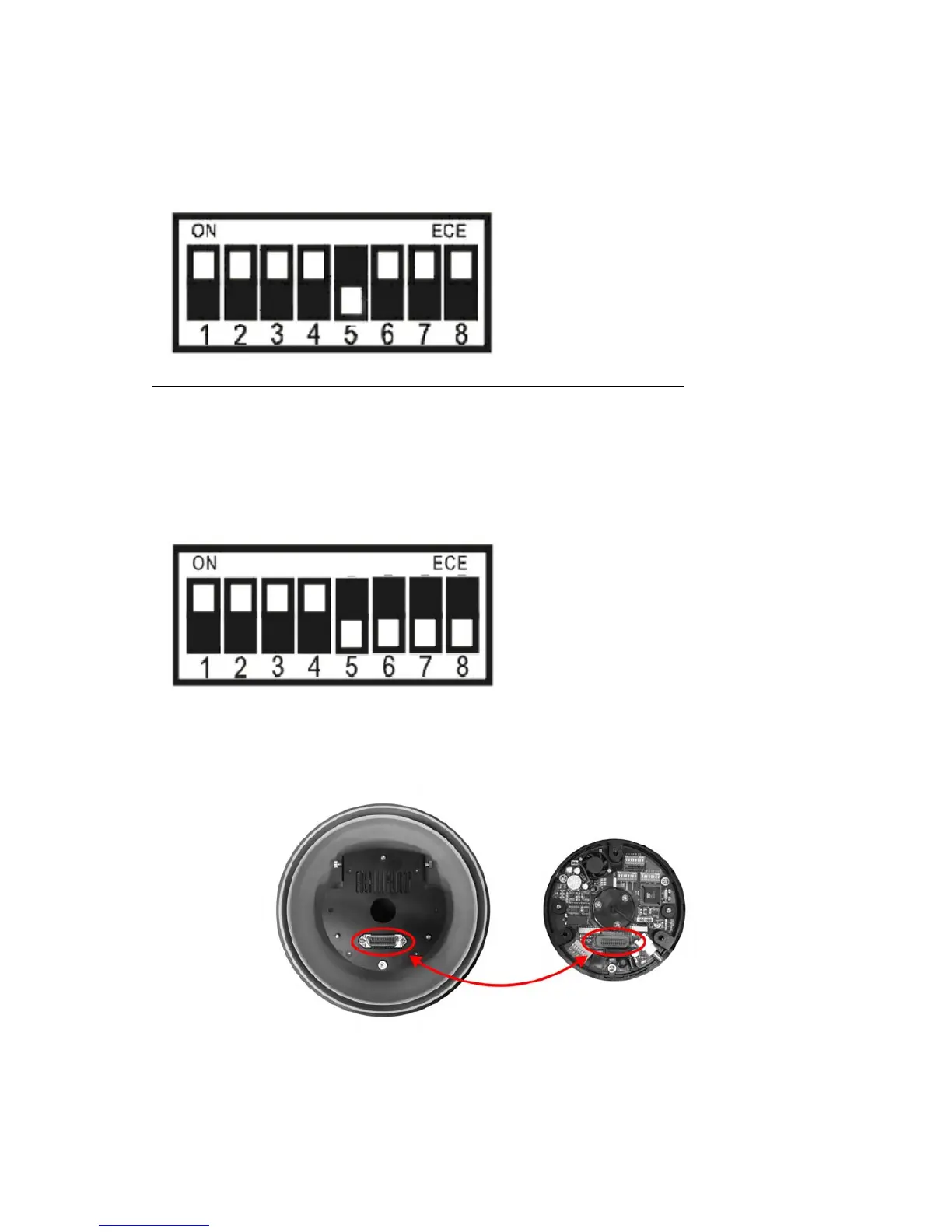

 Protocol setup
The dip-switchers are for protocol setup. Please set it up as below:
No.5 is ON.
*Remarks: Please reboot the camera after the protocol setup is done.
 Alarm Dip-switchers
The dip-switchers are for DI/DO setup. Please set it up as below:
NO. 5/6/7/8 is ON.
 Aim the camera plug to the bottom socket to connecting.
