unit “fps” stands for “frames sent per second”.
Quality
Auto：The quality and bitrate will be automatically decided according to the frame rate.
Fixed Quality：The selectable values are Medium, Standard, Good, Detailed and Excellent.
Fixed Bitrate：Set the bit rate of MPEG4 image transmission for a line. Selectable values are 64, 128, 256,
384, 512, 768, 1024, 1280, 1536 and 2048 kbps.
Note：
• The selected frame rate and bit rate are a tentative value. The actual frame rate and bit rate may be
different according to the image size, the shooting scene or the network condition.

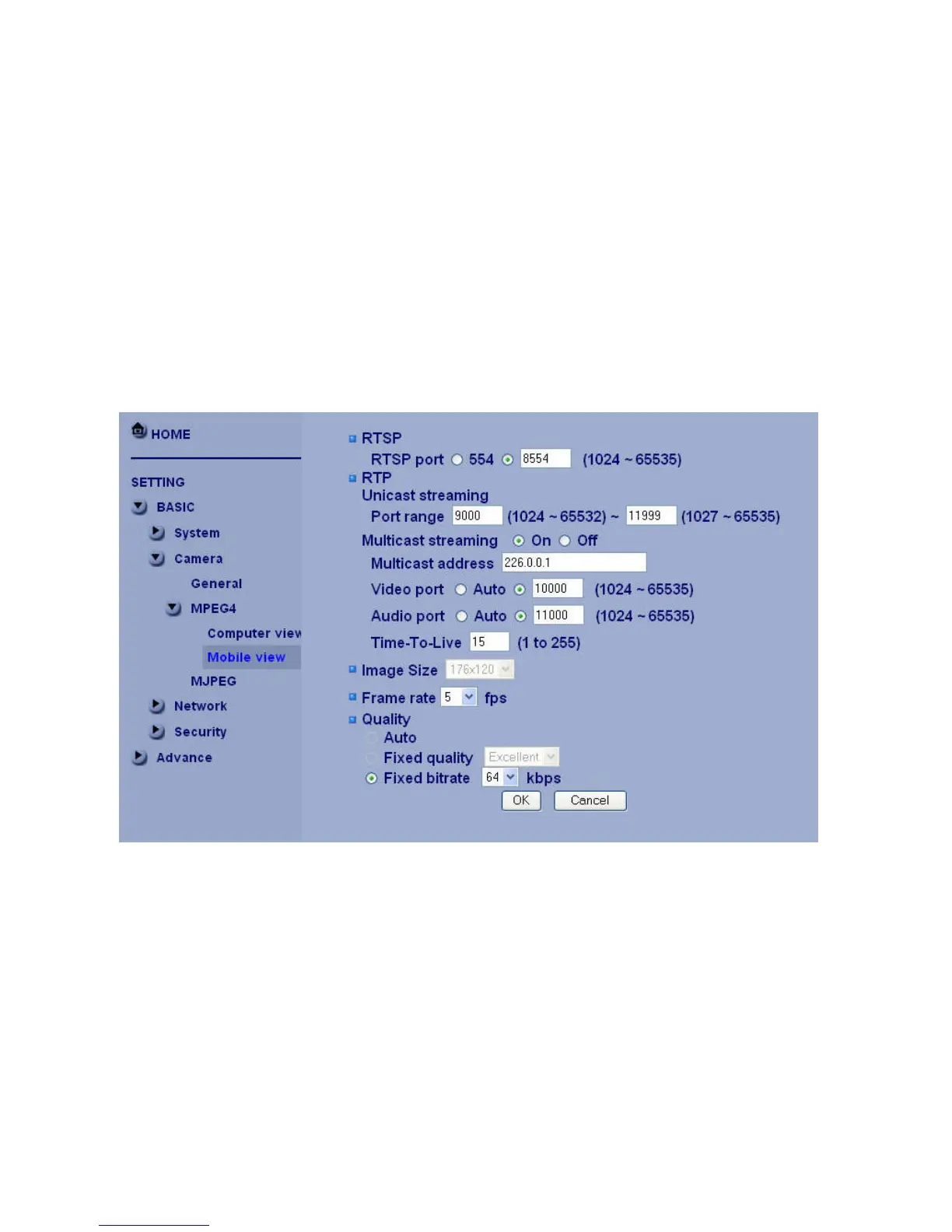

Mobile View
RTSP (If RTSP mode is ON)
RTSP port: Specify the transmission port number of RTSP streaming video. Default value is 8554.
RTP (If RTSP mode is ON)
Unicast streaming:
Unicast streaming Video/Audio port range: Specify the transmission port range of RTP streaming video.
RTP will select a port randomly from the range.
Multicast streaming:
Multicast address: Specify the multicast server address.
Video / Audio Port: Specify the transmission port number of the video data. It is initially set to 10000 and
