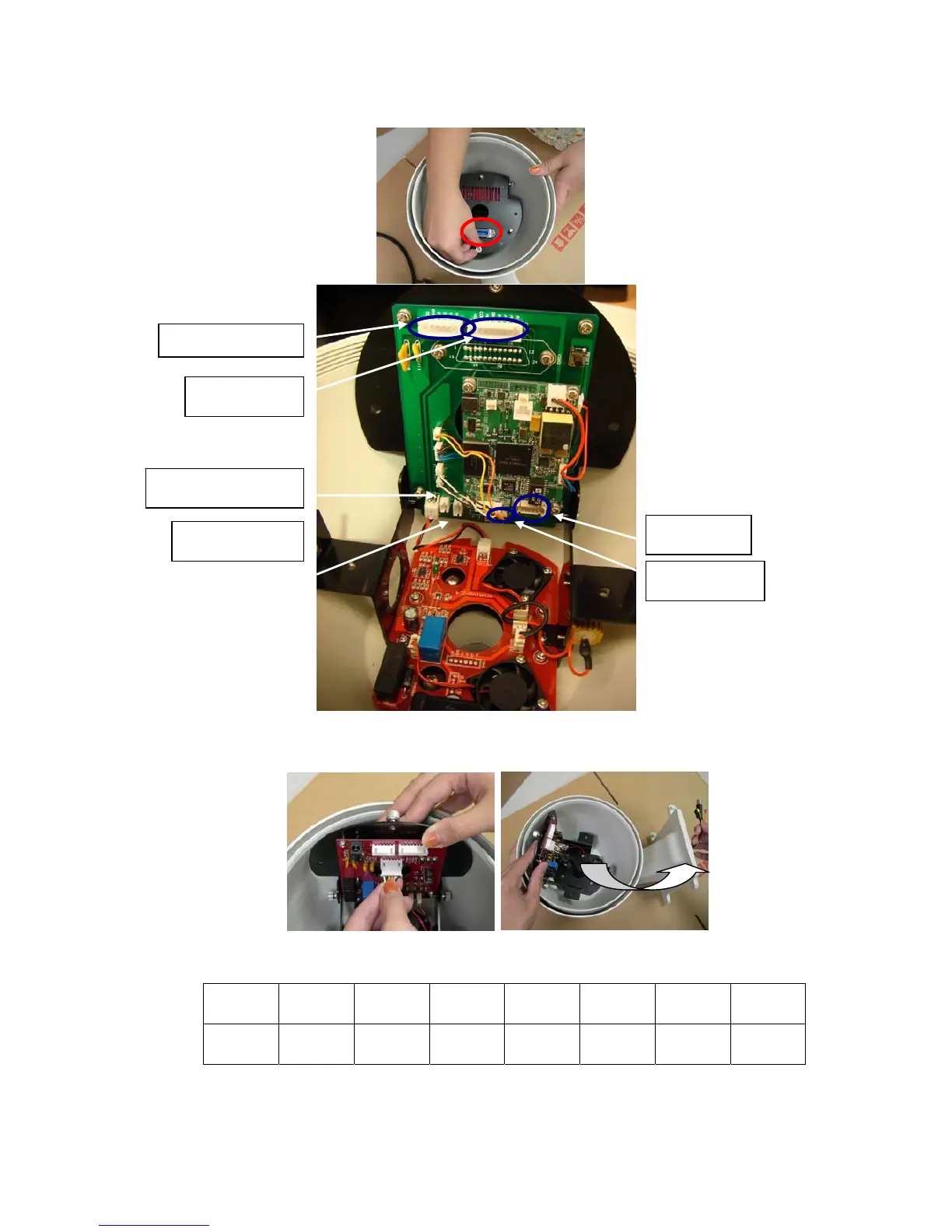

unscrew the bottom screw to install cables.
Insert the plug, and pull these cables through out from the bottom of bracket.
For the alarm cable
Brown Red Orange Yellow Green Blue Black White
DI 1 DI 2 DI 3 DI 4 GND NC COM NO
Hook up the safety buckle, and screw the two screws to fix the power box.
Power&A/V Cable
Alarm Cable
Microphone Cable
Speaker Cable
LAN Cable
Reset Button
