Installation and adjustment
Installation and removing of a wheel with a hub motor.
A situation may occur due to transport or service in which it may be necessary to remove
the wheel with motor. First of all, disconnect the motor connector that is located about 20 cm
from the inlet into the motor. Now release the brake caliper (if it is engaged), shi to the smallest
sprocket (in case of motors placed in the rear of the bicycle), loosen the motor nuts with wrench
no. 18 and remove the wheel from the dropouts. Proceed in reverse order to reinstall the wheel.

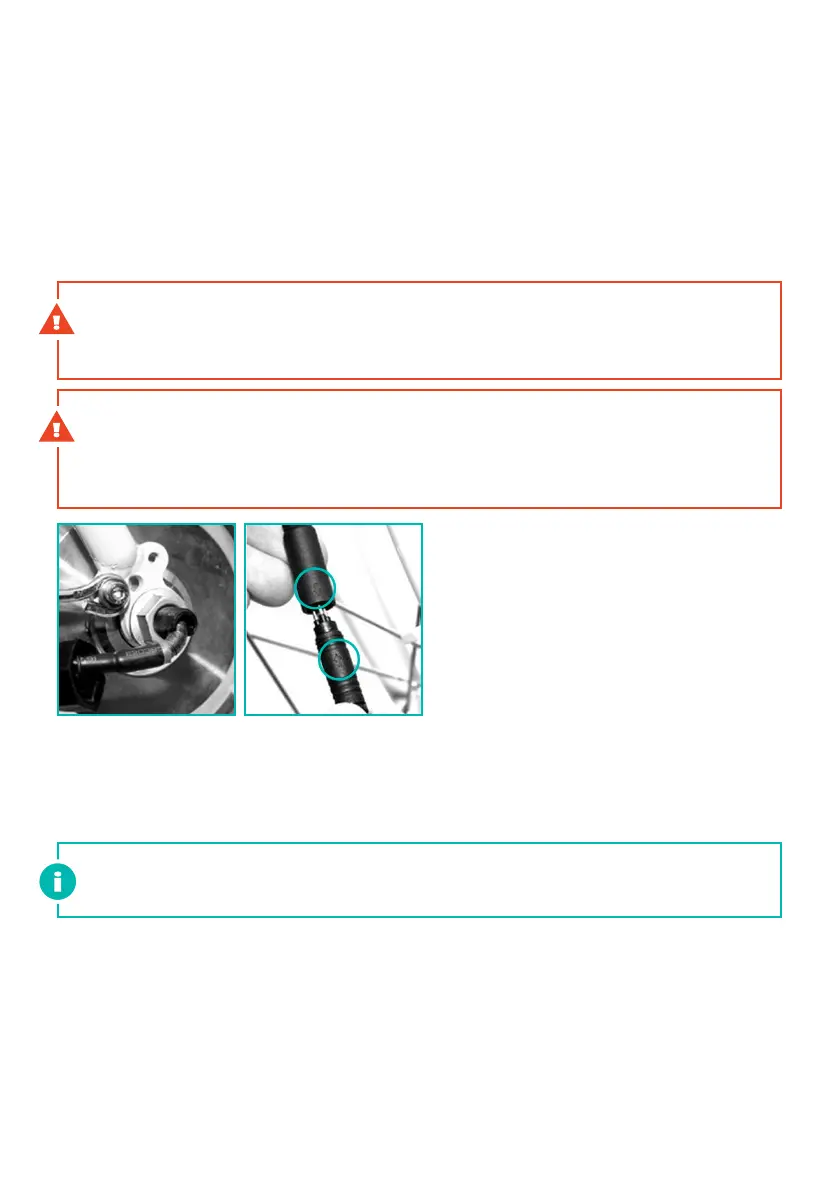

WARNING When installing the wheel with motor, it is necessary that the axle is positioned
in such a way that the notch is oriented downwards. The cable must enter the motor from
below. Otherwise water could leak into the motor and damage it.
WARNING When connecting the connector, pay aention to the fact that the arrows on
both parts of the connector must be directed towards one another. Connect the connector
using sucient force. Insucient connection may result in non-functional motor or damage
to the connector.
Brake disc installation
Use original bolts from the motor (M5×8) when installing the brake disc. If you use bolts
whose length exceeds 8mm, the inner part of the motor is blocked.
RECOMMENDATION Li-ion baeries are fully recyclable. Aer its lifespan has elapsed, you
