7 INSTALLATION
10

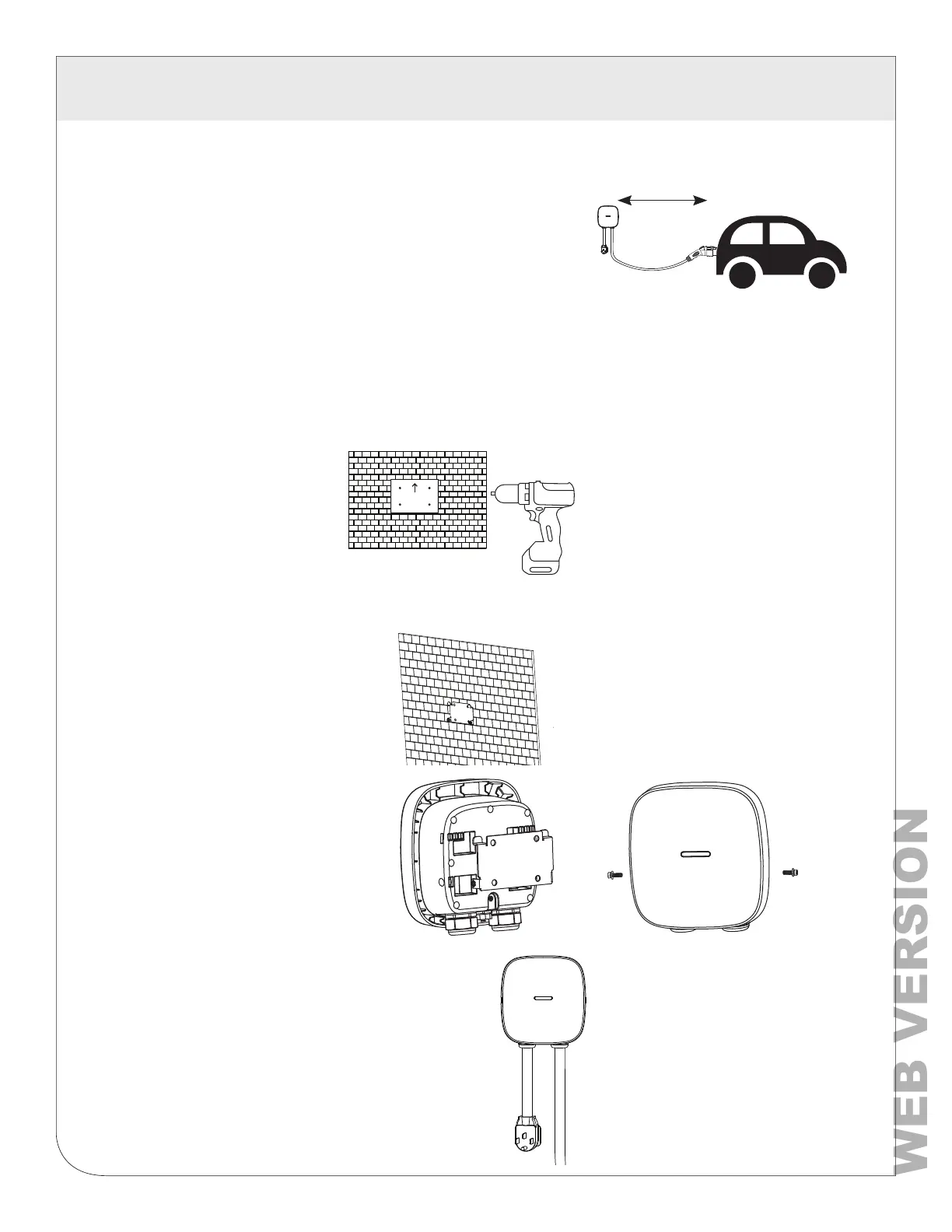

7.1 Wall-Mounted Bracket and Charger Installation
NOTE: Ensure a NEMA 14-50 receptacle is installed within reach of
the EV40P charger. Input cable length from device is 3 ft.
1. Select the appropriate mounting location with electrical capacity:
• Ensure the owner has chosen a mounting location that allows the
charging cable to reach the car’s charging port while still
providing slack.
• The device must be anchored into mounting such as 2” x 4” stud or
a solid wall.
• The device shall be mounted at height between 2 ft. (600 mm) and
4 ft. (1200 mm) from ground.
2. Drill 4 screw holes with a
diameter of 0.35” and a depth
of 2.05”.
3. Use 4 Hexagonal Expansion Screws
to secure the wall-mounted bracket
(Use anti-theft hexagonal expansion
screws) on the wall. Then level the
bracket.
Wall Mounted Bracket
4. Align the rear notch of charger
with the wall-mounted bracket
and t the screw holes of the
right and left side. Tighten two
wing nut screws by hand.
5. Plug in your EV40P to a NEMA 14-50 receptacle.
Installation is complete.
