Levitronix BPS-i600.2 User Manual

User Manual for BPS-i600
www.levitronix.com
PL-4089-00, Rev00, DCO# 21-271
9
2.6 Basic Dimensions of Main Components

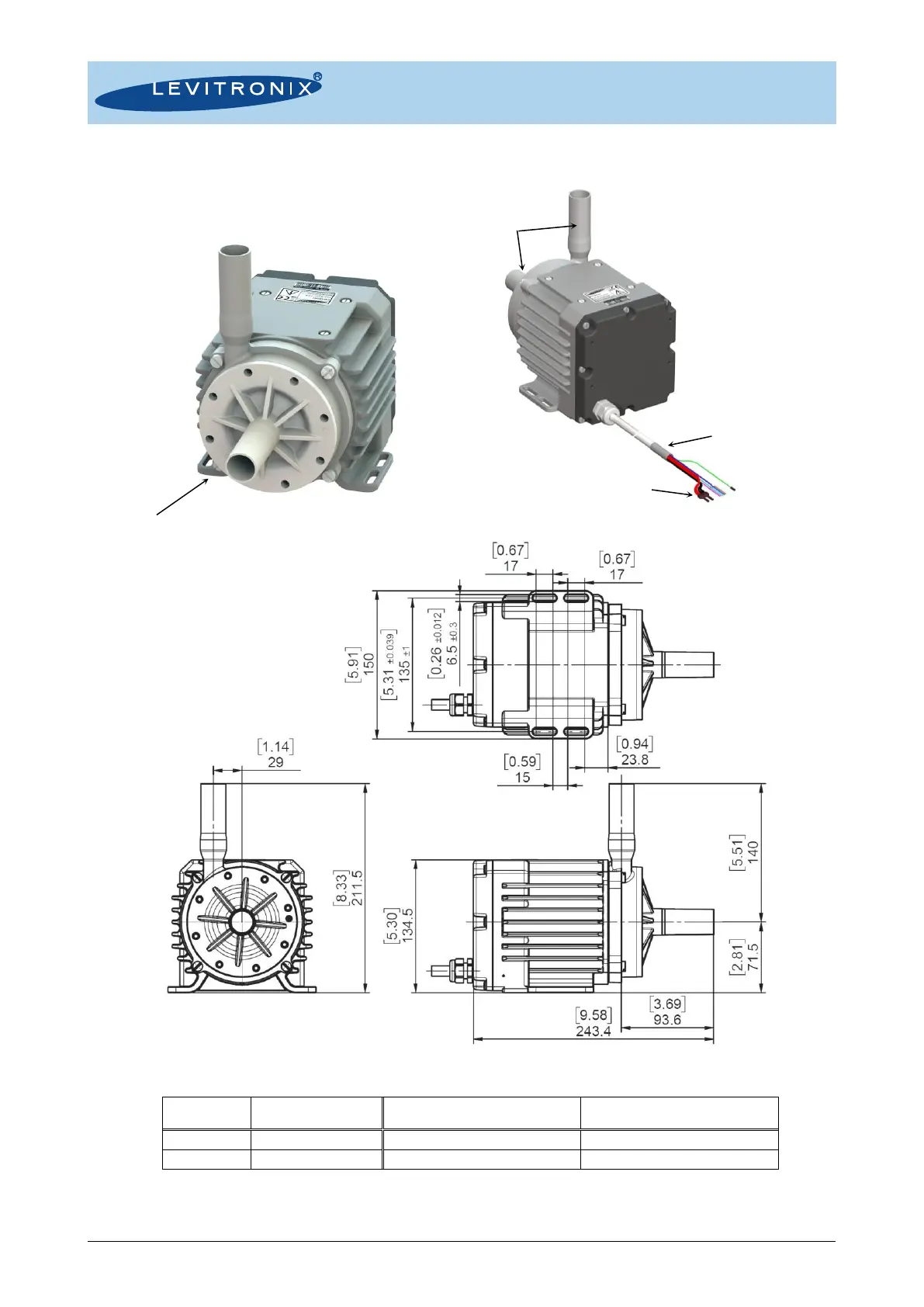

Figure 7: Basic dimensions (in [mm] and [inch]) of driver IPD-600.2-50 with pump head LPP-600.29
Note 1: Non-tolerated dimensions are for reference only. Note 2: For other configurations refer to according drawings.
Cable
Jacket
Cable OD
Driver Cables
Minimum Bending Radius
Permanent Installation
Minimum Bending Radius
Sometimes Moved
FEP
< 8.8 mm
7x Cable OD
15 x Cable OD
PVC
9.5 mm
7x Cable OD
15 x Cable OD
Table 5: Specifications for min. bending radius of driver cable
Note: If not mentioned explicitly, all the cables are not suited for constant dynamic bending and movement!
Tube 1“
4pcs M6x25 Screws (SS PTFE coated, torque spec: 50 Ncm)
(For pump head motor mounting.
Cable outer diameter (OD): < 8.8 mm
Standard length: 5m, open wires
Power Supply Connection:
2 wires a 1.5 mm
2
each
connected to one ferrule
