User Manual for PuraLev
®
i30SU
www.levitronix.com
7
Two Fieldbus connectors (IN and OUT) allow to setup arrays of multiple pumps. Therefore serial pumping
configurations as shown in Figure 6 can be realized.

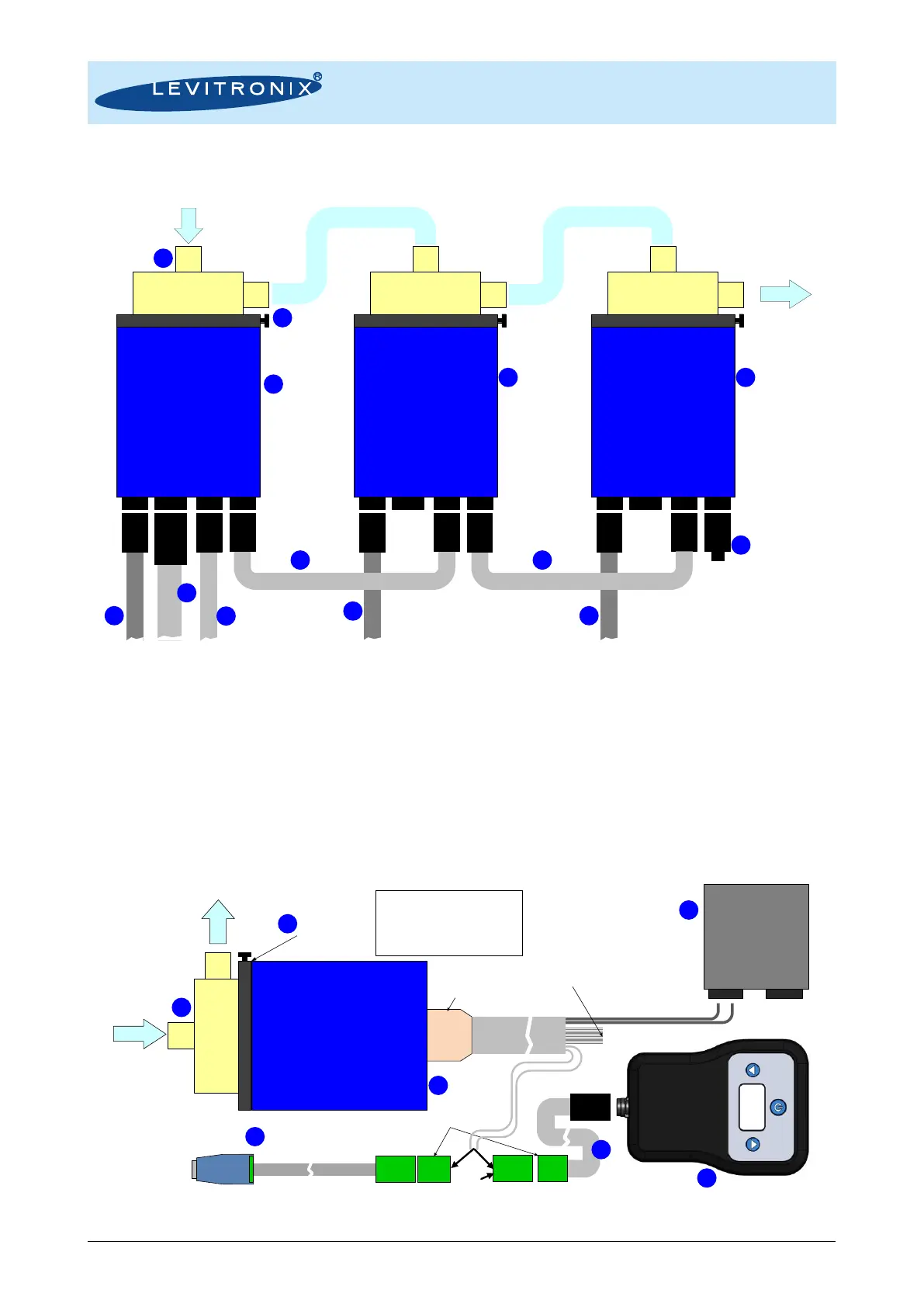

Figure 6: Multi-pump array for serial pumping with EasyConnect models
Note: Specific firmware for serial pumping as one unit available on request.
2.2.3 System Configurations for OEM Models
The OEM model, with one integrated cable only, is design for compact integration into an equipment. When
using the pump system in speed control mode, the speed can precisely be set via an analog input. Various
digital inputs and outputs allow controlling and monitoring of the system. A RS485 enables communication
with a PC with the Levitronix
®
Service Software. Hence parameterization, firmware updates and failure
analysis are possible. The RS485 can also be used as a fieldbus to implement more intelligent concepts of
pump control.
Figure 7: System configuration of OEM model for speed control
Integrated Pump Driver
EasyConnect Model
#1
Outlet
Inlet
Power
Supply
PLC
Fieldbus
OUT
Fieldbus
IN
IPS Cable Signal
Integrated Pump Driver
EasyConnect Model
#2
Power
Supply
PLC
Fieldbus
OUT
Fieldbus
IN
Integrated Pump Driver
EasyConnect Model
#3
Power
Supply
PLC
Fieldbus
OUT
Fieldbus
IN
IPS Cable Signal
24 VDC
Supply
24 VDC
Supply
24 VDC
Supply
IPS Cable Power
Remote Control of Array
over PLC or RS485
IPS Cable Signal
IPS Cable Signal
Fieldbus
Termination
Connector
Single-Use
Pump Head
Single-Use
Pump Head
Single-Use
Pump Head
Integrated Pump Driver
OEM Model
PLC Interface:
- Analog and digital IO s
- Remote control with speed signal
- Flowcontrol with external sensor
- Pressure control with ext. sensor
AC/DC
Power
Supply
(DIN-Rail)
AC InputDC Output
PC Connection:
- System configuration
- Firmware update
- Monitoring
Open
Wires
Screw type connector for
open-wires connection
included in converter cable
package.
Integrated
Driver Cable
Cable Bushing
DC Supply 24 V
Single
-Use
Pump Head
Outlet
Inlet
Bayonet Socket
with Locking Pin
USB to RS485
Converter Cable
User Panel
24VDC
Fieldbus
RS485
2b
2b
2b
7
7
7
1
3
9
8b
8a
8a
10
6
5a
1
3
2a
8b
11
Pin Designation
LUI-B.1 Cable 8b:
1: RS485+ 2: RS485-
3: GND 4: NC
5: NC 6: +24VDC
