4.2.3 Analog Input with 24VDC Supply
Pin#
Pin
Name
Wire
Color
1
Description
2
Standard
Designation
Typical Levels
Note
1
Supply+
--
24 VDC+
Supply
24 VDC
PTC fuse for protection.
Maximum load is 500 mA
3
.
3
Supply-
--
Ground
2
Signal-
--
Signal -
Pressure AnIn
4..20 mA = 0..5 bar
No galvanic isolation. Shunt resistance is 120Ω.
Standard designation is for a pressure sensor. Can be
customized.
4
Signal+
--
Signal +
5
NC
--
--
--
--
Do not use.
Table 11: Analog Input with 24VDC Supply (M12 female socket, 5 pos.)
1: Depends on used cable. 2: Designations for standard firmware.
3: Models older than 2018/19 it is 350 mA. 4: Not available on models older than 2018/19.

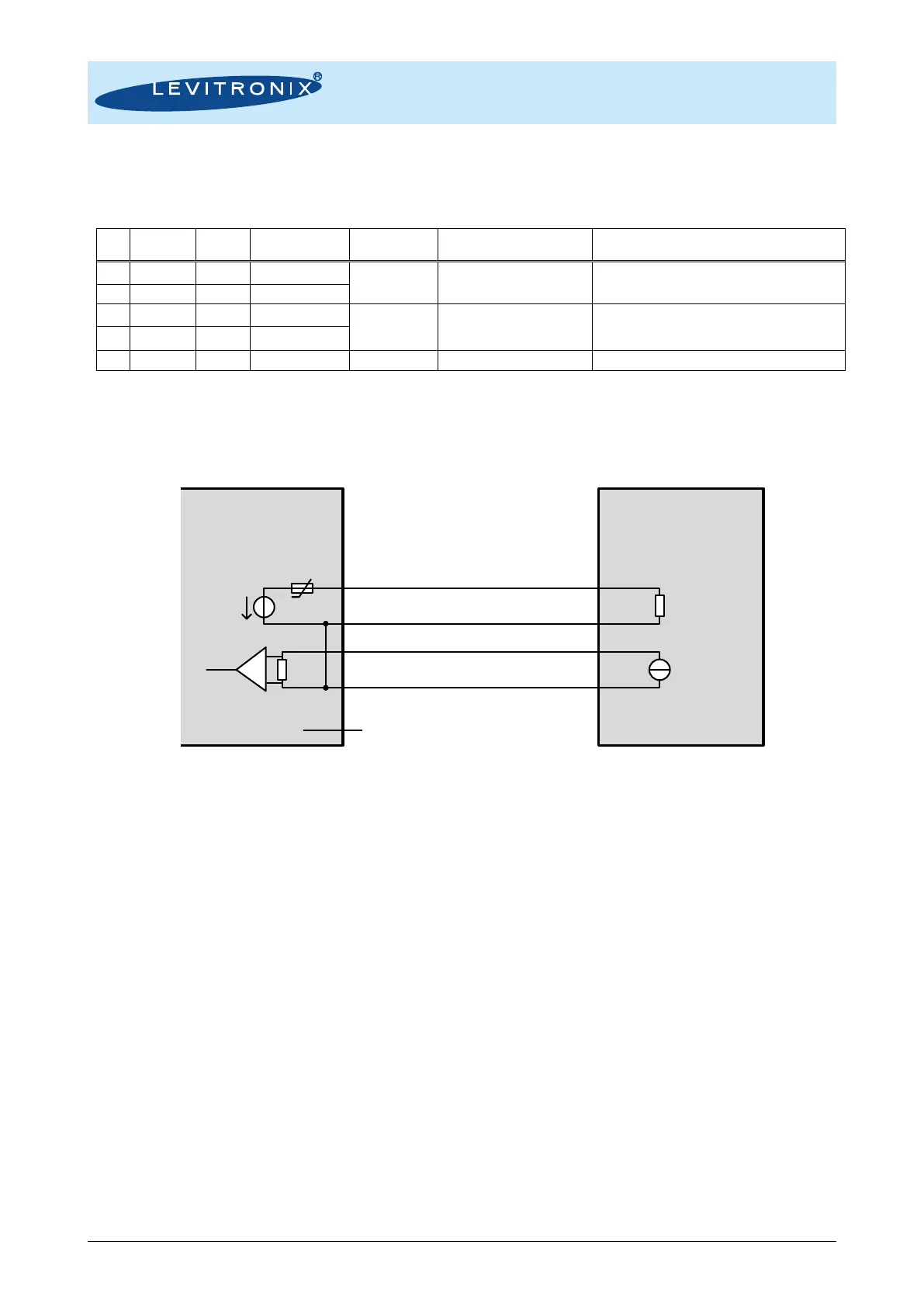

Figure 11: Connection example of Analog Input with 24VDC supply of console to sensor
Levitronix Console
Analog In / 24 VDC
Interface
24 VDC
max. 500 mA
0..20 mA
1: Supply+
3: Supply-
4: Signal+
2: Signal-
5: Do not use.
120 Ω
Typical Sensor
(4-20mA Signal Output
and 24 VDC Supply)
Sensor
Supply
