Levitronix PuraLev LCO-i100 User Manual

User Manual for LCO-i100 Console
www.levitronix.com
PL-4066-00, Rev03, DCO# 21-230
4
2 Specifications
2.1 Specification of Console Components
Pos.
Component
Article Name
Article #
Characteristics
Value / Feature
1
PuraLev
®
Console
LCO-i100.1-01
100-30501
Supply Voltage / Power
24 VDC with 50 W or 160 W supply (see Table 6)
Housing Rating /
Weight
IP65
2
/ 1.6 kg
Interfaces
Multi-touch screen 7”, 3 pressure sensors, 2 flow sensors, 1 temp. sensor
PLC (2 digital in/outputs, 1 analog in/output), LAN, USB
Pump Motors
Certifications
CE, IECEE CB scheme, ETL (NRTL) listed.
2
Table 1: Basic specifications of standard LCO-i100 console.
Note 1: AC/DC power supply and AC mains cable for various countries to be ordered separately according to Table 6. Note 2: Tested and designed for IP66. Not available on units older than 2018/19.
Pos.
Component
2
Article Name
Article #
Characteristics
Value / Feature
2a
Single-Use
Pump Head
DCP-30.2 (Barb)
1 3
DCP-30.1 (Triclamp)
1
(Needs pump head socket.)
100-90968
100-90959
Wet Materials
Max. Flow / Max. Diff.-Press.
Sterilization Methods
PP (FDA, USP Class VI, ADI) / Barb or Triclamp 3/8”
7.7 liters/min (2 gallons/min) / 1.0 bar (14.5 psi)
Gamma radiation up to 40 kGy.
2b
Multi-Use Pump Head
LPP-30.7 (no drain port)
Wet Materials / Fittings
Max. Flow / Max. Diff.-
Pressure
Sterilization Methods
PEEK, PTFE and EPDM (FDA, USP Class VI,
BSE/TSE/animal-free) / Triclamp 3/8”)
3.9 liters/min (1 gallons/min) / 2.7 bar (39 psi)
CIP (clean in place), Autoclaving
2c
Driver
IPD-30.8-03-02 (SU)
IPD-30.8-03-xx (MU)
(MBP-i30.1 included)
100-10104
100-10212
Housing
Epoxy (anti-corrosive) coated alu., IP65 (tested for IP67)
Cable / Connectors
1 x 0.3m cable with PVC jacket / circular connector
2d
Pump Head Socket
PHS-i30.1
100-90947
Mounting Type / Material
Bayonet mount with locking pin made of anodized aluminum
3a
Single-Use Pump Head
DCP-200.2 (Triclamp)
1
DCP-200.3 (Barb)
1 3
(Needs pump head socket.)
100-90734
100-90792
Wet Materials
Max. Flow / Max. Diff.-Press.
Sterilization Methods
PP (FDA, USP Class VI, ADI) / Triclamp or Barb ½”
17.4 liters/min (4.6 gallons/min) / 2 bar (29 psi)
Gamma radiation up to 40 kGy.
3b
Multi-Use Pump Head
LPP-200.17 (with drain
port)
LPP-200.16 (no drain port)
100-90864
100-90863
Wet Materials / Fittings
PVDF, PFA, EPDM (FDA, USP Class VI, ADI) / Triclamp ½”
Max. Flow / Max. Diff.-Press.
17.4 liters/min (4.6 gallons/min) / 2.4 bar (35 psi)
Sterilization Methods
CIP (clean in place), Autoclaving
3c
Driver
IPD-100.3-03-02 (SU)
IPD-100.3-03-03 (MU)
100-10105
100-10137
Housing
Epoxy (anti-corrosive) coated alu., IP65 (tested for IP67)
Cable / Connectors
1x 0.3m cable with PVC jacket / circular connector
3d
Pump Head Socket
PHS-i100.1
100-91053
Mounting Type / Material
Bayonet mount with locking pin made of anodized aluminum
4a
Single-Use Pump Head
DCP-600.2 (Triclamp)
1
(Needs pump head socket.)
100-90784
Wet Materials
Max. Flow / Max. Diff.-Press.
Sterilization Methods
PP (FDA, USP Class VI, ADI) / Triclamp 1”
75 liters/min (20 gallons/min) / 3.1 bar (45 psi)
Gamma radiation up to 40 kGy.
4b
Driver
IPD-600.3-30-02
100-10197
Housing
Cable / Connectors
Epoxy (anti-corrosive) coated alu., IP65 (tested for IP67)
1x 3m cable with PVC jacket / circular connector
4c
Pump Head Socket
PHS-600.1
100-90696
Mounting Type / Material
Bayonet mount with locking pin made of anodized aluminum
Table 2: Specification of standard pump motors and single-use pump heads compatible with LCO-i100 console.
Note 1: Gamma irradiation option available. Note 2: See Levitronix
®
technical brochures of PuraLev
®
i30SU/i30MU/100SU/i100MU/600SU for detailed specifications. Note 3: Sterile fitting options available.

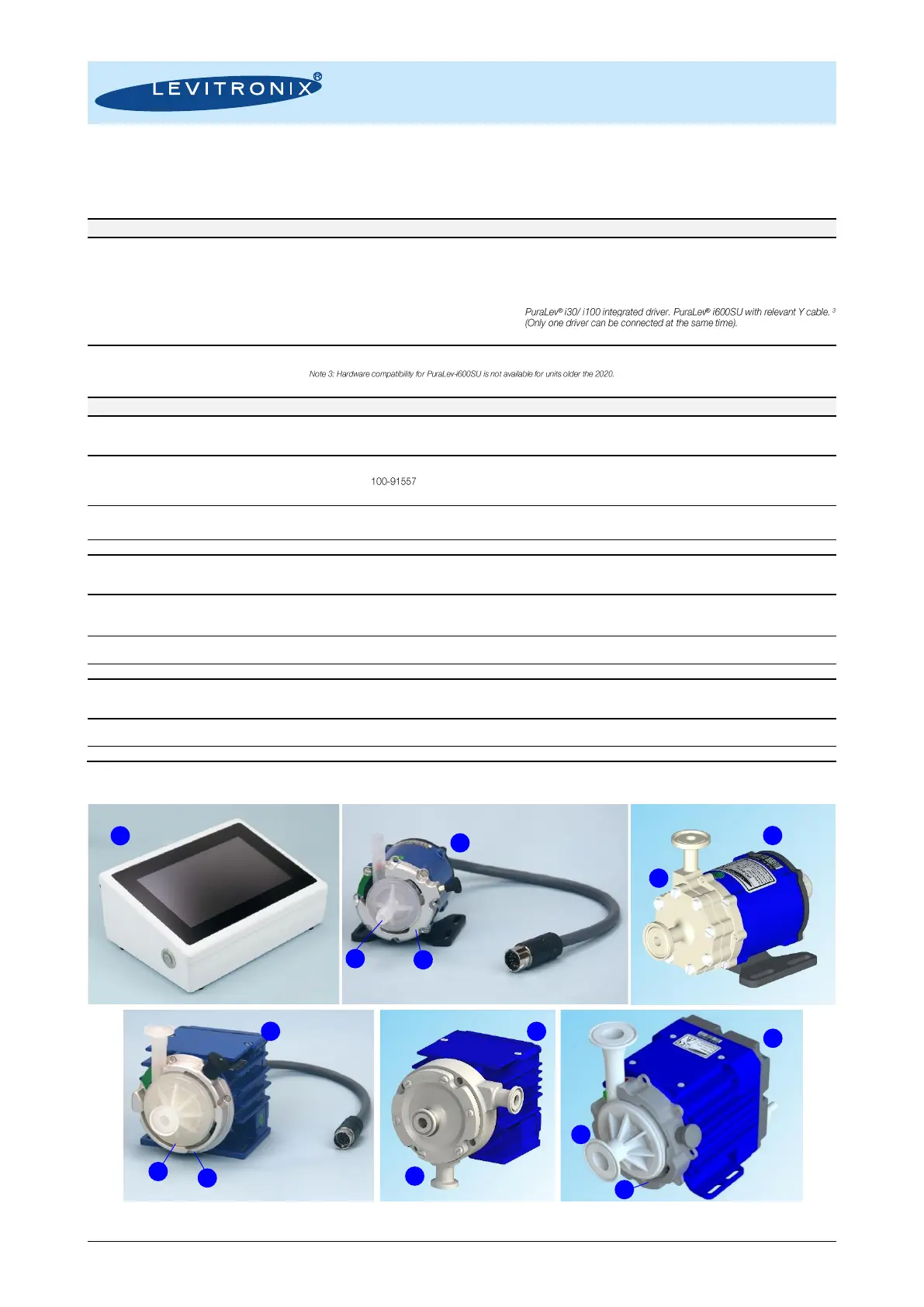

Figure 1: LCO-i100 console with compatible drivers and pump heads
1
3a
3d
3c
2a
2d
2c
3b
3c
4a
4b
4c
2b
2b
