Levitronix PuraLev LCO-i100 User Manual

User Manual for LCO-i100 Console
www.levitronix.com
PL-4066-00, Rev03, DCO# 21-230
8
2.2.2 Extended System Configuration
Figure 6 illustrates the extended capabilities of the console for advanced fluid handling applications. The
connection of up to 3 single-use pressure sensors enables pressure monitoring. A standard interface for a
temperature sensor facilitates temperature monitoring.

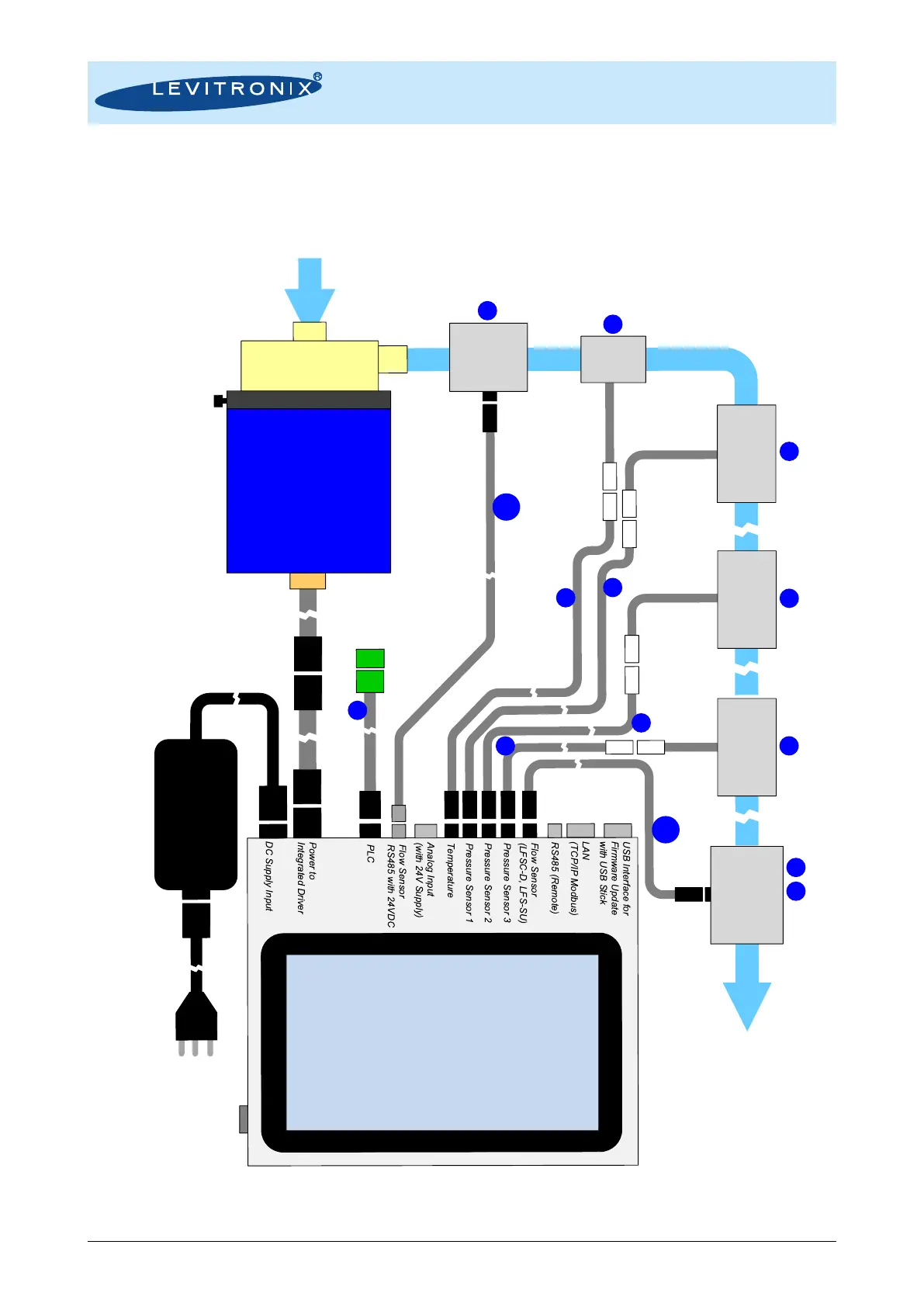

Figure 6: Extended system configuration of console for advanced fluid handling
Note 1: For PuraLev® i600 pump system the power supply and console connection concept shown in Error! Reference source not found. has to be used.
Single-Use
Pump Head
Fluid
Out
Pump Head Socket
Fluid
In
AC
Mains
Cable
AC Supply
Input
On-Off
Button
PuraLev
®
Console
Flow
Sensor
LFSC-iX
Inline
Temp.
Sensor
Pressure
Sensor 1
Pressure
Sensor 2
Pressure
Sensor 3
Flow
Sensors
LFSC-D
LFS-SU
AC/DC
Supply
Integrated Pump
Driver OEM Model
(with Connector)
Multi-Touch
Screen 7"
External
PLC
11
11
8
12
7
14
9
5
6
8
8
11
10b
10a
