Lewmar VX Series User Manual

ON
Electric Switches
UP DOWN
Remote Handheld
Control
Rocker Switch
(68000593)
UP
DOWN
Circuit Breaker
(See § 4.2)
Battery
12 VDC
Contactor
(68000939)
Reed
Switch
Sensor
for chain
counter
(if fitted)
Fuse
3 A
Optional accessories
Optional Wire-
less Control
Available(See § 5.3)
A1
A2

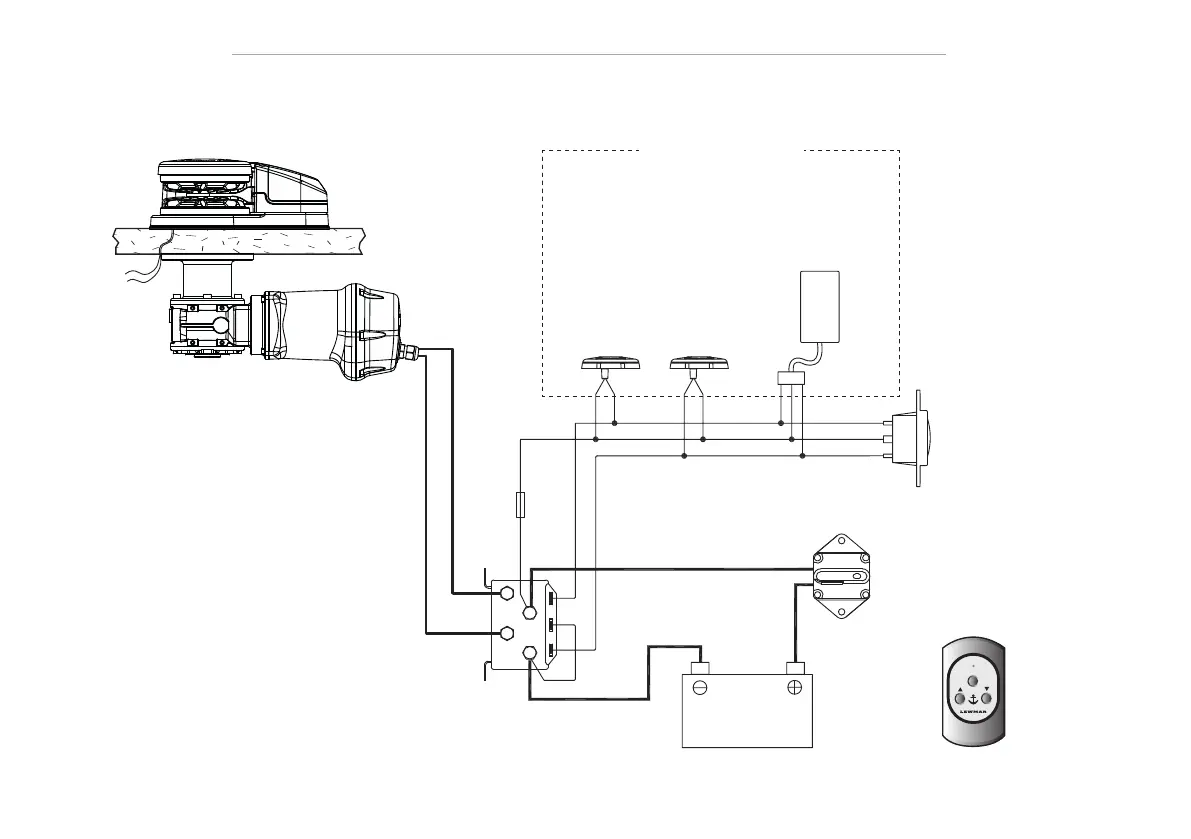

4.5 VX1 - Wiring diagram using contactor provided (Part No 68000939)
Installation instructions are supplied separately with any accessories.
Switch wire thickness:1.5 mm2 (16 AWG)
