Lewmar VX Series User Manual

Reed
Switch
Sensor
for chain
counter
(if fitted)
ON
Electric Switches
UP DOWN
Remote Handheld Control
Rocker Switch
(68000593)
UP
DOWN
Circuit Breaker
(See § 4.2)
Battery
12 VDC
Contactor Box
(68000965)
Fuse
3 A
Optional accessories
Optional Wireless
Control Available
(See § 5.3)
A1
A2

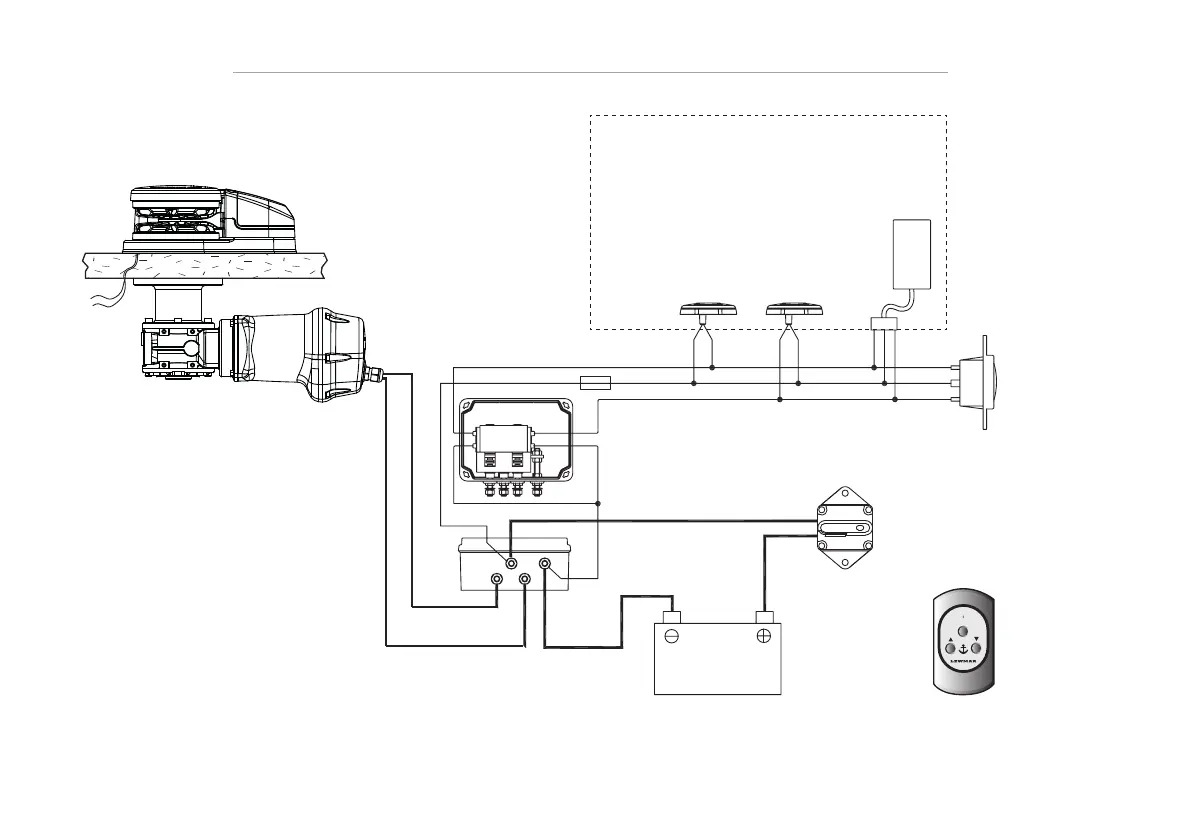

4.6 VX1 - Wiring diagram if a contactor box (Part No 68000965) is used
Installation instructions are supplied separately with any accessories.
