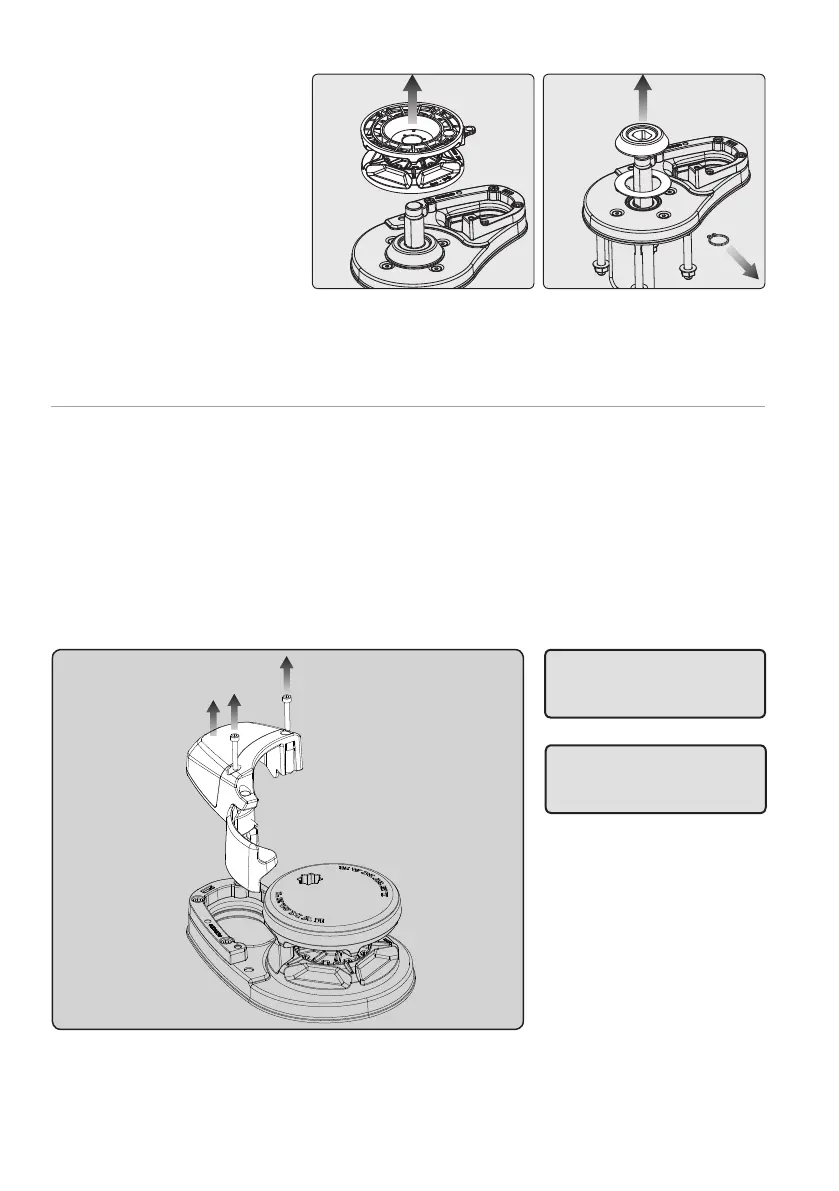

4. Remove gypsy from windlass
5. If replacing lower cone and washer
(included in Gypsy replacement kit),
remove the cone retaining circlip
from the sha and li off the cone
and washer from the windlass.
Assemble the new gypsy in reverse order, note that the part number engraved on the stripper ring should face
upwards.
When re-assembling the cone and gypsy, add a small smear of grease to the contact surfaces.
WARNING! Isolate the
windlass using circuit
breaker/isolator.
WARNING! Ensure rode is
adequately secured to an
independent strong point.
6.3 VX1 - VX1L Control arm replacement/service
VX1 & VX1L are factory fitted with control arms as standard. VX1 & VX1L come with a control arm that is
captive with the unit cover.
Remove Chain cover, proceed as sec.6.3-1
1. Unscrew chain cover using a 4 mm Allen key.
• Remove control arm by releasing the t-clip on the hinge pin.
• Wash with clean water (Not Jetwash). Replace components, (if necessary) and assemble in reverse order.
• Grease spring on re-assbembly
