Lewmar VX Series User Manual

6.5-1
6.4-1
6.4-2
6.4-3a 6.4-3b

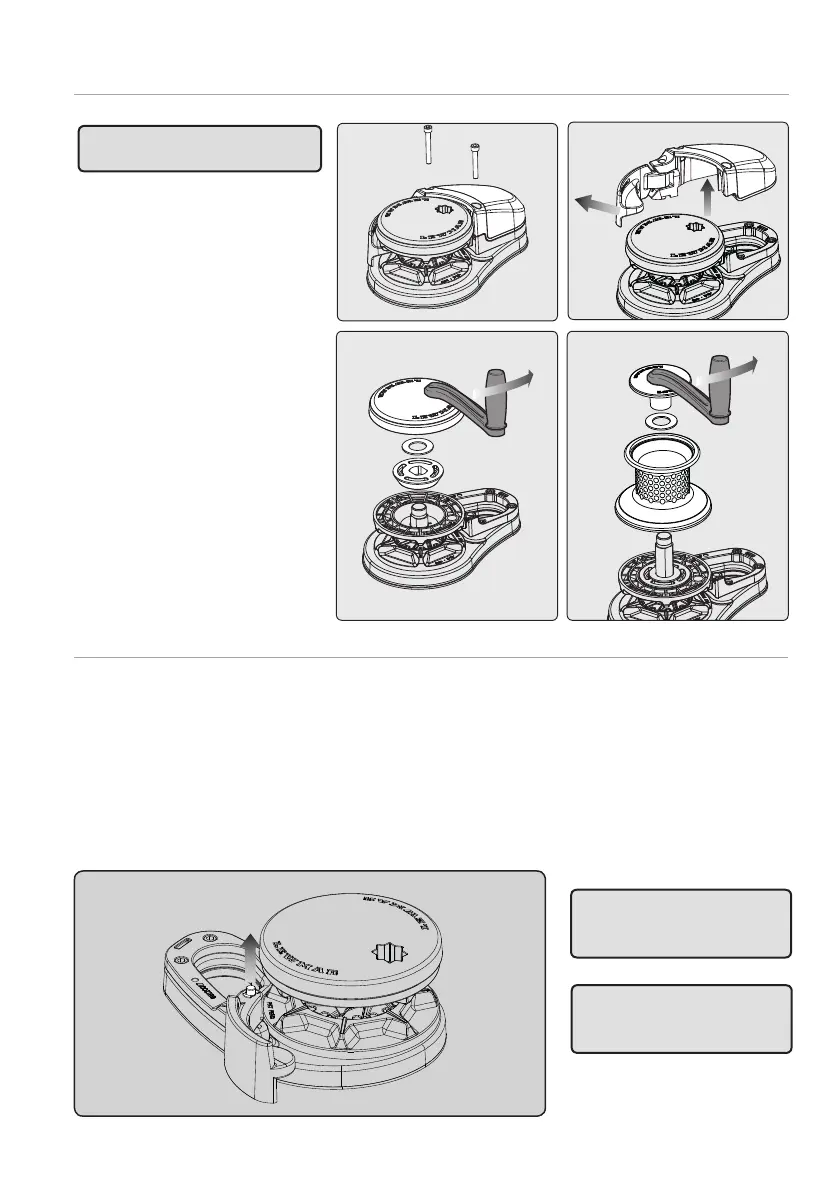

6.4 VX2/3 Gypsy replacement/service
 WARNING! Isolate the windlass
using circuit breaker/isolator.
3a. Gypsy only
Using windlass handle remove top
cap, washer and upper cone from
sha.
3b. Gypsy/ drum
Using windlass handle undo drum
top cap and remove drum, drum
washer, upper cone washer and
upper cone from sha
1. Remove chain cover screw using
5mm allen key
2. Pull control arm out and li chain
cover and control arm assembly
from deck unit.
 WARNING! Isolate the
windlass using circuit
breaker/isolator.
 WARNING! Ensure rode is
adequately secured to an
independent strong point.
6.5 VX2/3 Control arm replacement/service
VX2/3 are factory fitted with control arms as standard.
Remove chain cover, proceed as sec.6.5-1.
1. Unscrew control arm shoulder screw using a 5 mm Allen key.
• Remove control arm and torsion spring from the base plate.
• Wash with clean water (Not Jetwash). Replace components, (if necessary) and assemble in reverse order
• Grease spring on re-assbembly
4. Remove gypsy
5.
Replace & re-assemble
