Lexicon LXP-5 - REV 1 User Manual

1-6
LXP-5 Owner's Manual
Channel Input
(pan left)
Channel Input
(pan right)
LXP-5
L Output
LXP-5
R Output
Synth
R Output
Synth
L Output
BYPASS
SELECT
LXP-5
LEARN
exicon
EDIT
1
2
3
4
5
6
7
8
PRESET USER
INPUT
MIX
OUTPUT
A
B
C
PITCH
DELA
Y
CHORUS
MULTI

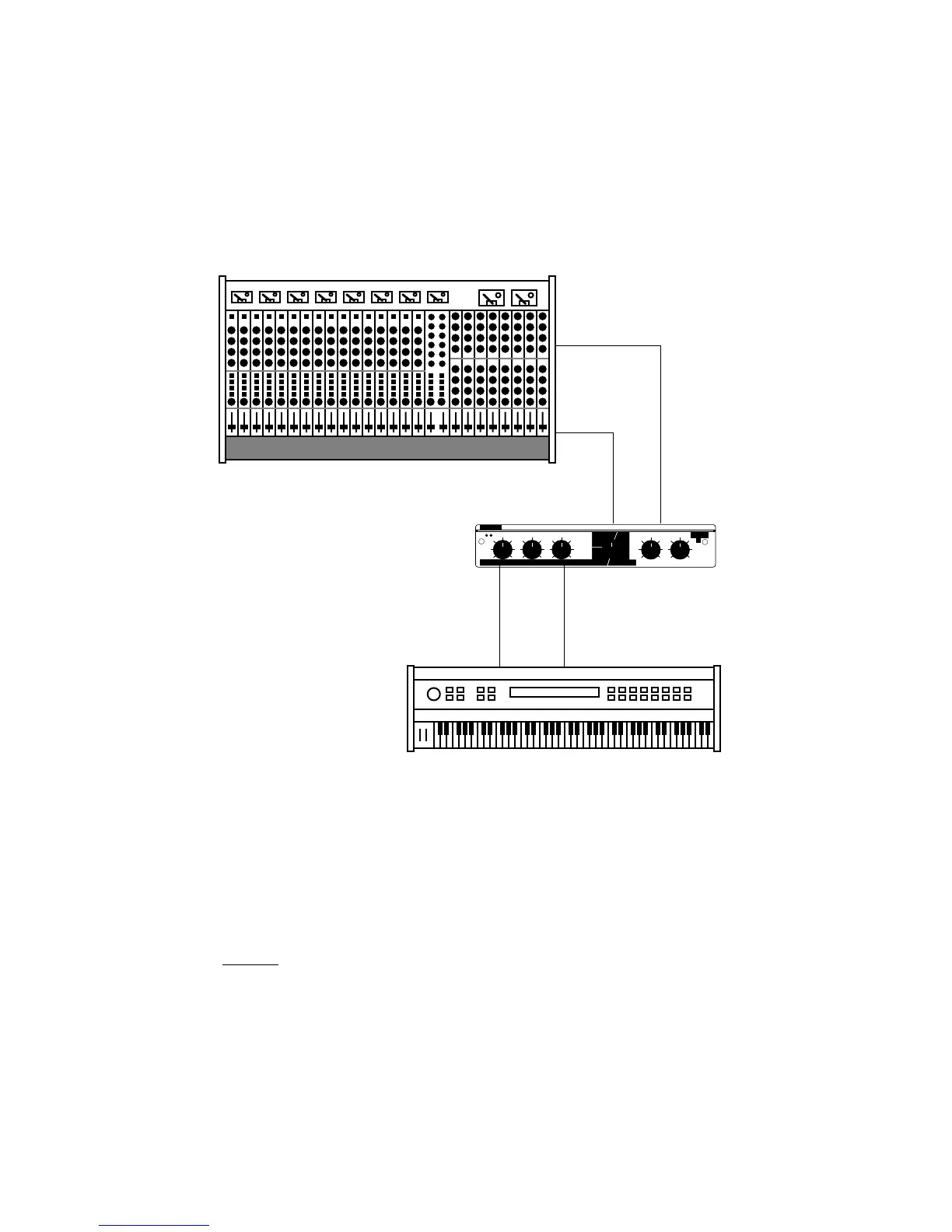

Connection between instrument and console
In some applications (such as when an LXP-5 is used for a single instrument)
it may be desirable to patch the LXP-5 between the instrument and console.
This makes it possible to keep the LXP-5 up on stage with other MIDI gear,
rather than in the console effects rack, making MIDI control much easier.
In this configuration, the LXP-5 front panel MIX control is used to set the
balance between wet and dry sound.
In In
