Lexicon LXP-5 - REV 1 User Manual

1-7
Installing the LXP-5
Amp
R Input
Amp
L Input
Guitar
Output
LXP-5 Input
(L or R)
LXP-5
L Output
LXP-5
R Output
BYPASS
SELECT
LXP-5
LEARN
exicon
EDIT
1
2
3
4
5
6
7
8
PRESET USER
INPUT
MIX
OUTPUT
A
B
C
PITCH
DELA
Y
CHORUS
MULTI

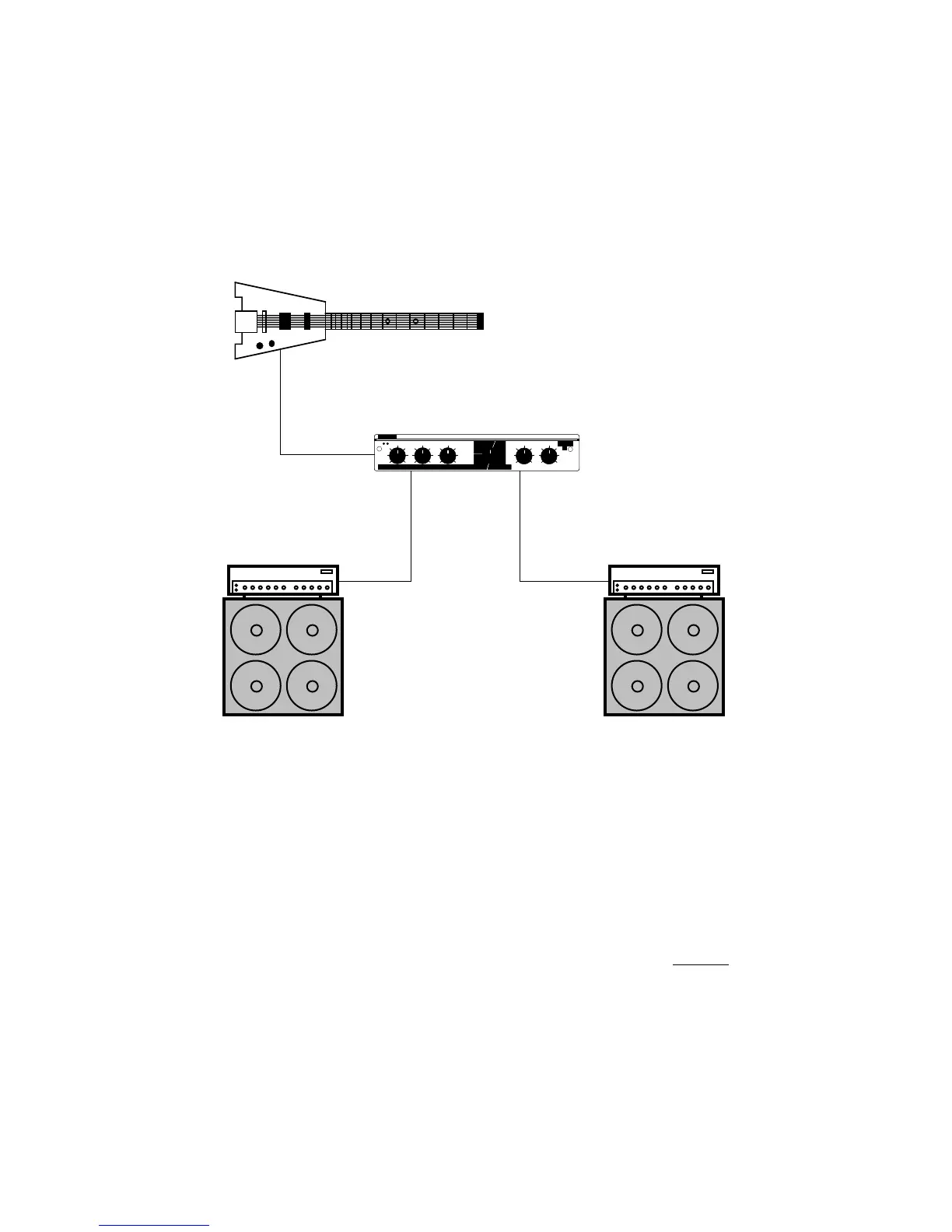

Connection between instrument and amplifier
For a very spacious guitar sound, connect the LXP-5 between a guitar and
two amp and speaker stacks. The only problem with this setup is that if you
use overdrive distortion created by the amplifier, changing settings on the
LXP-5 also affects the quantity and quality of your distortion. If you use a
separate distortion box, you can get around this problem by connecting it
before the LXP-5. If you prefer amplifier-generated distortion, try the setup
shown on the next page.
