LXP-5 Owner's Manual
Direct or
Preamp output
L and R Speaker Outputs from Power Amp
Amp or
Preamp
Input
Guitar
Output
Amp
R Input
Amp
L Input
WARNING! Never connect speaker outputs from a
guitar amp to the LXP-5. Doing so can cause serious
damage which is not covered by the LXP-5 warranty.
On some guitar amplifiers it is very easy to accidentally
use a speaker output instead of a direct or effects
output. BE CAREFUL!
LXP-5
L Output
LXP-5
R Output
LXP-5 Input (L or R)

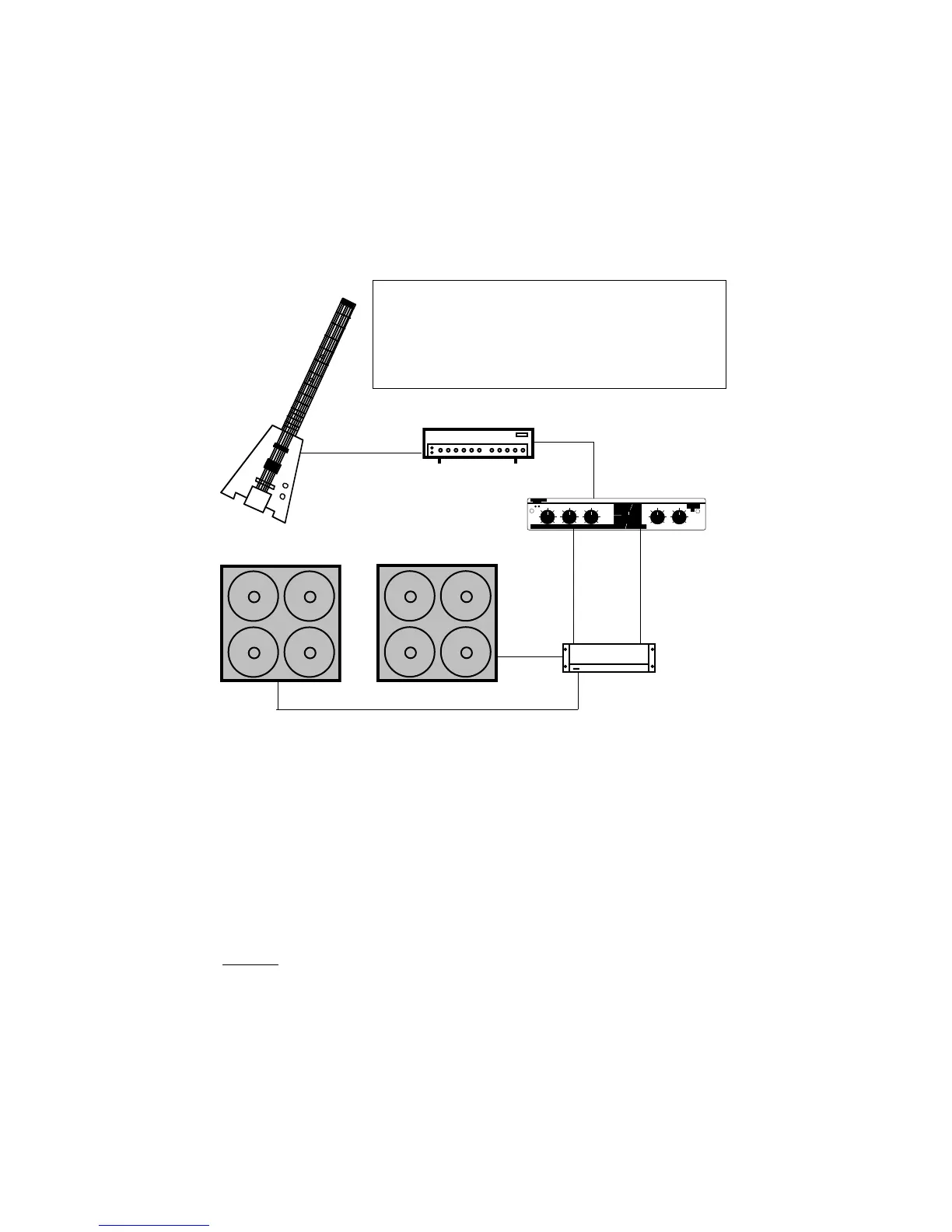

Connection between instrument preamp and power amplifier(s)
If you use overdrive distortion, it's usually better to create the overdrive
before sending the signal to the LXP-5 to ensure that the effects don't
change the quantity and quality of your distortion. In this setup, you need a
guitar preamplifier or a guitar amp with a direct output. Feed this signal to
either of the LXP-5 inputs, and then on to a stereo power amp or a pair of
guitar amps. (A few guitar amplifiers become unhappy if they are operated
without speakers connected. Consult the amp manufacturer for details.)
You can use the effects send and return connectors on a mono guitar amp
to obtain similar results. Adjust the LXP-5 output level so that the amp
produces the same output with the LXP-5 as it does without it.
BYPASS
SELECT
LXP-5
LEARN
exicon
EDIT
1
2
3
4
5
6
7
8
PRESET USER
INPUT
MIX
OUTPUT
A
B
C
PITCH
DELA
Y
CHORUS
MULTI
