Lexington Forge CSDV30DNV - Horizontal Venting with Multiple Elbows

58D6056 19
H
V
H
1
HOT
H
H
1
V
1
V
VENT INSTALLATION

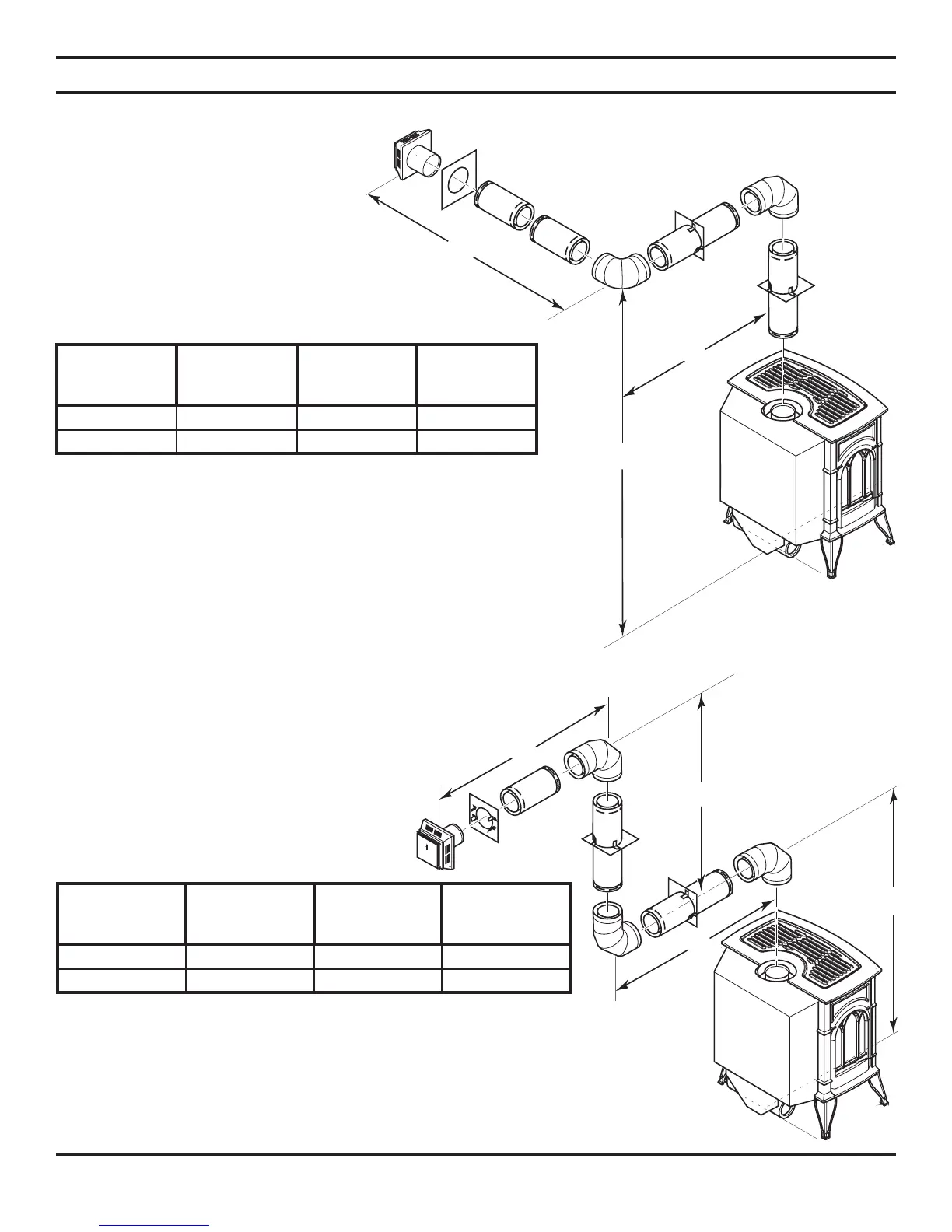

VENTING WITH TWO 90° ELBOWS
Figure 20 - Horizontal Termination
Confi guration for Rigid Venting Using
Two 90° Elbows
VENTING WITH THREE 90° ELBOWS
Figure 21 - Horizontal Termination Confi guration
for Rigid Venting Using Three 90° Elbows with
Termination at 90° with Stove
NOTE: Add
1
/4" rise per 12"
horizontal length of pipe.
NOTE: Add
1
/4" rise per 12" horizontal
length of pipe.
Table 2 - Venting with Two 90° Elbows
Table 3 - Venting with Three 90° Elbows
Maximum
Horizontal (H)
Vertical
Minimum
CSDV20 (V)
Vertical
Minimum
CSDV30 (V)
Vertical
Minimum
CSDV40 (V)
2' 41.50" 52.50" 54.50"
20' 95.25" 98.75" 102.25"
Maximum
Horizontal (H)
Vertical (V+V1)
Minimum
CSDV20 (V)
Vertical (V+V1)
Minimum
CSDV30 (V)
Vertical (V+V1)
Minimum
CSDV40 (V)
2' 41.50" 52.50" 54.50"
20' 95.25" 98.75" 102.25"
