Installing internal options
Accessing the system board to install internal options
CAUTION—SHOCK HAZARD: When accessing the system board, turn the printer off, and then unplug the power
cord from the wall outlet before continuing. If you have other devices attached to the printer, then turn them
off as well and unplug any cables going to the printer.

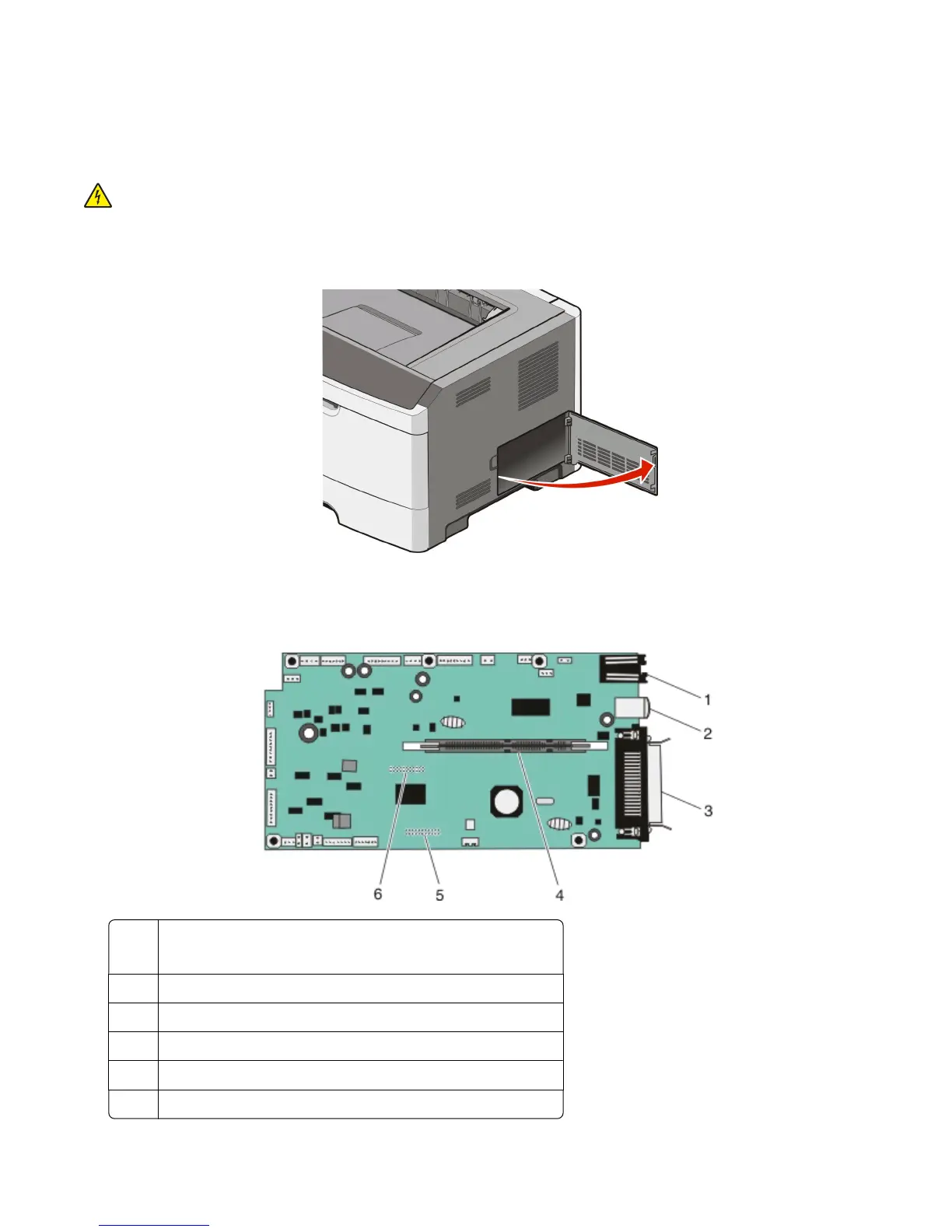

1 As you face the printer, the system board door is on the right side. Open the system board door.
2 Use the following illustration to locate the appropriate connector.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any system board electronic components or connectors.
1
Ethernet connector
Note: The Ethernet port is a feature on network models only.
2
USB port
3
Parallel connector
4 Memory card connector
5
Optional card connector
6 Optional card connector
Additional printer setup
15
