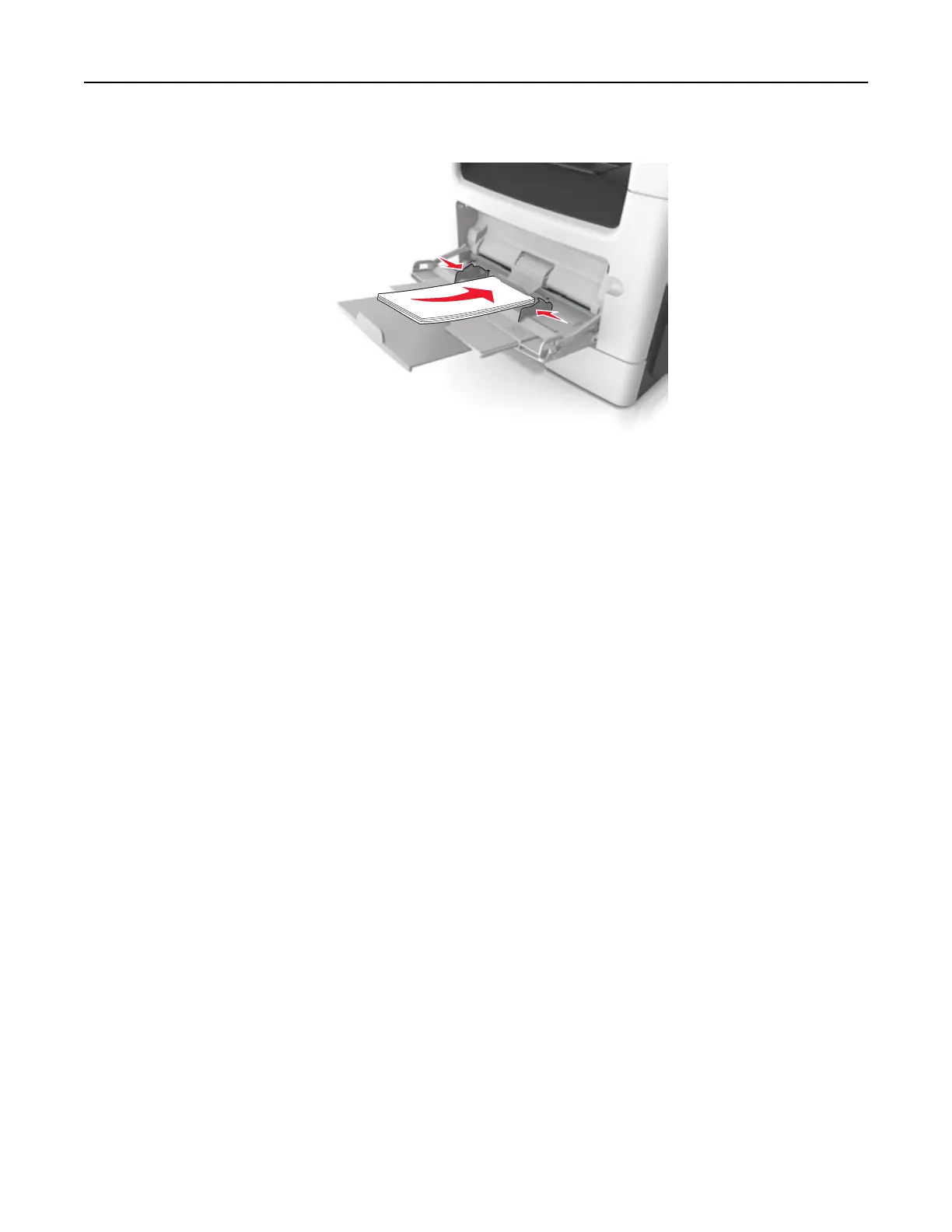

• Load envelopes with the flap on the left side facedown.
Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated
linings, or self‑stick adhesives. These envelopes may severely damage the printer.
5 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper or
specialty media loaded in the multipurpose feeder.
Linking and unlinking trays
Linking and unlinking trays
Note: This feature applies only in network printers.
1 Open a Web browser, and then type the printer IP address in the address
field.
Notes:
• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears
as four sets of numbers separated by periods, such as 123.123.123.123.
• If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2 Click Settings > Paper Menu.
3 Change the tray settings to specify the paper size and type for the tray.
• To link trays, make sure the paper size and type for the tray match with that of the other tray.
• To unlink trays, make sure the paper size or type for the tray does not match with that of the other tray.
4 Click Submit.
Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the
printer. The temperature of the fuser varies according to the
specified
paper type. Printing issues may occur
if settings are not properly configured.
Loading paper and specialty media 39

Lexmark MX317dn Specifications

General

Certification	ENERGY STAR, Blue Angel RAL-UZ-171, ICES-003 Class B, BSMI Class B, VCCI Class B, US FDA, UL 60950-1, FCC Class B, cUL CAN/CSA-C22.2 60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62301 Class B, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class B, EuP, EN 55024, UL), EFTA (CE), KCC, CCC, CECP, CEL, C-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, MET-I, ISO 532B, ECMA-370, TED, GOST-R, SII, TER
Envelopes sizes	7 3/4, 9, 10, DL
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
Duplex copy speed (black, US Letter)	17 ppm
Copy speed (black, normal quality, A4)	33 cpm
Scan to	E-mail, FTP, USB
Scanner type	Flatbed & ADF scanner
Maximum scan area	216 x 356 mm
Scan speed (black)	42 ppm
Scan speed (color)	19 ppm
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Optical scanning resolution (black)	1200 x 600 ppi
Optical scanning resolution (color)	600 x 600 ppi
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax transmission speed	3 sec/page
Digital sender	No
Printing colors	Black
Maximum duty cycle	50000 pages per month
Recommended duty cycle	250 - 6000 pages per month
Number of print cartridges	1
Page description languages	Microsoft XPS, PCL 5e, PCL 6, PDF 1.7, PPDS, PostScript 3
Cabling technology	10/100Base-T(X)
Security algorithms	SNMPv3
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	-
Supported network protocols (IPv4)	TCP/IP
Display	LCD
Product color	Black, Grey
Display diagonal	2.4 \
Market positioning	Business
Display number of lines	2 lines
Internal memory	256 MB
Processor cores	2
Processor frequency	800 MHz
Sound pressure level (copying)	54 dB
Sound pressure level (printing)	53 dB
Sound pressure level (scanning)	55 dB
Sound pressure level (quiet mode)	49 dB
USB connector	USB Type-B
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (off)	0.4 W
Power consumption (ready)	9 W
Power consumption (sleep)	3.2 W
Power consumption (copying)	540 W
Power consumption (printing)	520 W
Power consumption (scanning)	20 W
Power consumption (average operating)	- W
Energy Star Typical Electricity Consumption (TEC)	1.8 kWh/week
Sustainability certificates	Blue Angel, ENERGY STAR
Package depth	550 mm
Package width	485 mm
Package height	571 mm
Package weight	22500 g
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Paper input type	Paper tray
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	850 sheets
Maximum number of input trays	3
Auto document feeder (ADF) input capacity	50 sheets
Included cartridge capacity (black)	2500 pages

Weight and Dimensions

Depth	472 mm
Width	399 mm
Height	468 mm
Weight	20000 g
