Lexmark XC2132 Service Manual

Installation notes:

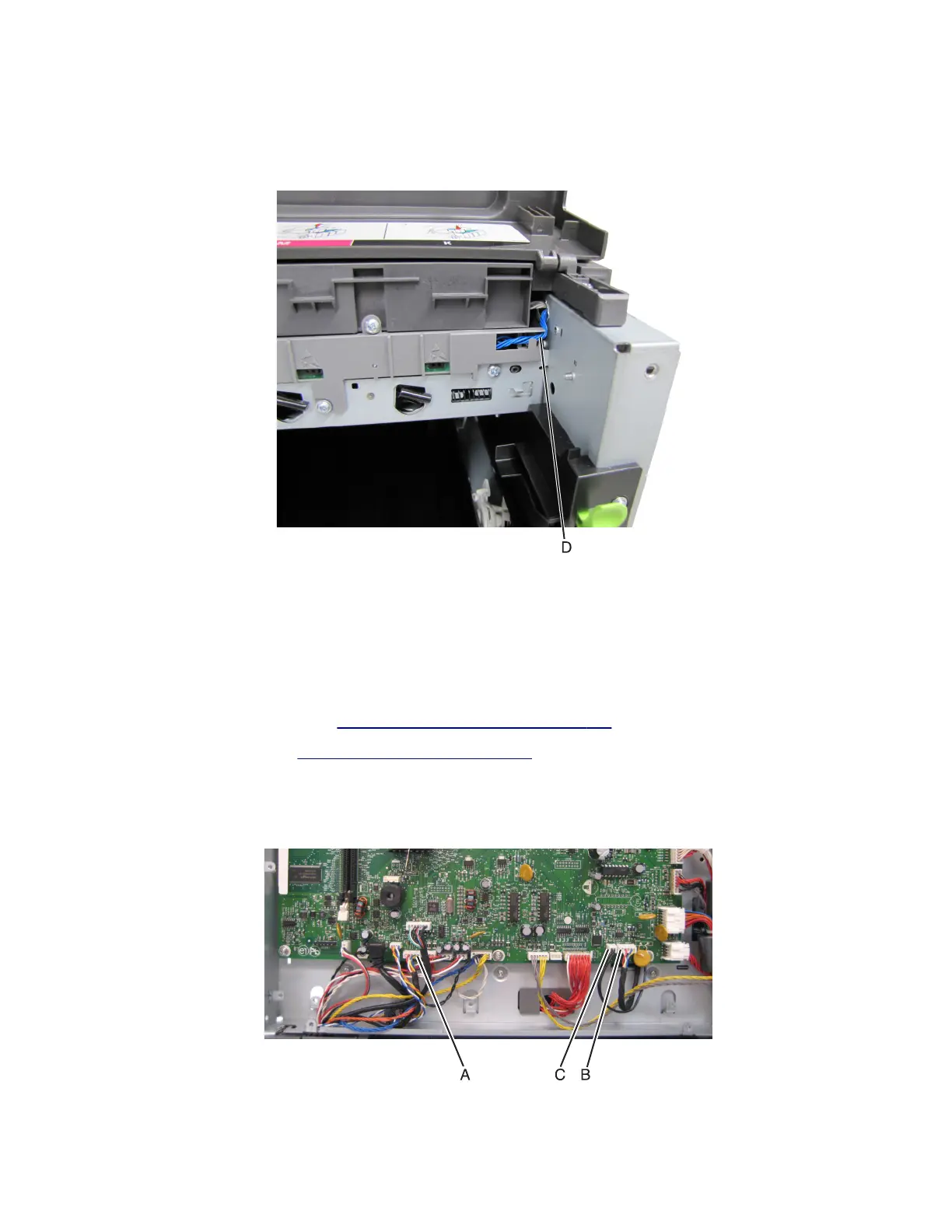

• Be sure the cable (D) runs through the retainer.
• The toner meter cycle card is a tight fit. Insert the bottom edge inside the frame, and then push down on the
top edge to clear the top cover.
Toner density sensor (TDS) (left or right sensor) removal
Note: The toner density sensor is also called the toner patch sensor (TPS).
Note: The toner density sensors are the same, but the left sensor has a thermistor attached which needs to be
removed when you install a new TDS on the left side. Reinstall the thermistor on the new TDS.
1 Remove the transfer module. See “Transfer module removal” on page 290.
2 Remove the rear cover. See “Rear cover removal” on page 307.
3 Disconnect the toner density sensor cable from JTDS1 connector (A) or JTDS2 connector (B) on the controller board.
If you are removing the left toner density sensor, also disconnect the thermistor from JFUSES1 connector (C) on
the controller board.
Note: Be sure to pay close attention to the routing of all cables for reinstallation.
7527
Repair information
260

Lexmark XC2132 Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	10.5 s
Time to first page (color, normal)	11.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	copy, print
Digital sender	No
Maximum duty cycle	85000 pages per month
Recommended duty cycle	1500 - 7000 pages per month
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
Time to first copy (black, normal)	10.8 s
Time to first copy (color, normal)	11.6 s
Copy speed (black, normal quality, A4)	30 cpm
Scanner type	Flatbed & ADF scanner
Optical scanning resolution	600 x 1200 DPI
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum print size	210 x 297 mm
Paper tray media types	Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Grey, White
Display diagonal	7 \
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Internal memory	1024 MB
Card reader integrated	-
Maximum internal memory	3072 MB
Sound pressure level (copying)	50 dB
Sound pressure level (scanning)	49 dB
Power consumption (average operating)	- W
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	589 mm
Width	444 mm
Height	470 mm
