Lexmark XC2132 Service Manual

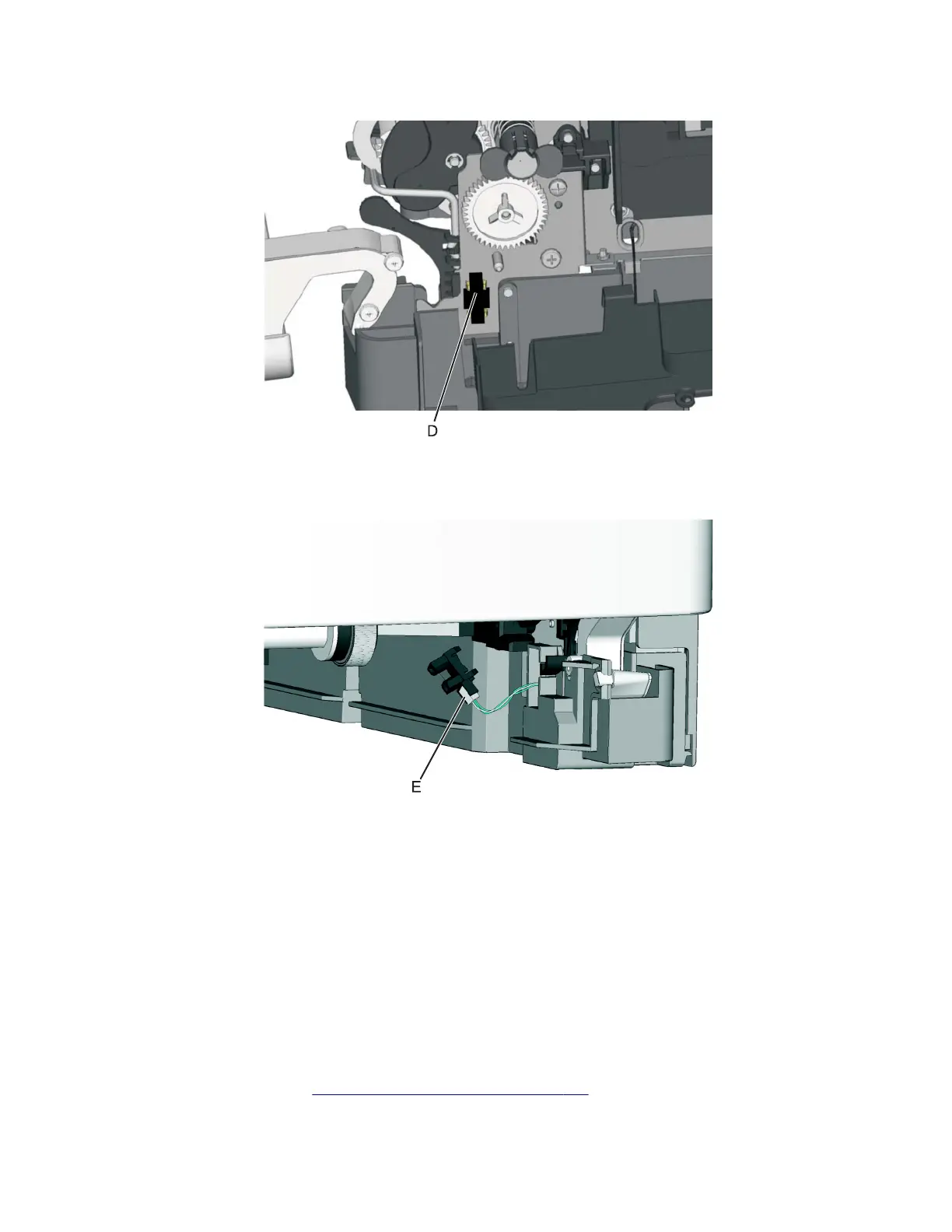

4 Remove the sensor plate (D).
5 Push in on the latches to disconnect the duplex sensor from the printer.
6 Disconnect the cable (E) from the duplex sensor.
Installation notes:
a Clean the contact surface where you removed the sensor retaining plate, or where you need to install the new
one.
b Install the new sensor.
Note: Make sure the clamps on the legs of the sensor latch to the metal frame.
c Remove the backing from the new plate, and place the plate on the surface between the sensor mounting
latches.
Tray present sensor removal
1 Remove the media tray.
2 Remove the imaging unit. See “Imaging unit (IU) removal” on page 267.
7527
Repair information
303

Lexmark XC2132 Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	10.5 s
Time to first page (color, normal)	11.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	copy, print
Digital sender	No
Maximum duty cycle	85000 pages per month
Recommended duty cycle	1500 - 7000 pages per month
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
Time to first copy (black, normal)	10.8 s
Time to first copy (color, normal)	11.6 s
Copy speed (black, normal quality, A4)	30 cpm
Scanner type	Flatbed & ADF scanner
Optical scanning resolution	600 x 1200 DPI
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum print size	210 x 297 mm
Paper tray media types	Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Grey, White
Display diagonal	7 \
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Internal memory	1024 MB
Card reader integrated	-
Maximum internal memory	3072 MB
Sound pressure level (copying)	50 dB
Sound pressure level (scanning)	49 dB
Power consumption (average operating)	- W
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	589 mm
Width	444 mm
Height	470 mm
