SRS curtain shield airbags
• Can help protect primarily the head of occupants in the outer seats
• Can help prevent the occupants from being thrown from the vehicle in the event of vehi-
cle rollover

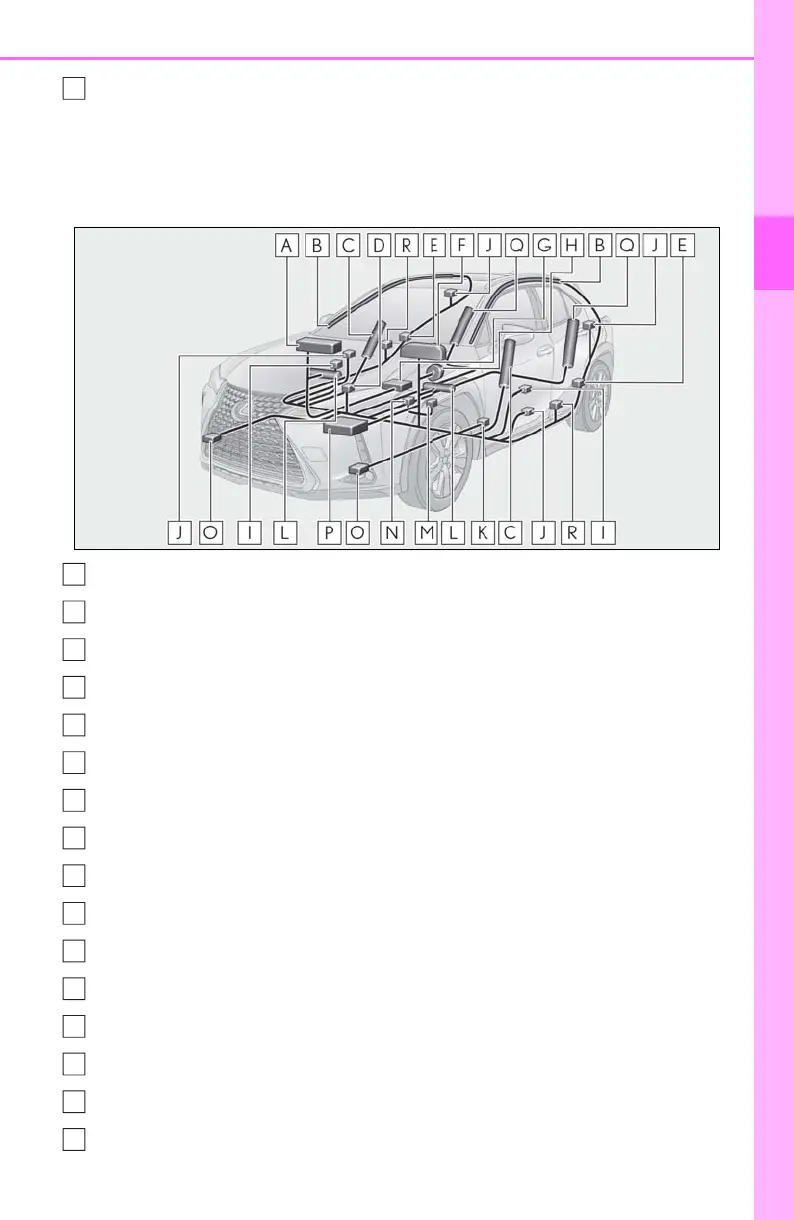

■ SRS airbag system components
Front passenger airbag
Curtain shield airbags
Front side airbags
“AIR BAG ON” and “AIR BAG OFF” indicator lights
Side impact sensors (rear)
SRS warning light
Front passenger occupant classification system (ECU and sensors)
Driver airbag
Side impact sensors (front door)
Seat belt pretensioners and force limiters
Driver’s seat position sensor
Knee airbags
Driver’s seat belt buckle switch
Front passenger’s seat belt buckle switch
Front impact sensors
Airbag sensor assembly
