Tooling

Tools and Materials Needed

• Set of metric Allen keys with ball ends

• Set of metric wrenches

• Crosshead screwdriver

• Grippers or pliers

• Tooling/die set (Upper Punch, Die, and Lower Punch)

• Hammer (if Die is diﬃcult to remove)

• Disposable latex/rubber gloves (for food grade products and to protect hands from grease)

• Hairnet and/or beard net (food grade products only)

• Sterile shoe covers (food grade products only)

If you want to change the shape and diameter of the tablet, or if the Upper Punch, Lower Punch,

and/or Die you currently have is damaged, it is necessary to change the Tooling.

To buy new Tooling from LFA, simply go to https://www.lfatabletpresses.com/products/tablet-

press-tooling

To watch a video of a TDP

Tooling change, go to https://www.lfatabletpresses.com/videos/how-to-

change-tdp-punch-die-tooling

Remove the Tooling

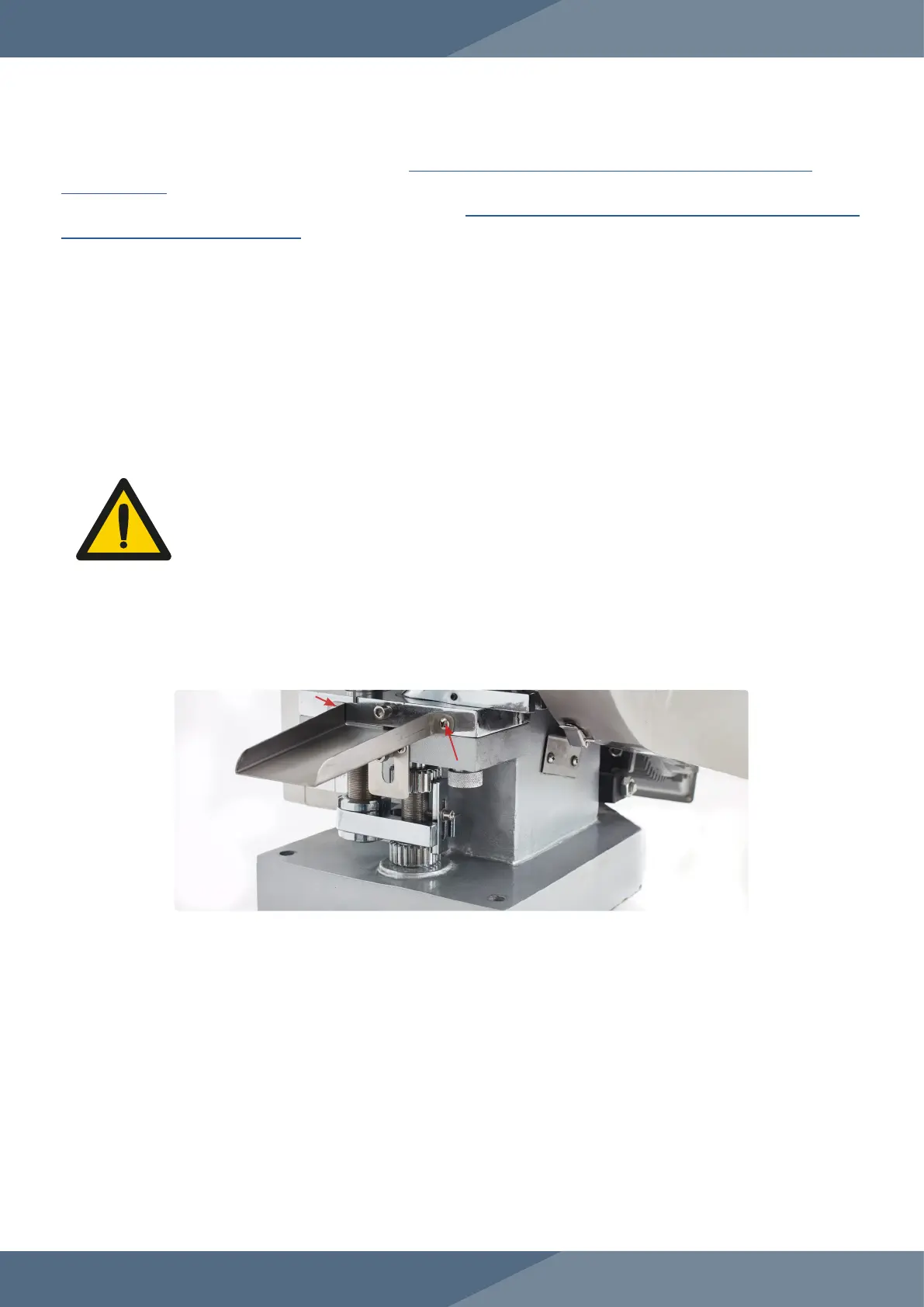

1. Remove the Hopper carefully and catch any powder still inside of it.

2. Remove the Ejection Tray with a crosshead screwdriver.

Instructions

Note: Wear latex/rubber gloves (and appropriate food grade attire if applicable) during this process.

WARNING: To prevent any potential personal injury, ALWAYS unplug the TDP

from the electrical outlet when replacing parts.
