Tooling

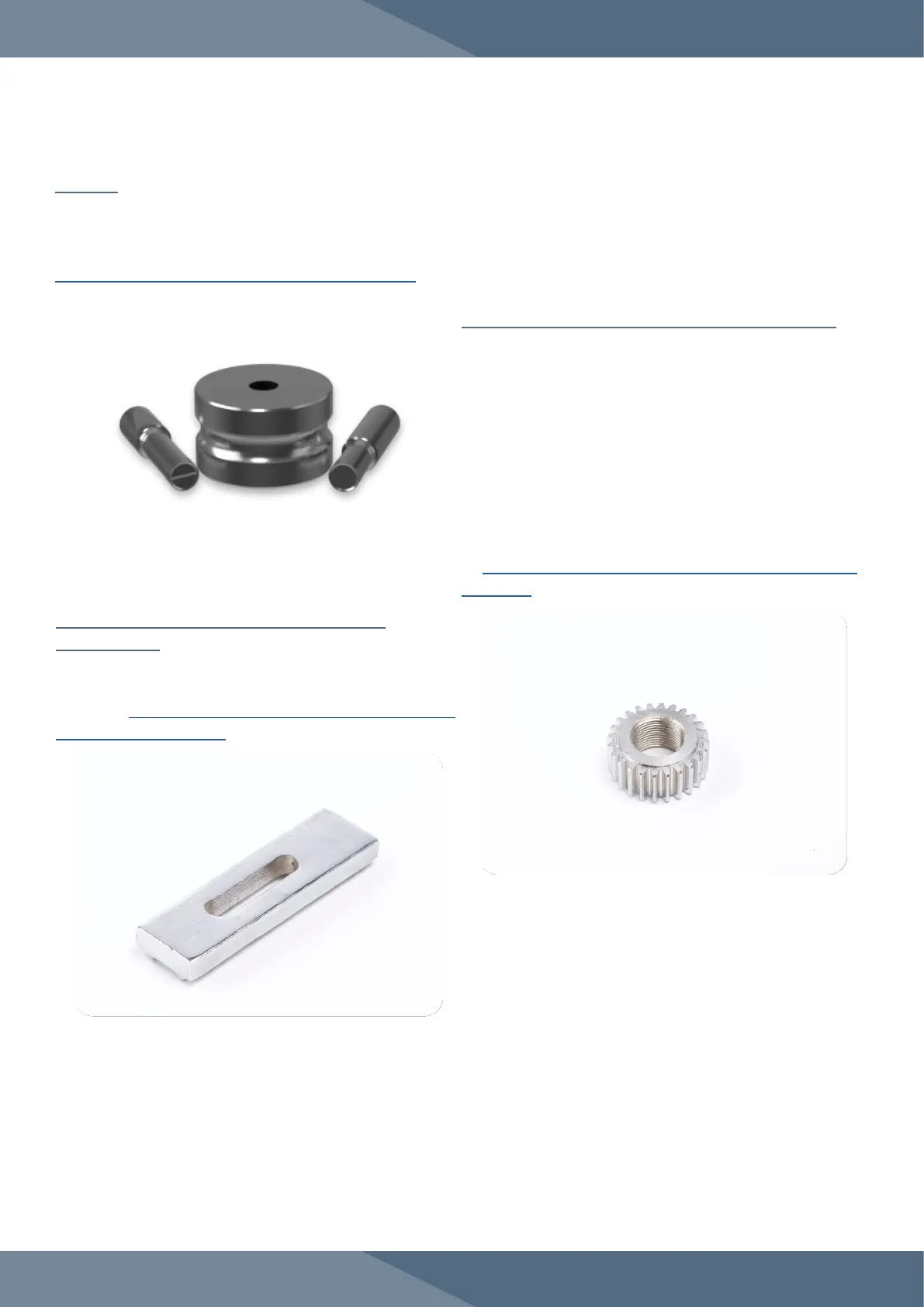

The Tooling consists of the Die, the Upper
Punch, and the Lower Punch. This die set
compresses the powder into the tablet. Order at
https://www.lfatabletpresses.com/tdp-tooling
Lower Drift Pin Assembly Cogs (#AEC0012)
The Lower Drift Pin Assembly Cogs are used
to adjust the tablet’s fill depth and ejection
height. They are located in the Lower Drift Pin
Assembly. The Upper Cog adjusts the ejection
height of the tablet. Turning it counterclockwise
raises the ejection height, and turning it
clockwise lowers it. The Lower Cog increases the
tablet’s fill depth (weight). Turning it clockwise
increases the weight of the tablet, and turning it
counterclockwise decreases the weight. Order
at https://www.lfatabletpresses.com/tdp6s-lower-
pin-cogs
Lower Drift Pin Assembly Locking Bar
(#AEC0013)
The Lower Drift Pin Assembly Locking Bar holds
the Lower Drift Pin Assembly Cogs in place.
Order at https://www.lfatabletpresses.com/tdp6s-
lower-pin-locking-bar
