Boot Timing Bar
This part can become warped from collision, and it is critical to the TDP 6s
®
’s operation. If you
need to replace your TDP 6s
®
’s Boot Timing Bar, the process is quite simple.
Tools and Materials Needed
• Set of metric Allen keys with ball ends
• New Boot Timing Bar part
• Disposable latex/rubber gloves (for food grade products and to protect hands from grease)
• Hairnet and/or beard net (food grade products only)
• Sterile shoe covers (food grade products only)
WARNING: To prevent any potential personal injury, ALWAYS unplug the TDP
6s
®
from the electrical outlet when replacing parts.
Instructions
Note: Wear latex/rubber gloves (and appropriate food grade attire if applicable) during this process.

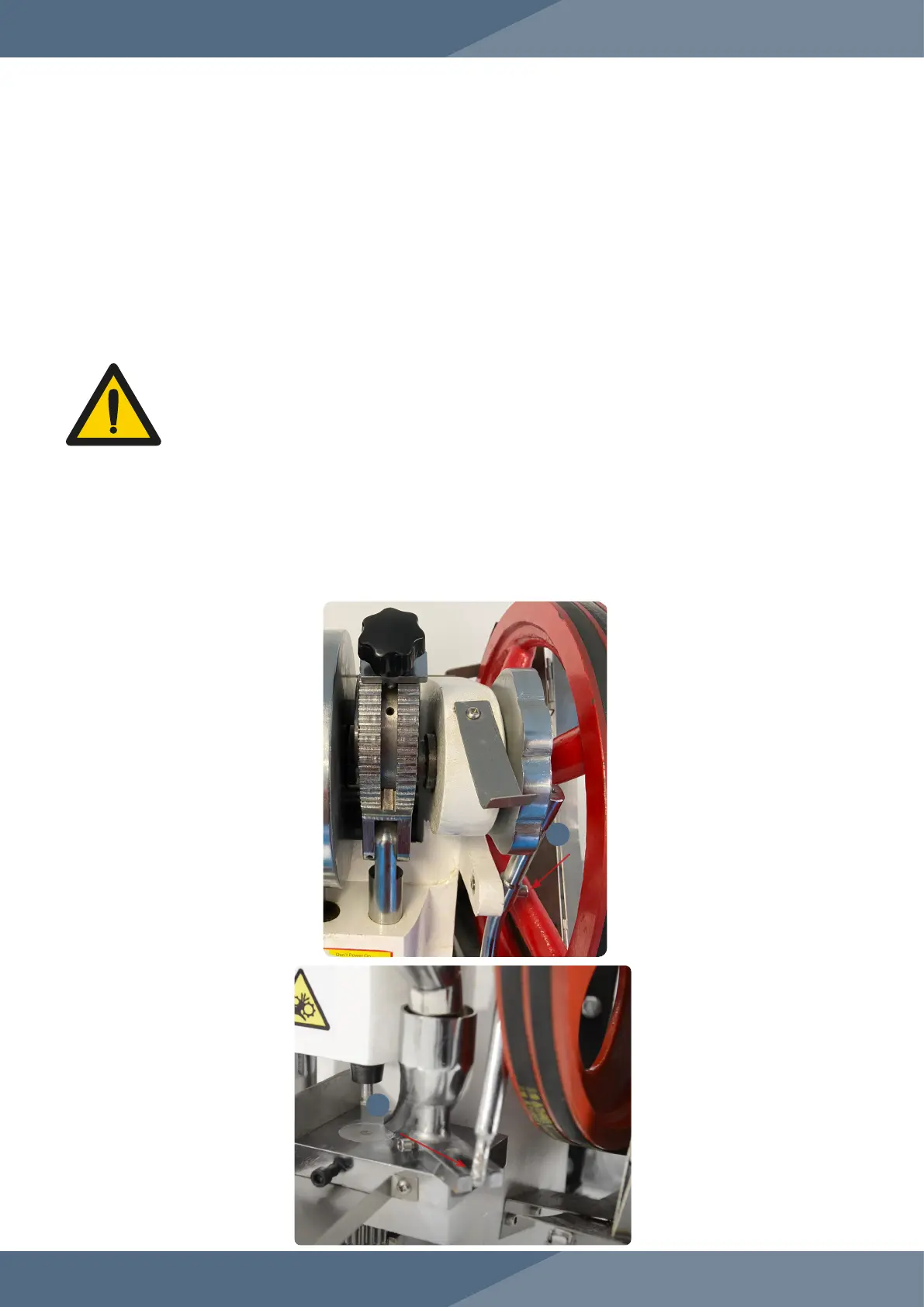

Remove the Boot Timing Bar
1. Remove the Hopper carefully and catch any powder still inside of it.
2. Loosen the Boot Timing Bar bolt with an Allen key.
3. Remove the Boot Timing Bar's end from the Boot.
