23. Reinsert the Base Plate's bolts while the Upper Punch is still inside the Die.
23.1 Note: The Die's set screw can be fully tightened now.
24. Position the Boot back on the Base Plate.
25. Insert the Boot Timing Bar's end in the Boot
26. Resecure the Boot Bolt and Spring underneath the Boot with an Allen key.
27. Tighten the Boot’s set screw with an Allen key.
28. Reattach the Ejection Tray with an Allen key.
29. Reinsert the Hopper.

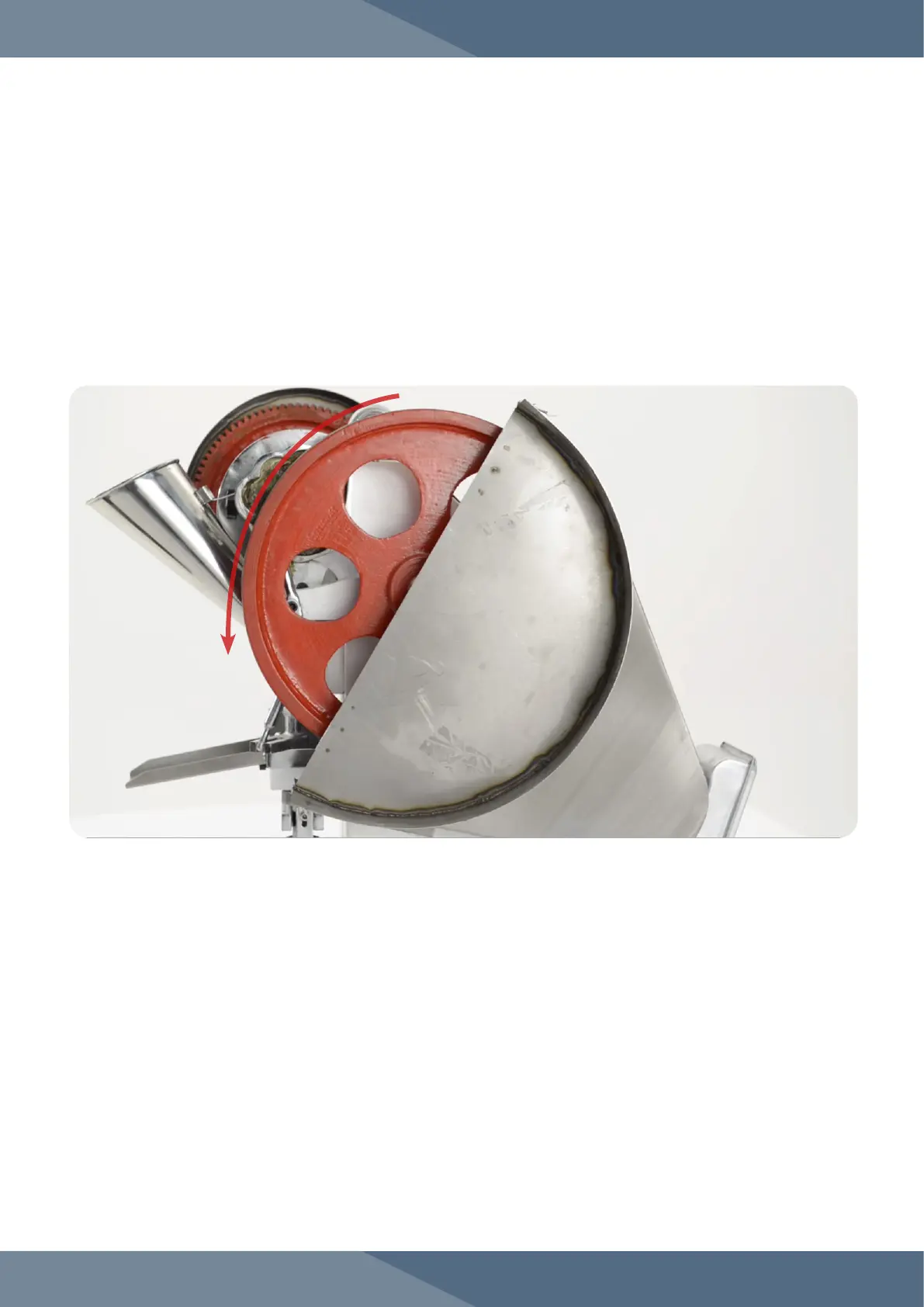

30. Turn the Hand Wheel for one rotation to ensure that the machine runs smoothly before plugging
it in and turning it on.
