LFA TDP 6s - Belts

To Next Page

To Previous Page

V Belts

Tools and Materials Needed

• 19 mm wrench

• Set of new V Belts

• Disposable latex/rubber gloves (for food grade products and to protect hands from grease)

• Hairnet and/or beard net (food grade products only)

• Sterile shoe covers (food grade products only)

Although this part is rugged and long-lasting, after time it may become worn out and requires a

replacement.

Remove the V Belts

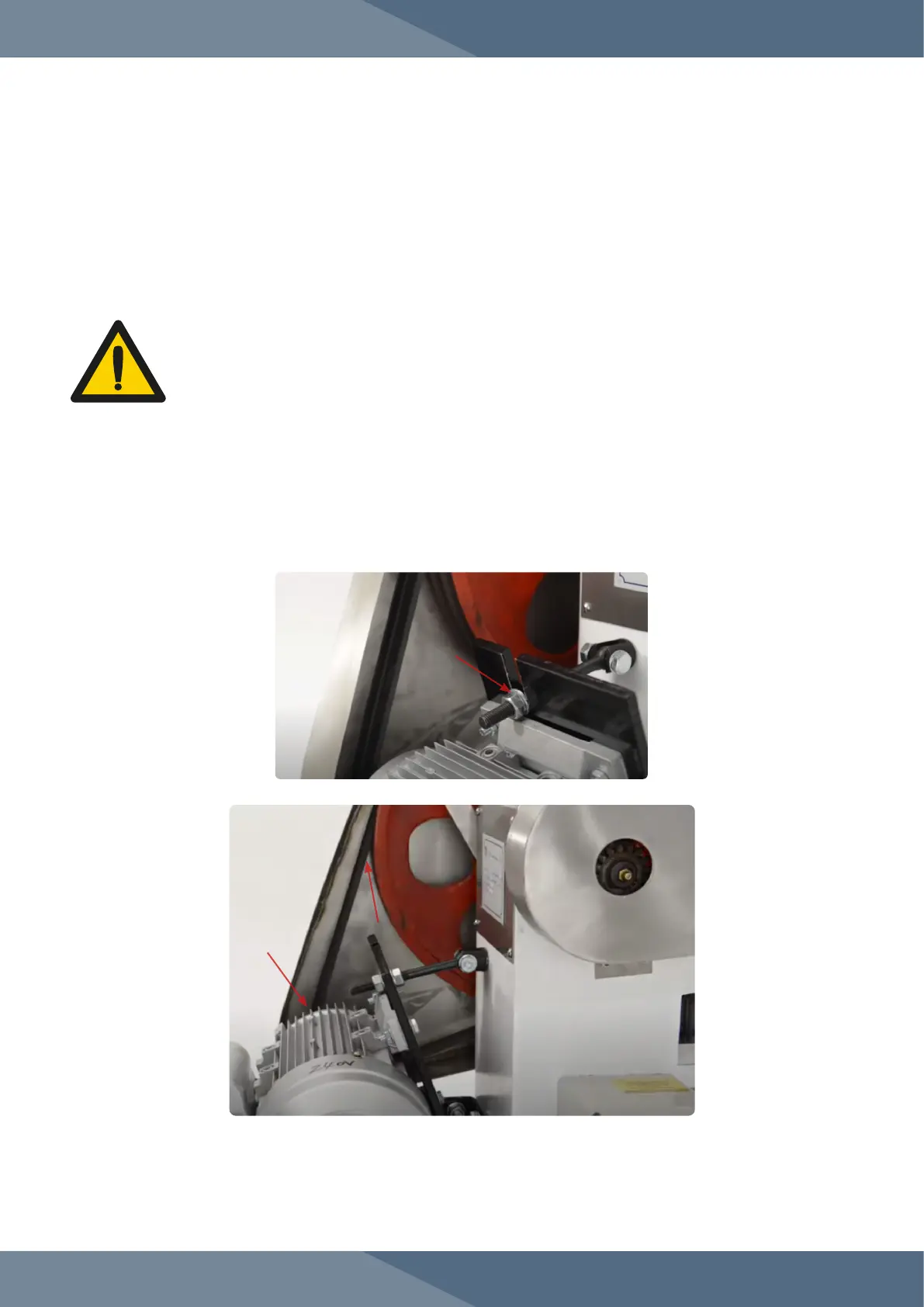

1. Adjust the nuts on the Motor Support Arm with a 19 mm wrench to loosen the V Belts.

1.1 Note: The closer the Motor Mounting Plate is to the TDP 6s

, the looser the V Belts'

slack will be.

Instructions

Note: Wear latex/rubber gloves (and appropriate food grade attire if applicable) during this process.

WARNING: To prevent any potential personal injury, ALWAYS unplug the TDP

6s from the electrical outlet when replacing parts.

2. Remove the V Belts from the Drive Belt Pulley and the Hand Wheel.
