Replace the V Belts

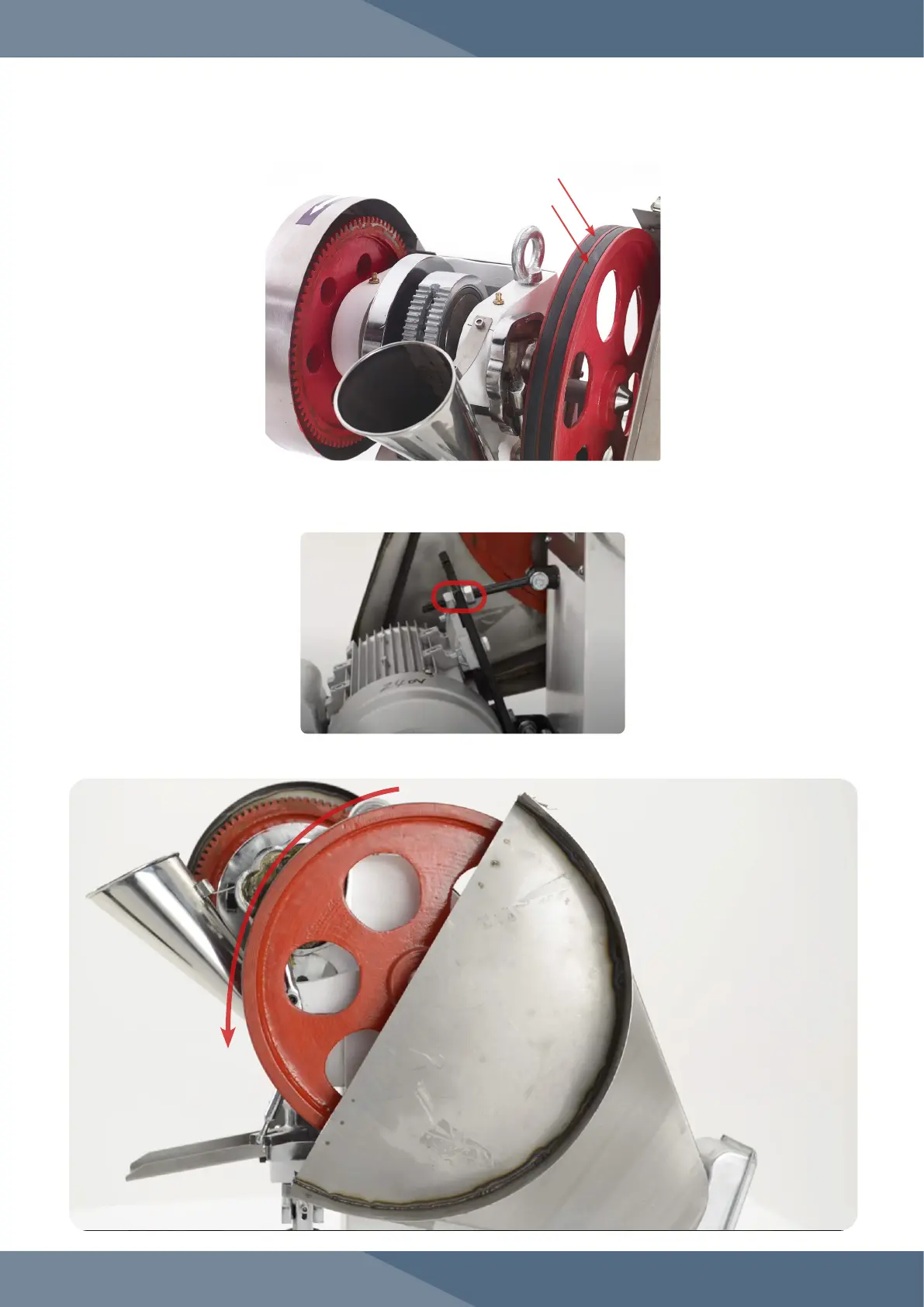

3. Place the new V Belts onto the Drive Belt Pulley and the Hand Wheel.

4. Adjust the nuts on the Motor Support Arm to tighten the V Belts.

4.1 Note: The further away the Motor Mounting Plate is from the TDP 6s

, the tighter the V

Belts' slack will be. The correct tension for new V Belts is [N] 138.71.

5. Turn the Hand Wheel for one rotation to ensure that the machine runs smoothly before

plugging it in and turning it on.
