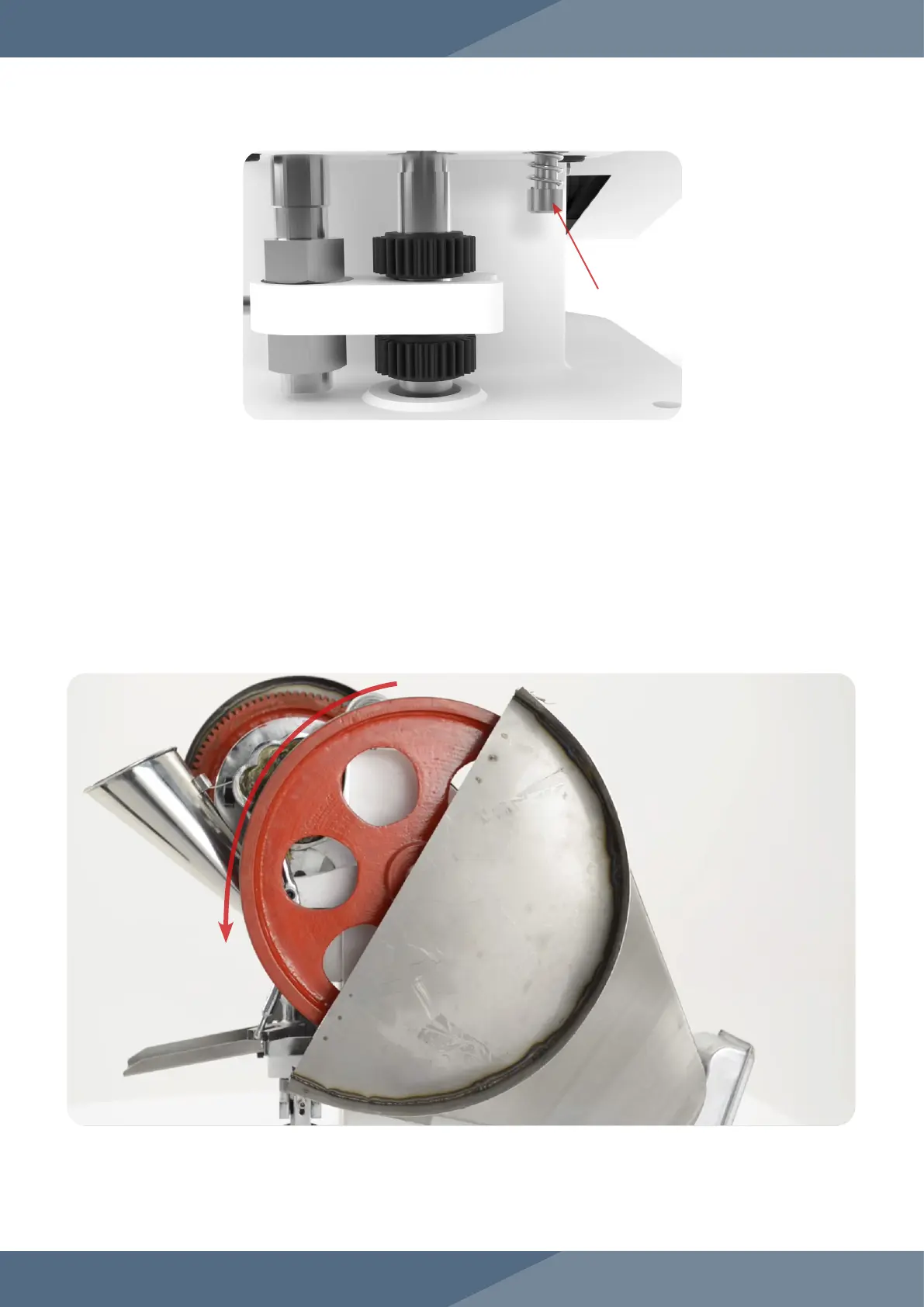

4. Remove the Boot Bolt and Spring underneath the Boot.
5. Take off the Boot carefully and remove any powder still inside it.
Replace the Boot
6. Position the new Boot on the Base Plate.
7. Insert the Boot Timing Bar's end in the new Boot.
8. Resecure the Boot Bolt and Spring underneath the new Boot with an Allen key.
9. Tighten the new Boot’s set screw with an Allen key.
10. Reattach the Ejection Tray with an Allen key.
11. Reinsert the Hopper.
12. Turn the Hand Wheel for one rotation to ensure that the machine runs smoothly before plugging
it in and turning it on.
