34
22. Rotate the Hand Wheel and carefully lower the Upper Punch into the Die.

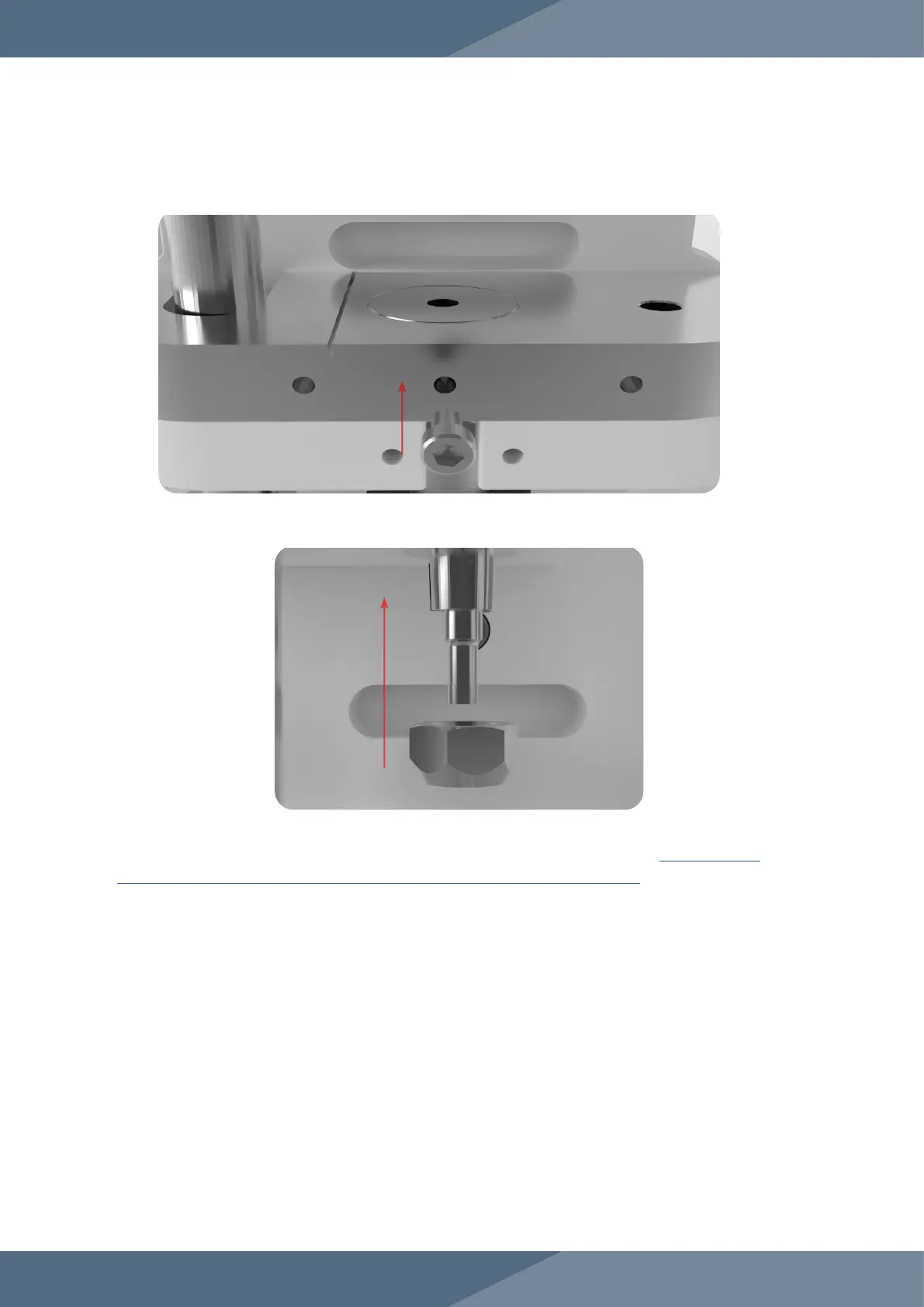

20. Insert the new Upper Punch into the Upper Drift Pin Assembly.
21. Tighten the Upper Punch Locking Nut onto the Upper Drift Pin Assembly with a wrench.
17. Place the Base Plate onto the TDP 6s
®
Base.
18. Insert the new Die into the middle of the Base Plate.
19. Reinsert the set screw that locks the Die with an Allen key.
19.1 Note: Make sure the set screw is not fully tightened.
22.1 Note: To watch a video on proper Base Plate alignment, go to https://www.
lfatabletpresses.com/videos/how-to-align-a-baseplate-on-a-tdp-5
