You can also lubricate any point of traction the TDP 6s

at your own discretion; just be sure not to

over-lubricate.

Cover the TDP 6s

4. Carefully cover the TDP 6s

with the plastic wrapping.

4.1 Note: You can use the plastic wrapping that came with the machine in the shipping

container.

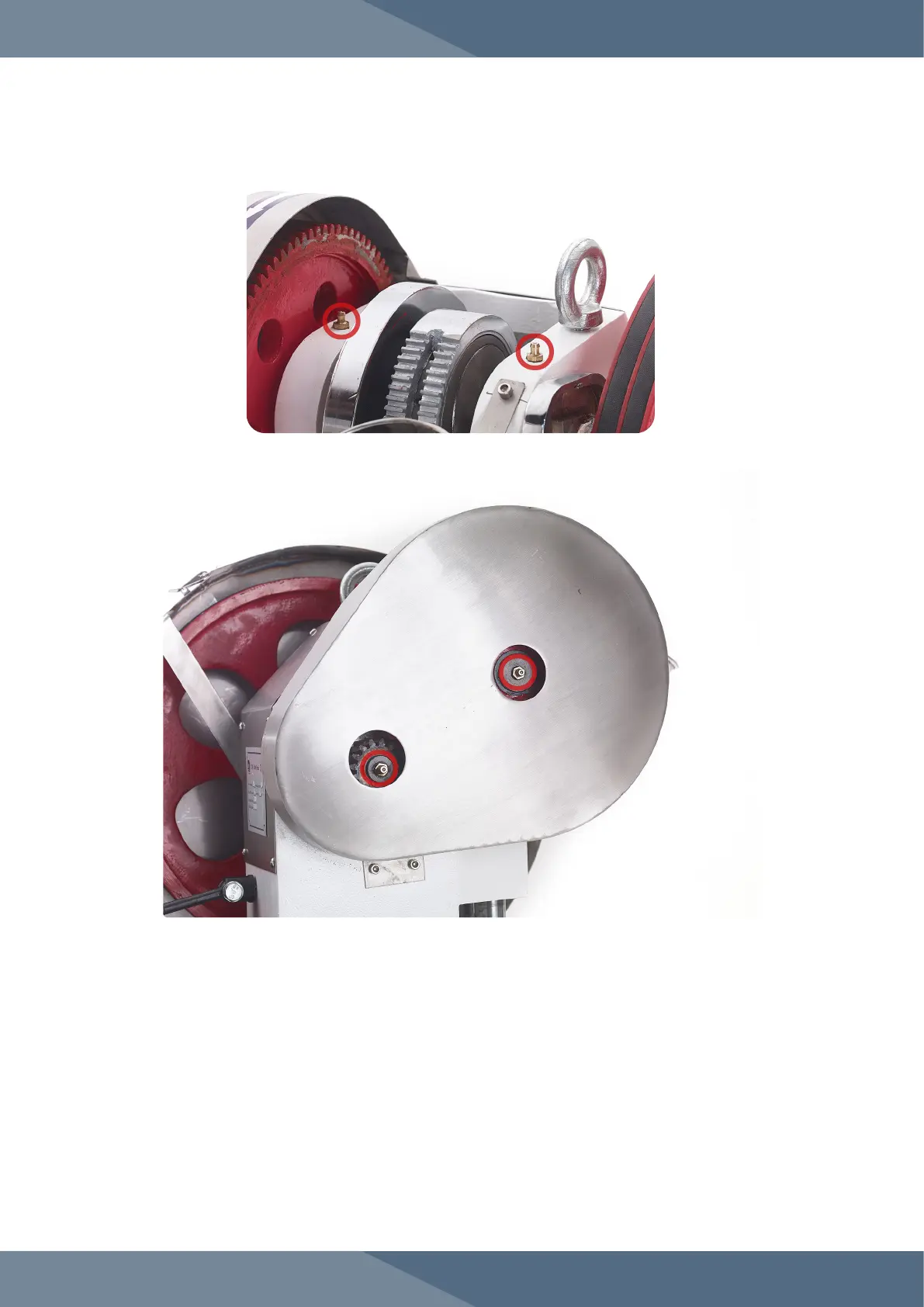

2. Lubricate the Top Cam Drive Shaft's Grease Nipples with the grease gun.

2.1 Note: Rotate the Hand Wheel during this to ensure grease gets in.

3. Lubricate the Cam Drive Cog's Pinion Gear and the Top Cam Drive Shaft Grease Nipples.
